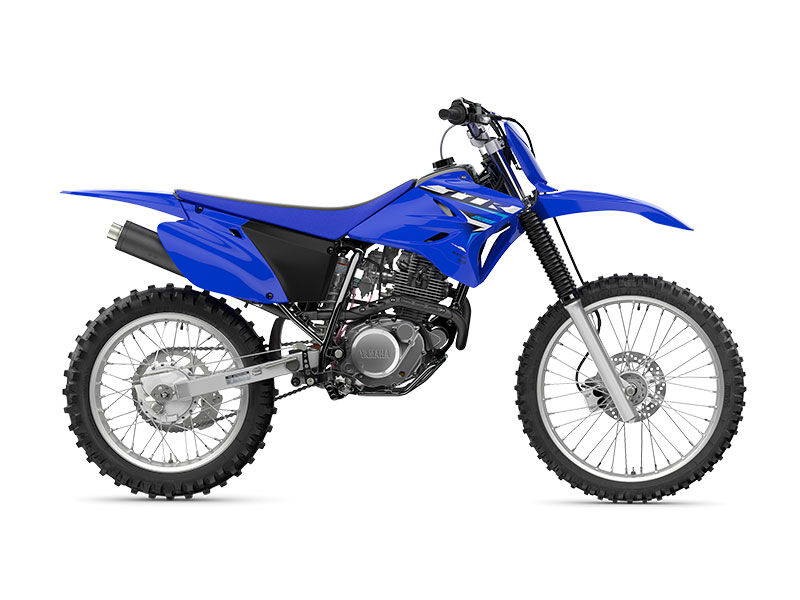

Meet Mr – and Mrs – Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC four-stroke make the TT-R230 a great choice for beginner and intermediate riders.

A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.


  • Engine Type Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
  • Displacement (cc) 223.0
  • Bore x Stroke (mm) 70.0 x 58.0
  • Compression Ratio 9.5 : 1
  • Lubrication System Wet sump
  • Fuel Management Y26P x 1
  • Ignition CDI
  • Starter System Electric
  • Fuel Tank Capacity (L) 8.0
  • Final Transmission Chain
  • Transmission Constant mesh 6-speed
  • Frame Type Diamond
  • Suspension Front Telescopic forks, 240mm travel
  • Suspension Rear Swingarm (link suspension), 220mm travel
  • Brakes Front Hydraulic single disc, 220mm
  • Brakes Rear Drum
  • Tyres Front 80/100-21 51R Tube type
  • Tyres Rear 100/100-18 59R Tube type
  • Length (mm) 2065
  • Width (mm) 800
  • Height (mm) 1180
  • Seat Height (mm) 870
  • Wheelbase (mm) 1385
  • Ground Clearance (mm) 295
  • Wet Weight (kg) 114
