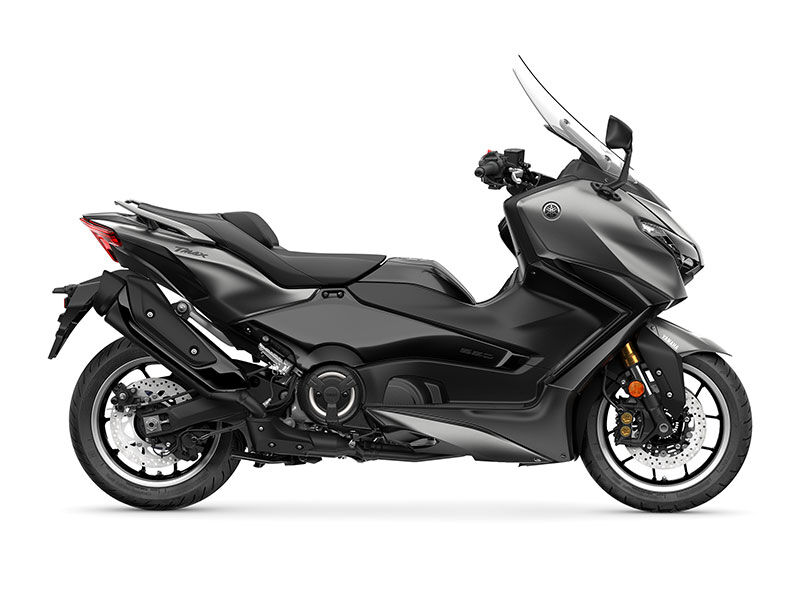

TMAX Tech MAX is Yamaha’s premium large capacity Sport Scooter with all the features of the TMAX plus more, making it an ideal choice for riders who are looking for the ultimate multi-role high-performance model. Equipped with dynamic dual-eye headlights and sleeker front bodywork, this iconic machine delivers a riding experience beyond compare.

Its powerful 560cc engine and refined automatic transmission make this Yamaha’s fastest and smoothest Sport Scooter. The motorcycle-type aluminium chassis and adjustable suspension provide precision handling. And for supreme comfort the TMAX Tech MAX comes with a luxury heated seat, heated grips and an electronically adjustable screen.

  • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve
  • Displacement (cc) 562.0
  • Bore x Stroke (mm) 70.0 x 73.0
  • Compression Ratio 10.9 : 1
  • Lubrication System Dry Sump
  • Fuel Management Fuel Injection
  • Ignition TCI
  • Starter System Electric
  • Fuel Tank Capacity (L) 15.0
  • Final Transmission Belt
  • Transmission V-Belt Automatic
  • Frame Type Aluminium CF die-cast
  • Suspension Front Telescopic forks, 120mm travel
  • Suspension Rear Swingarm, 117mm travel
  • Brakes Front Hydraulic dual discs, 267mm - ABS
  • Brakes Rear Hydraulic single disc, 282mm - ABS
  • Tyres Front 120/70R15M/C 56H Tubeless
  • Tyres Rear 160/60R15M/C 67H Tubeless
  • Length (mm)2195
  • Width (mm)780
  • Height (mm)1415 / 1525
  • Seat Height (mm)800
  • Wheelbase (mm)1575
  • Ground Clearance (mm)135
  • Wet Weight (kg)221
