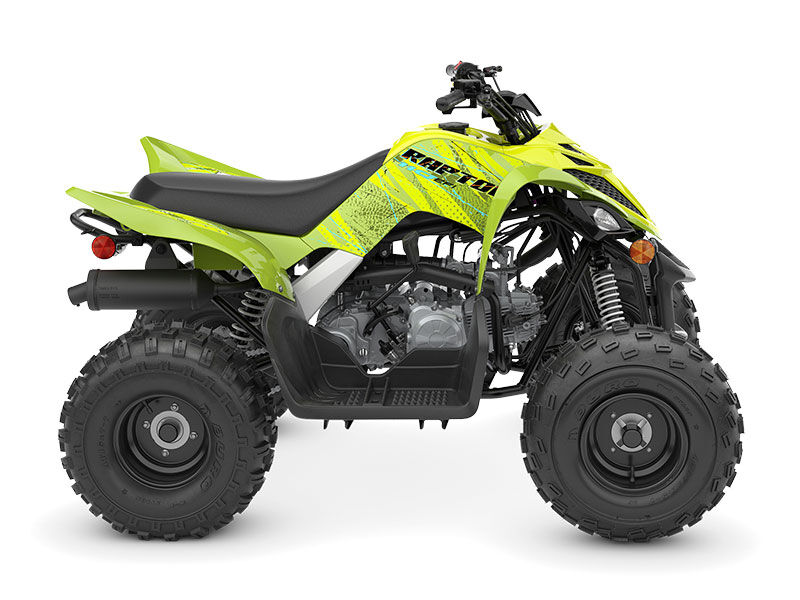

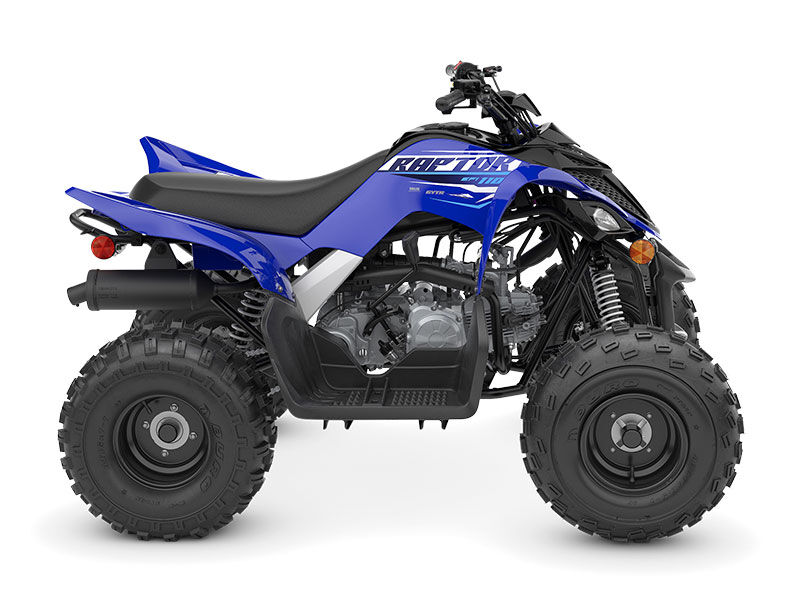

The Raptor 110 is built to bring maximum fun to ATV riders ages 10 and up. A fuel-injected 112cc air-cooled SOHC 4-stroke engine is tuned to develop excellent low- to mid-range performance. A fully automatic CVT transmission with reverse, a gated shifter, and electric start all come standard.

Designed based on the top-selling Raptor 700R, this entry-level ATV brings Yamaha's Proven Off-Road sport ATV performance, legacy, and quality to new riders as they develop their skills and embrace their passion for motorsports.

  • Engine Type Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
  • Displacement (cc)112
  • Bore x Stroke (mm)52.4 x 51.8
  • Compression Ratio9.2 : 1
  • Lubrication System Wet sump
  • Fuel Management Fuel Injection
  • Ignition TCI
  • Starter System Electric
  • Fuel Tank Capacity (L)6.8
  • Final Transmission Chain
  • Transmission V-belt automatic, F, N, R
  • Frame Type Steel tube
  • Suspension Front Single A-arm, 127mm travel
  • Suspension Rear Swingarm, 145mm travel
  • Brakes Front Dual drums
  • Brakes Rear Drum
  • Tyres Front AT18 x 7-8
  • Tyres Rear AT18 x 9-8
  • Length (mm)1485
  • Width (mm)1020
  • Height (mm)991
  • Seat Height (mm)750
  • Wheelbase (mm)1030
  • Ground Clearance (mm)210
  • Wet Weight (kg)130.4
