Built for Cyclists by Cyclists

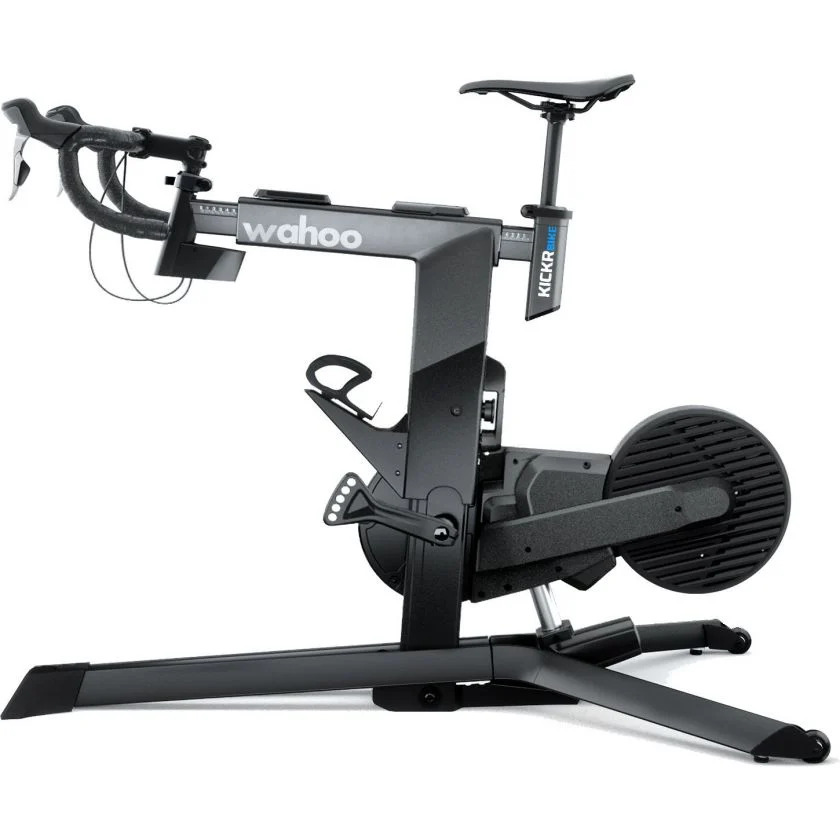

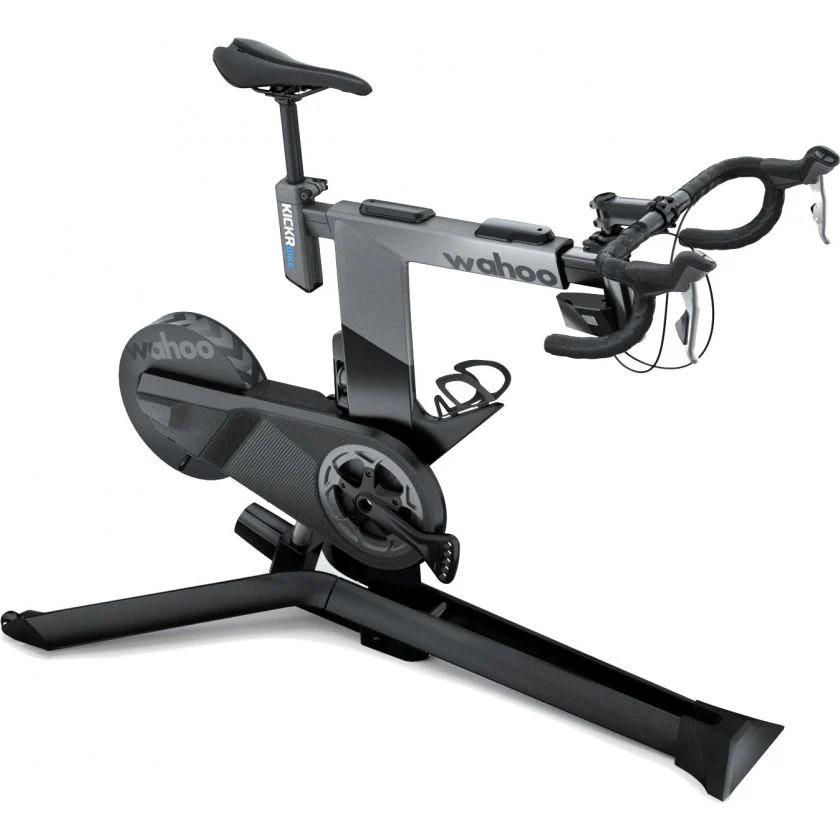

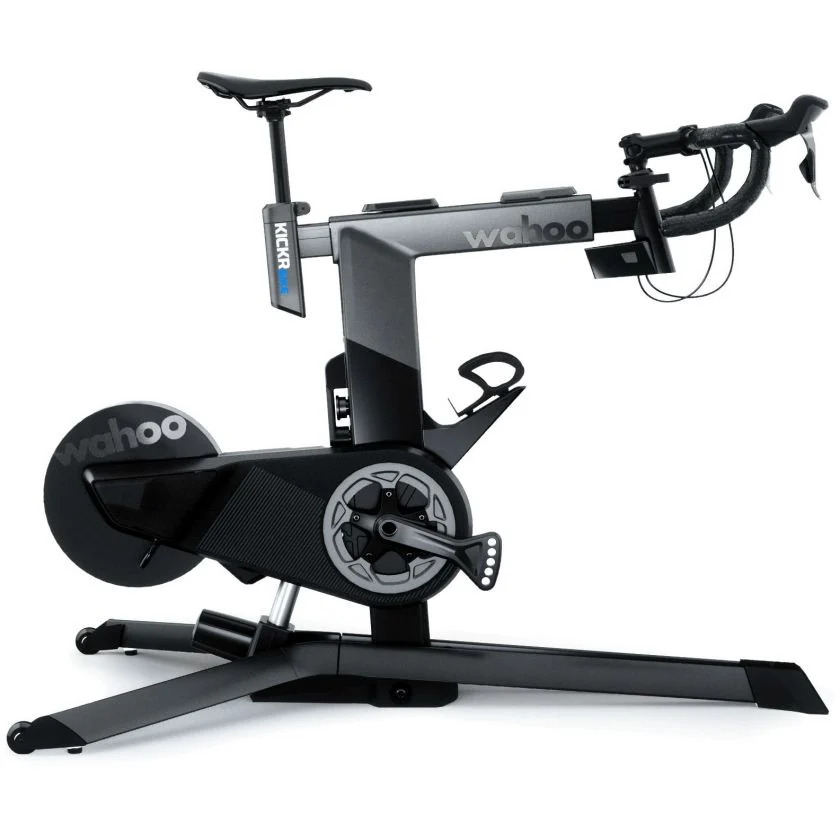

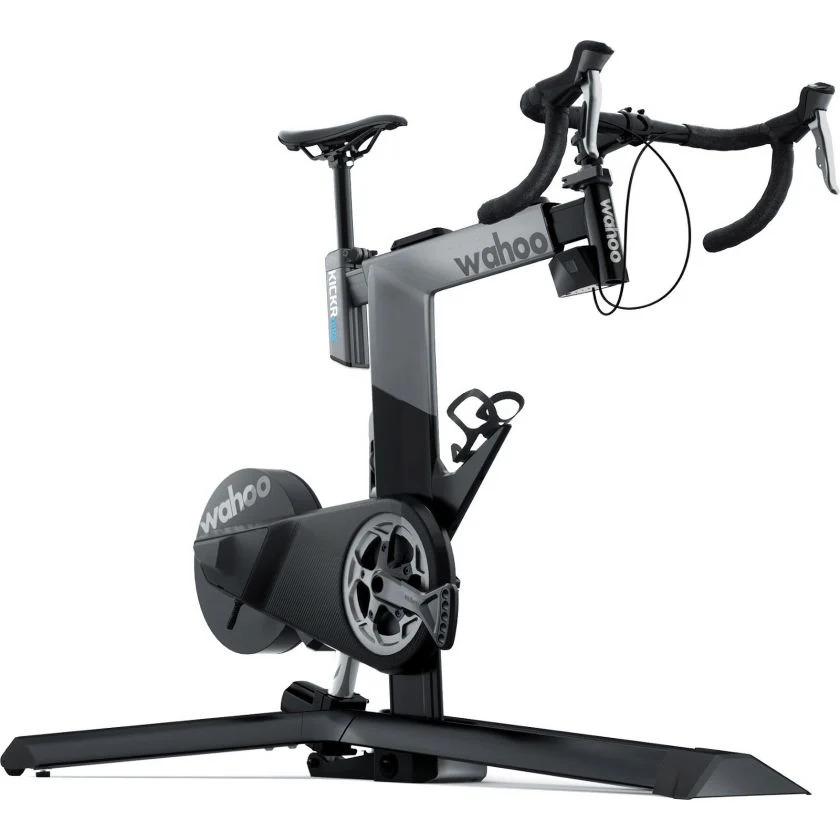

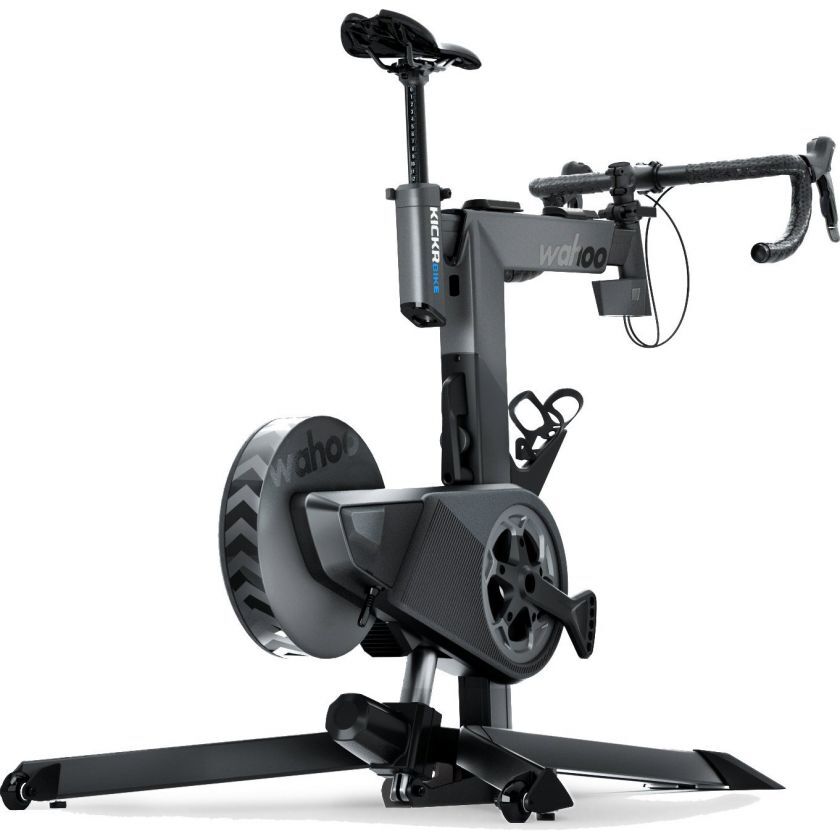

This Wahoo KICKR Bike offers unprecedented innovations such as integrated grade changes, customisable gearing, and simulated shifting to create the most powerful, personalized, and realistic indoor training experience. Using KICKR’s legendary flywheel technology, the KICKR BIKE creates unparalleled responsiveness and power accuracy of +/- 1%. Real-time grade changes will match ascents of up to 20% and descents of -15% while allowing you to maintain speed and truly replicate the sensation of riding outdoors. Its robust steel and aluminium construction will withstand the hardest rides even if your legs don’t.

Customize, Adjust and Connect it’s That Simple

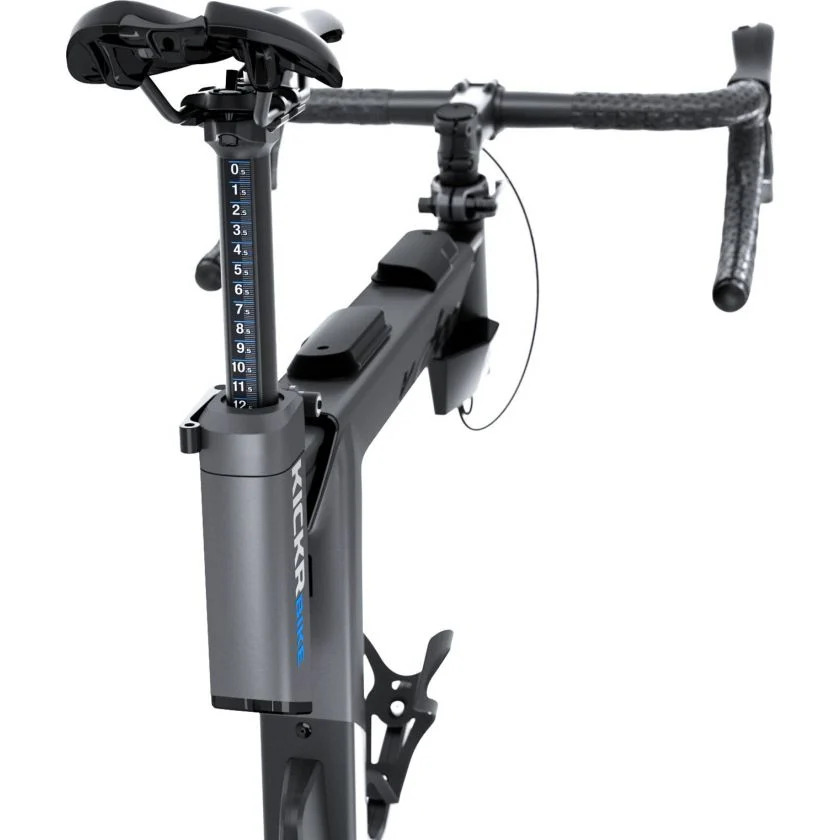

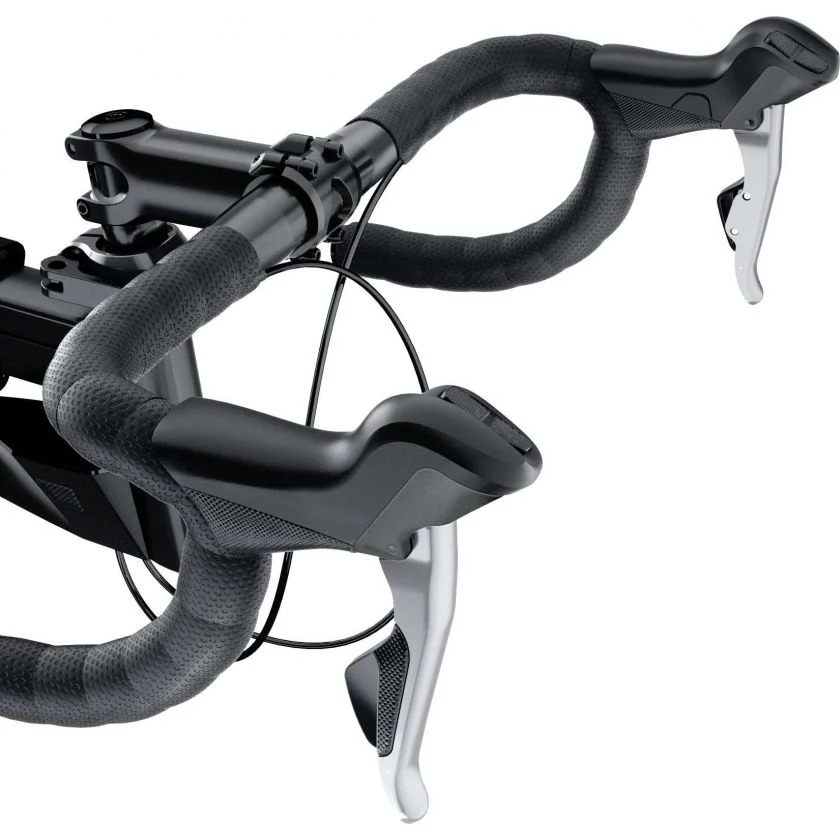

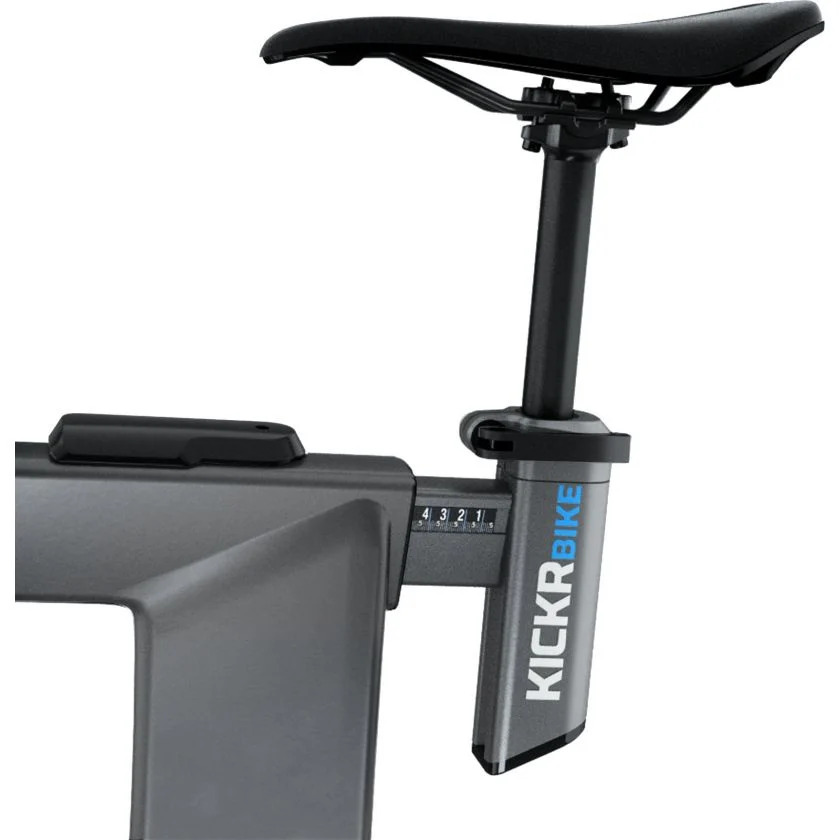

The Wahoo Fitness app will guide you through an easy set-up of the five points of adjustability on the KICKR BIKE. Choose from either using professional bike fit measurements, taking a photo to measure your bike, or entering body measurements to personalize the fit to the exact geometry of your outdoor bike. The KICKR BIKE can also be customized with your own handlebars, pedals, and saddle. The virtual shifting technology of the KICKR BIKE is programmable to match the exact gear ratios, number of speeds, cassette tooth count, and group set from the leading manufacturers SRAM, Shimano, and Campagnolo. A digital display clearly communicates both gearing and grade, so you always know where you are during every stage of the ride.

Integration and Pairing Made Easy
The Wahoo KICKR Bike seamlessly integrates with other Wahoo products and easily pairs to your ELEMNT GPS bike computer, smartphone, tablet, or PC. As with all Wahoo smart trainers, KICKR BIKE is compatible with the most popular training apps such as The Sufferfest, Zwift, TrainerRoad and more! KICKR BIKE is not only a smart bike it’s a training machine that blurs the line between virtual and reality.

Geometry and User Size
• Footprint (Length x Width): 48 in x 30 in (121cm x 76cm)
• Standover Height Range: 37 in to 47 in (95cm to 119cm)
• Maximum User Height: 6 ft 4 in (192cm)
• Minimum User Height: 5 ft (152cm)

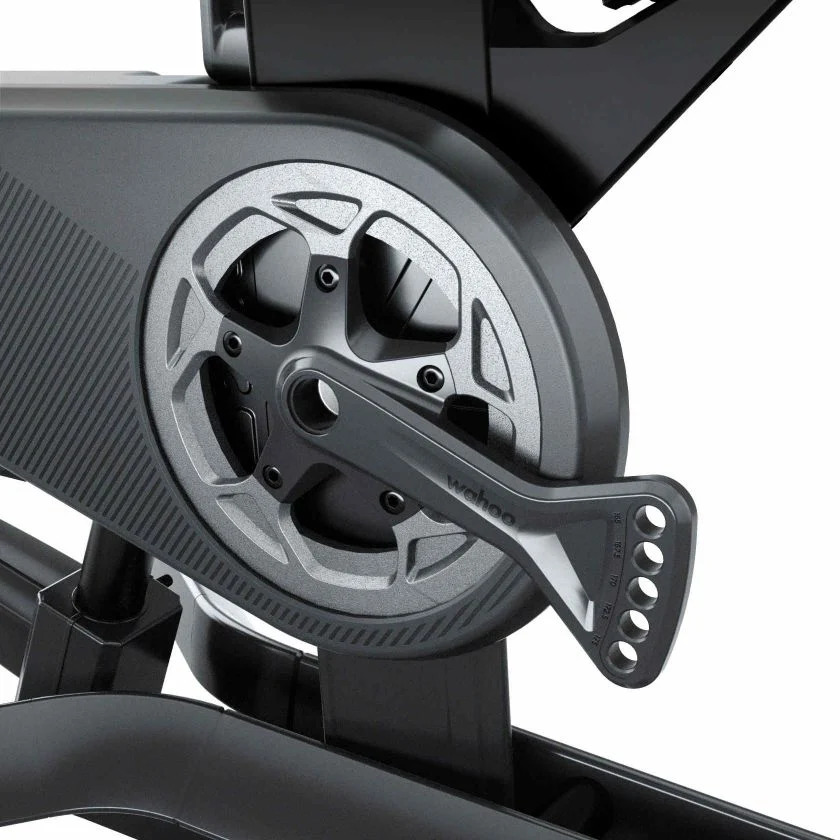

• Crank Lengths: 165mm, 167.5mm, 170mm, 172.5mm, 175mm

Technology and Data
• Wireless Technology
• ANT+®, BLUETOOTH® Low Energy, and ANT+ FE-C
• Device Control: iOS, Android, and PC (Mac and Windows)
• Resistance Type: Electromagnetic and Enhanced Motor
• Accuracy: + / - 1%
• Wireless Firmware Updates: Yes
• 3rd Party Power Meter Compatibility: No
• Metrics: Speed, Distance, Power, Cadence, Grade

• Maximum Power Wattage: 2200W
• Maximum Incline: 20%
• Minimum Decline: -15%
• Flywheel Weight: 13 lbs plus enhanced motor
• Total Weight: 93 lbs/42 kilograms
• Electrical Connection: 100-240v power cord
• Shipping Dimensions: 54" x 14" x 35" (1350 x 340 x 880mm)
• Drivetrain: Belt Drive
• Resistance Type: Electromagnetic and enhanced motor
• Wireless Software Updates: Yes, via the Wahoo Fitness app
• Connectivity: ANT+ FEC and Bluetooth
• Device Compatibility: iOS, Android, PC (Mac and Windows)
• Power Requirements: 100-240V, 50/60 Hz, 2.5A Max
• Flywheel Weight: 13 lbs (5.89 kg) plus enhanced motor

Rider Weight and Height Ranges
• User Height Range: 152cm to 193cm
• Max User Weight: 250lbs (113kg)

Additional Features
• LED Indicator Lights: BLUETOOTH® Low Energy and ANT+®
• KICKR HEADWIND Compatible: Yes
• ELEMNT GPS Bike Computer Compatible: Yes
• Construction: Steel and Aluminium
• Controlled Resistance: Yes

What’s in The Box
• AC Power Adapter
• Allen Wrenches
• Platform Pedals
• Handlebar Assembly
• Seatpost and Saddle Assembly
