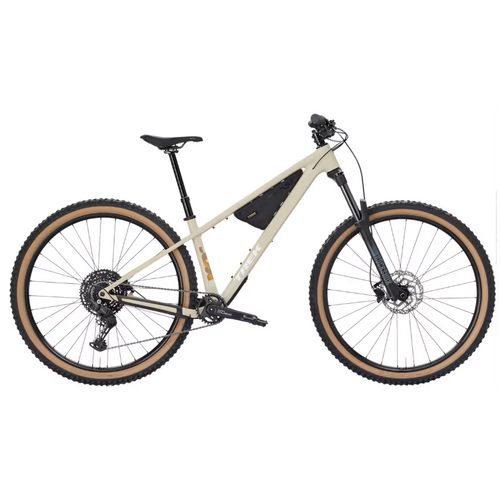

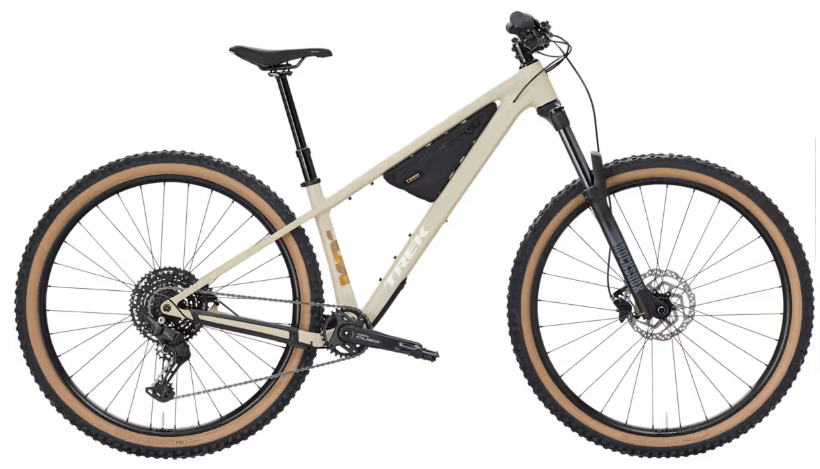

Roscoe 7 is a wild and playful hardtail that’s ready to rip anywhere from rowdy singletrack to dirt jumps. Its Alpha Platinum Aluminium frame pairs capable geometry with a RockShox Recon Silver fork (150 mm travel) for gobbling up rocks, while a 10-speed Shimano CUES drivetrain provides low-maintenance, clean shifting. It’s finished with 2-piston Shimano MT200 hydraulic disc brakes for stopping power that doesn’t break the bank.



Frame

Alpha Platinum Aluminium, tapered head tube, ZS headset, internal derailleur and dropper post routing, ISCG 05, threaded BB, UDH, 148x12 mm thru axle

Fork

RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

Hub front

Shimano TC500 alloy, CentreLock, 110x15 mm thru axle

Hub rear

Shimano TC500 alloy, CentreLock, 148x12 mm thru axle

Skewer rear

Bontrager Switch thru axle, removable lever

*Rim
Size: S, M, ML, L, XL

Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve

Size: S, M, ML, L, XL

Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve

*Tyre
Size: S

Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40"

Size: M, ML, L, XL

Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"

Rim strip

Bontrager TLR

Max tyre size
Frame: 29x2.60", Fork: See manufacturer

Shifter

Shimano U6000, 10-speed

Rear derailleur

Shimano CUES U6000 GS

Crank

Shimano CUES U6000, 30T, 55 mm chain line, 170 mm length

Bottom bracket

Shimano BB-MT501 BSA

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Chain

Shimano LG500

Pedal

VP-536 nylon platform

Max. chainring size
1x: 34T, min 28T

Saddle

Bontrager Verse P3, steel rails

*Seatpost
Size: S

TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length

Size: M, ML

TranzX JD-YSI34, 170mm travel, internal routing, 31.6 mm, 500mm length

Size: L, XL

TranzX JD-YSI34, 200mm travel, internal routing, 31.6 mm, 565mm length

*Handlebar
Size: S

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Size: M, ML, L, XL

Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width

Grips

Trek Line Comp, nylon lock-on

*Stem
Size: S

Bontrager Comp, 31.8 mm, 7-degree, 35 mm length

Size: M, ML, L, XL

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Head set

FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown

Brake

Shimano MT200 hydraulic disc

Brake rotor

Shimano RT10, CenterLock, 180 mm

Brake Set

Shimano MT200 hydraulic disc

Rotor size
Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer

Weight
M – 14.53 kg/32.04 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
