E-bike Warning. Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

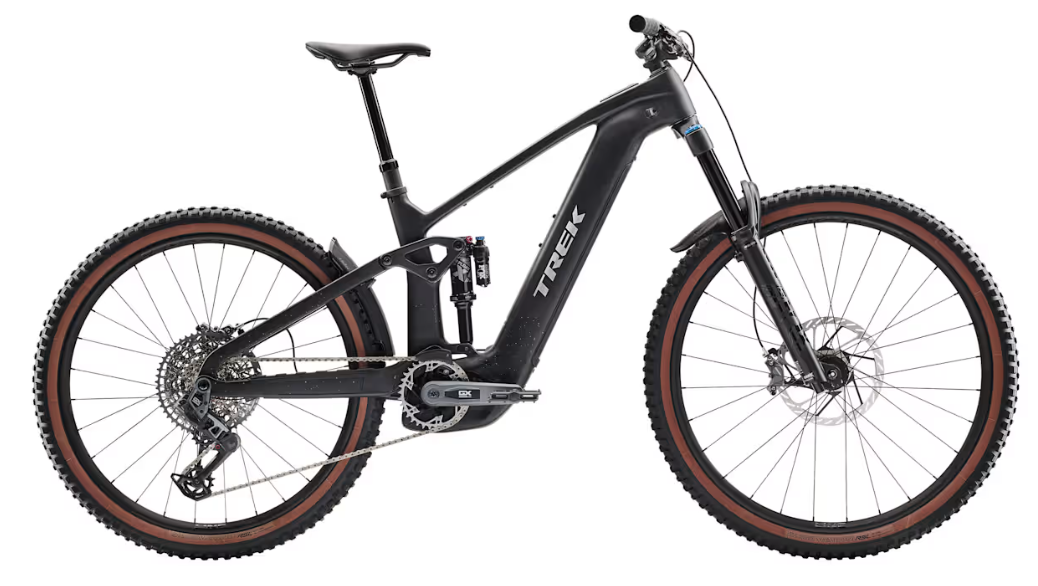

The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps. It starts out with a hard-hitting OCLV Mountain Carbon frame that partners with 160 mm of front and rear travel from a Fox Performance Elite suspension package to eat up deep roots and chunky rock lines. A 12-speed wireless SRAM GX Eagle transmission keeps shifting smooth, even under serious load, while SRAM Maven Bronze 4-piston brakes provide the stopping power you need. It's finished off with a Bontrager Line dropper post and Bontrager Line Comp 30 tubeless-ready wheels for charging into anything.



Frame

OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel

Fork

Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel

Shock

Fox Performance Elite Float X, 2-position damper, 205mm x 65mm

*Wheel front

Size: S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"

Size: M, L, XL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

Wheel rear

Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5"

Skewer rear

Bontrager Switch thru axle, removable lever

*Tyre
Size: S, M, L, XL

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"

Size: M, L, XL

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tyre size
Frame: 27.5x2.60", Fork: See manufacturer

Battery

Bosch PowerTube 800 Wh, smart system

Charger

Bosch standard 4A, 230V, smart system

Controller

Bosch Kiox 400C, mini remote

Motor

Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)

E-bike Classification
Class 1

Shifter

SRAM AXS POD

Rear derailleur

SRAM GX Eagle AXS, T-Type

Crank

SRAM GX, 160 mm length

Chainring

SRAM T-Type, 34T, steel

Cassette

SRAM Eagle XS-1275, T-Type,10-52, 12-speed

Chain

SRAM GX Eagle, T-Type, 12-speed

Pedal

VP-536 nylon platform

Max. chainring size
1x: 36T

Saddle

Verse Short Comp, steel rails, 145 mm width

*Seatpost

Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length

Size: M, L, XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length

Size: L, XL
Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length

Handlebar

Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width

Grips

Bontrager XR Trail Elite, nylon lock-on

Stem

Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length

Head set

Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible

Brake

SRAM Maven Bronze 4-piston hydraulic disc

*Brake rotor
Size: S, M, L, XL

SRAM HS2, 6-bolt, 220mm

Size: S, M, L, XL
SRAM HS2, 6-bolt, 200mm

Rotor size
Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer

Mudguard

Trek custom mudguard

Weight
M – 24.18 kg/53.31 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
