E-Bike Warning. Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

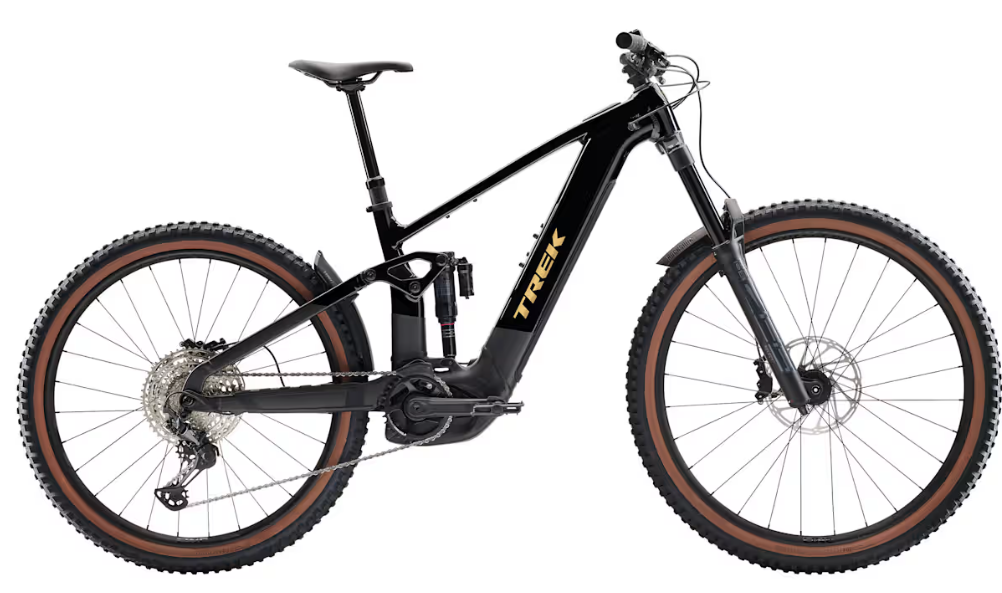

The Rail+ 8 is an aluminium enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminium frame paired with a RockShox Super Deluxe+ shock and ZEB Select fork (160 mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post and tubeless-ready Bontrager Line TLR 30 wheels.

Frame

Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel

Fork

RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel

Shock

RockShox Super Deluxe Select RT, 205mm x 65mm

*Wheel front

Size: S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"

Size: M, L, XL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

Wheel rear

Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle, 27.5"

Skewer rear

Bontrager Switch thru axle, removable lever

*Tyre
Size: S, M, L, XL

Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"

Size: M, L, XL

Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Max tyre size
Frame: 27.5x2.60", Fork: See manufacturer

Battery

Bosch PowerTube 800 Wh, smart system

Charger

Bosch standard 4A, 230V, smart system

Controller

Bosch Kiox 400C, mini remote

Motor

Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)

E-bike Classification
Class 1

Shifter

Shimano SLX M7100, 12-speed

Rear derailleur

Shimano XT M8100, long cage

Crank arm

E*thirteen E*spec Plus, 160 mm length

Cassette

Shimano Deore M6100, 10-51, 12-speed

Chain

Shimano SLX M7100, 12-speed

Pedal

VP-536 nylon platform

Max. chainring size
1x: 36T

Saddle

Bontrager Verse P3, steel rails

*Seatpost

Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length

Size: M, L, XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length

Size: L, XL
Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length

Handlebar

Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width

Grips

Bontrager XR Trail Comp, nylon lock-on

Stem

Bontrager Elite, 35 mm, 0-degree, 45 mm length

Head set

Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible

Brake

SRAM DB 8 4-piston hydraulic disc

Brake rotor

SRAM CentreLine, 6-bolt, round-edge, 200 mm

Rotor size
Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer

Mudguard

Trek custom mudguard

Weight
M – 25.08 kg/55.3 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
