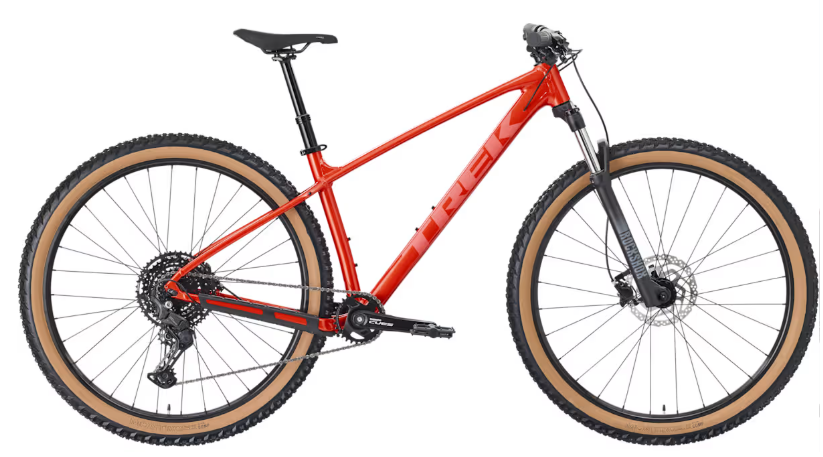

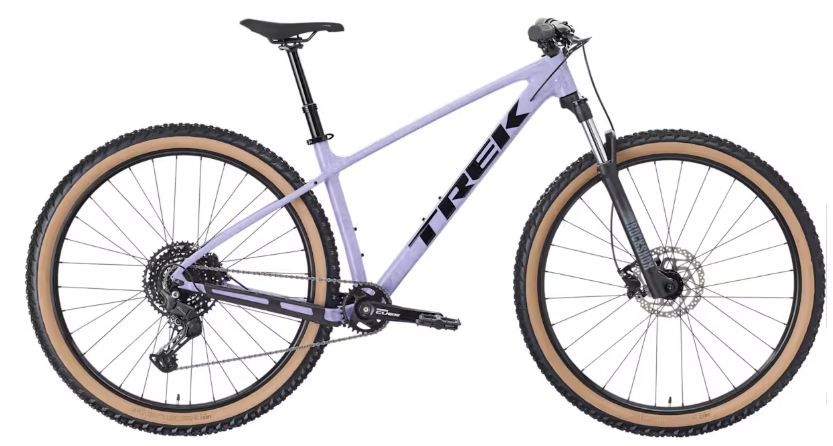

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.



*Frame
Size: XS

Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

Size: S , M , ML , L , XL

Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

*Fork
Size: XS , S

RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel

Size: M , ML , L , XL

RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Hub front

Formula DC-20, alloy, 6-bolt, 100 mm

Skewer front

116x5mm QR

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm

Skewer rear

173x5 mm QR

*Rim
Size: XS , S , M , ML , L , XL

Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

Size: M , ML , L , XL

Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve

*Tyre
Size: XS , S

Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35''

Size: XS , S

Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"

Size: M , ML , L , XL

Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"

Size: M , ML , L , XL

Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35"

Rim strip

Bontrager TLR

Shifter

Shimano U6000, 10-speed

Rear derailleur

Shimano CUES U6000 GS

*Crank
Size: XS , S , M , ML

Shimano U4000, 30T chainring, 170 mm length

Size: L , XL

Shimano U4000, 30T chainring, 175 mm length

Bottom bracket

Shimano, 73 mm, threaded cartridge, 122.5 mm spindle

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Chain

Shimano LG500

Pedal

VP-536 nylon platform

Saddle

Bontrager Verse Short, stainless steel rails

*Seatpost
Size: XS , S

TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length

Size: M

TranzX JD-YSI34, 125 mm travel, internal routing, 31.6 mm, 405 mm length

Size: ML , L , XL

TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length

*Handlebar
Size: XS

Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width

Size: S

Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width

Size: M , ML , L , XL

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Trek Line Comp, nylon lock-on

*Stem
Size: XS , S

Bontrager Comp, 31.8 mm, 7-degree, 35 mm length

Size: M , ML , L

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length

Head set

Semi-integrated, 1-1/8"

Brake

Shimano MT200 hydraulic disc

*Brake rotor
Size: XS , S , M , ML , L , XL

Shimano RT26, 6-bolt, 160 mm

Size: M , ML , L , XL

Shimano RT26, 6-bolt, 180 mm

Brake Set

Shimano MT200 hydraulic disc

Weight
M - 15.00 kg / 33.07 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
