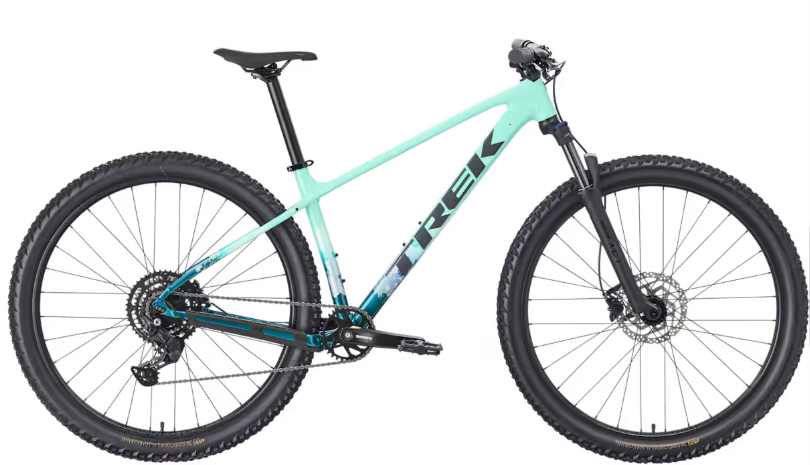

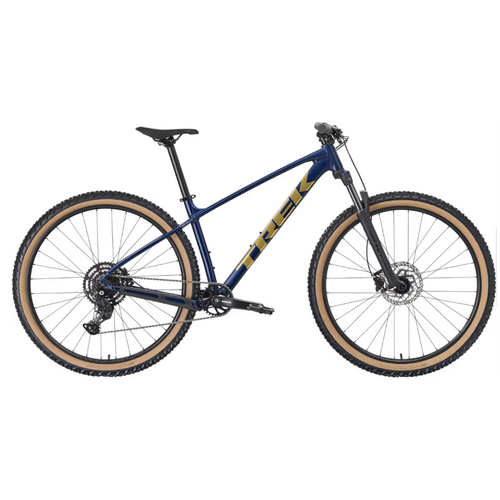

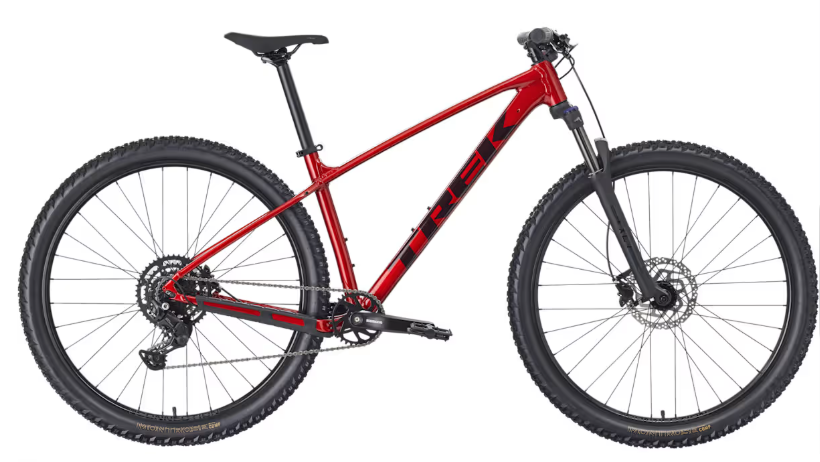

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

*Frame
Size: XS

Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

Size: S , M , ML , L , XL , XXL

Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

*Fork
Size: XS

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel

Size: S

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel

Size: M , ML , L , XL , XXL

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Hub front

Formula DC-20, alloy, 6-bolt, 100x5 mm

Skewer front

Trek Thru-Skew

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm

Skewer rear

173x5 mm QR

Rim

Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve

Spokes

14 g stainless steel, black

*Tyre
Size: XS , S

Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"

Size: M , ML , L , XL , XXL

Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"

Shifter

Shimano U4000, 9-speed

Rear derailleur

Shimano CUES U4000

*Crank
Size: XS , S , M , ML

Shimano CUES U4001, 32T, 52mm chain line, 170 mm length

Size: L , XL , XXL

Shimano CUES U4001, 32T, 52mm chain line, 175mm length

Bottom bracket

Shimano, 73 mm, threaded cartridge, 122.5 mm spindle

Cassette

Shimano LINKGLIDE LG300, 11-46, 9-speed

Chain

Shimano LG500

Pedal

VP-536 nylon platform

Saddle

Bontrager Verse Short, stainless steel rails

*Seatpost
Size: XS , S , M

Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length

Size: ML , L , XL , XXL

Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

*Handlebar
Size: XS

Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width

Size: S

Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width

Size: M , ML , L , XL , XXL

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Trek Line Comp, nylon lock-on

*Stem
Size: XS , S

Bontrager Comp, 31.8 mm, 7-degree, 35 mm length

Size: M , ML , L

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length

Size: XXL

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length

Head set

Semi-integrated, 1-1/8"

Brake

Shimano MT200 hydraulic disc

*Brake rotor
Size: XS , S , M , ML , L , XL , XXL

Shimano RT26, 6-bolt, 160 mm

Size: M , ML , L , XL , XXL

Shimano RT26, 6-bolt, 180 mm

Brake Set

Shimano MT200 hydraulic disc

Weight
M - 15.10 kg / 33.29 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
