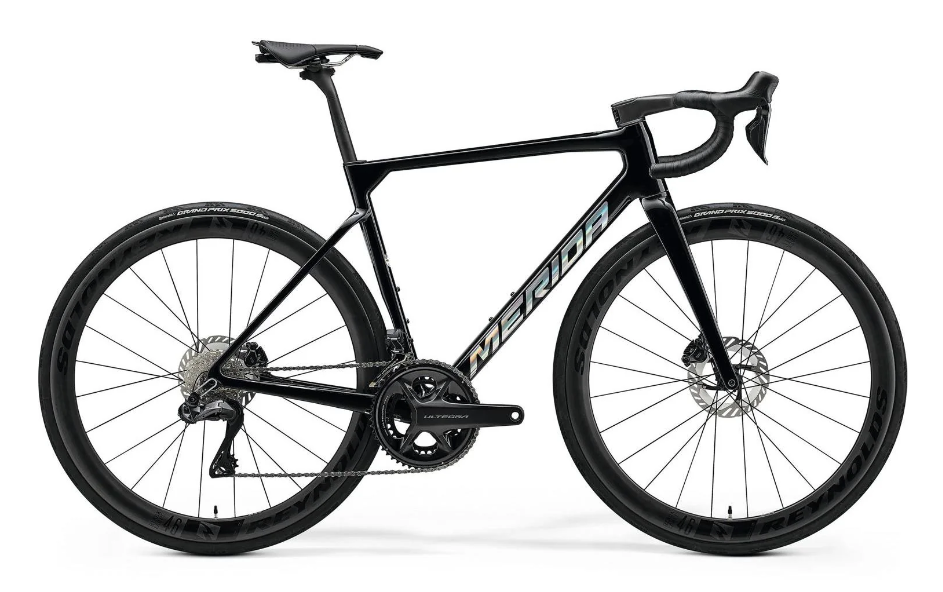

*Place a deposit for the new Merida Scultura Team bike, Photos will replace the above image when they become available.*

ETA 08/2026 *Date is subject to change*

For more information, please contact us

*Specs Are Subject To Change And Will Be Updated Closer To Bike Release*

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Blue

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Build

Frame

SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5

Fork

SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS

Handlebars

Vision Metron 5D ACR EVO; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm (XL)

Headset

FSA ACR, SL bearing

Grips

Prologo One-Touch

Stem

Vision Metron 5D ACR EVO; MAT carbon; 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

Bottom Bracket

Shimano SM-BB92-41B; Pressfit 86.5

Saddle

Prologo Nago R4 PAS; Nack

Seat Post

Metron RS Seatpost; 27.2 DSP; 0 SSB; Carbon

Seat Clamp

MERIDA EXPERT

Accessories

Bottle Cage: B-147B; Seatpost adapter for DI2 battery

Wheels

Wheel Size

700c

Rims

Vision Metron RS 45 SL Clincher TL Disc; 100x12 WHF; 142x12 WHR; 23 IWR; 45 HRI; Centerlock; MAT carbon; Tubeless tape ready

Tyres

F: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready | R: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Groupset

Crankset

Shimano Dura Ace; 52-36 ATC; Power Meter; 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Chain

Shimano M9100-12

Brakes

F: Shimano Dura Ace; Hydraulic disc | R: Shimano Dura Ace; Hydraulic disc

Front Rotor

Shimano CL900; 160mm

Rear Rotor

Shimano CL900; 160mm

Shifters

F: Shimano Dura Ace disc Di2 | R: Shimano Dura Ace disc Di2

Rear Derailleur

Shimano Dura Ace Di2

Cassette

12 Speed
