*BEFORE USING THIS VEHICLE, CHECK THE APPLICABLE LOCAL LAWS RELATING TO YOUR INTENDED USE OF THE VEHICLE ON ROADS AND ROAD RELATED AREAS.*

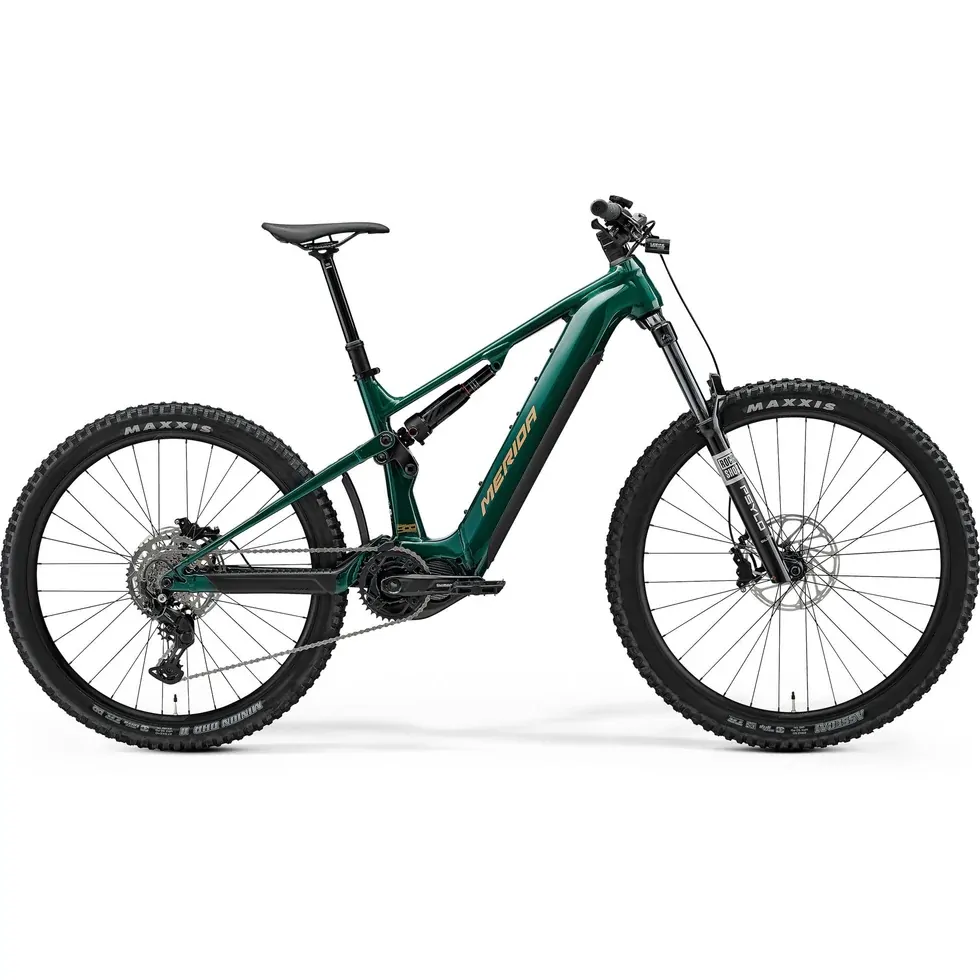

The Merida eOne-Sixty 400 Electric Enduro Bike in Deep Forest Green/Light Earth is designed for those who crave adventure on challenging terrains. Equipped with a powerful Shimano motor delivering 85Nm of torque, this bike ensures a smooth and efficient ride, even on steep inclines. Its 630Wh battery provides extended range, allowing you to explore further without worry. The robust alloy frame and 160mm suspension travel offer durability and comfort, while hydraulic disc brakes ensure reliable stopping power. Whether you're tackling rugged trails or enjoying a leisurely ride, the Merida eOne-Sixty 400 is built to enhance your cycling experience.

Key Features

  • Powerful Shimano motor 85Nm torque
  • Long-lasting 630Wh Shimano battery
  • Durable alloy frame construction
  • 160mm front and rear suspension
  • Hydraulic disc brakes for reliable stopping

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

160mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm; 25KPH

Torque (Nm)

85

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

73

Display

Shimano SC-EN500

Approved for sale in NSW

true

Declared Article Number (NSW)

ULL-104179-EA

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Rock Shox Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Rock Shox Deluxe

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: EOF-204

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano TC500-B; 15x100 WHF; 32 SPH; Centerlock | R: Shimano TC500; 12x148 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC; Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Brakes

F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) | R: Shimano Cues U4000-9

Rear Derailleur

Shimano Cues U4000; GS

Cassette

9 Speed
