BEFORE USING THIS VEHICLE, CHECK THE APPLICABLE LOCAL LAWS RELATING TO YOUR INTENDED USE OF THE VEHICLE ON ROADS AND ROAD RELATED AREAS.

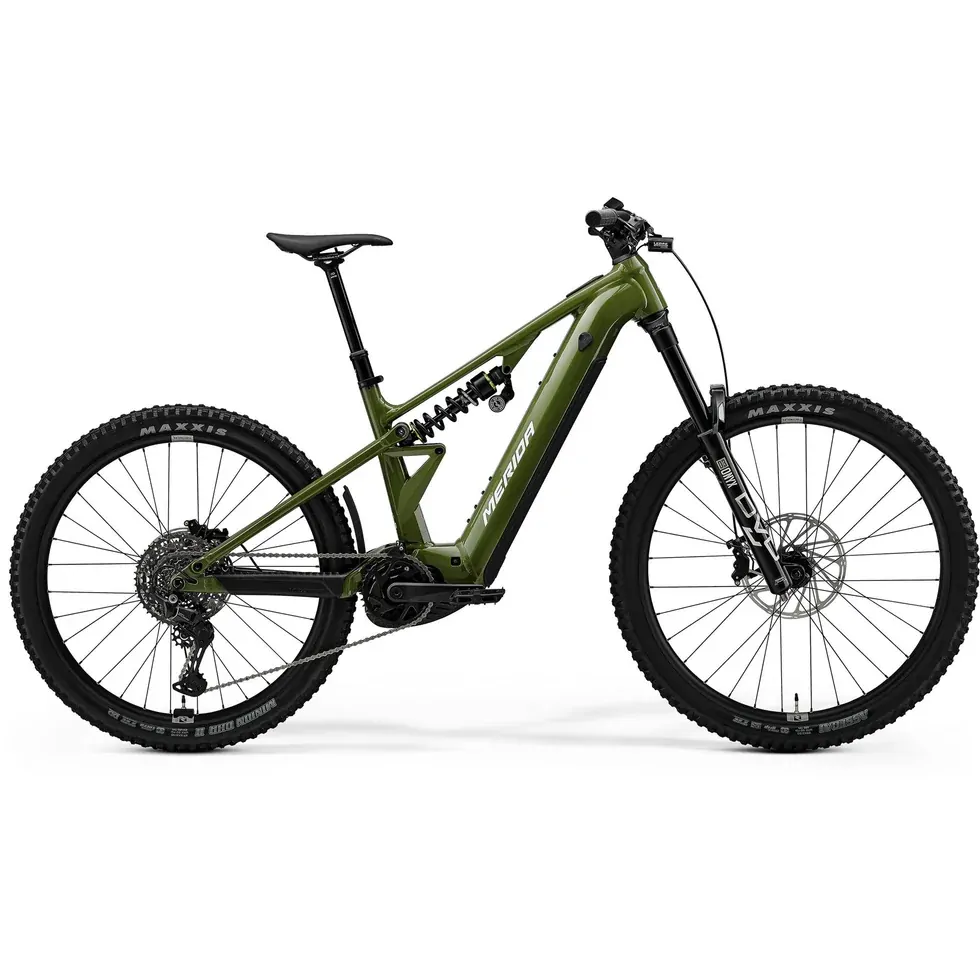

The Merida eOne-Eighty FR 600 Electric Enduro Bike in Anaconda Green/White is designed for those who crave adventure on challenging terrains. Equipped with a powerful Bosch motor and a long-lasting 800Wh battery, this bike ensures you can tackle steep climbs and long trails with ease. The robust alloy frame and high-performance suspension system provide stability and comfort, while the Shimano CUES drivetrain offers smooth and reliable gear changes. With hydraulic disc brakes and a mullet wheel setup, this bike delivers exceptional control and handling, making it perfect for enduro enthusiasts.

Key Features

  • Bosch 250W motor with 85Nm torque
  • Bosch 800Wh battery for extended rides
  • DVO Onyx 38 D3 fork with 180mm travel
  • Shimano CUES 10-speed drivetrain
  • Hydraulic disc brakes for superior control

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

180mm

Rear Travel

180mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Performance Line CX; 250W; 85Nm (upgradeable to 100Nm); 25KPH

Torque (Nm)

85

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

800

Battery

Bosch PowerTube 800 ; 800Wh

Max. Range (KMs)

93

Display

Bosch Purion 200

Approved for sale in NSW

true

Declared Article Number (NSW)

ULL-104163-EA

Build

Frame

eONE-EIGHTY LITE; MAT Aluminum; 180 STR; 29” x 2,6” max. WHS; 148x12 AST; intube;

Fork

DVO Onyx 38 D3; Air, 180 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

DVO Jade X CORE

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT TR

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: RF-001 mini fender

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"

Hubs

F: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt | R: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

FSA Direct Mount Steel Chainring; 36 ATC; FSA CK-220 wide E-Bike Forged Crankset; 160mm for all sizes

Chain

Shimano LG500

Brakes

F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston

Front Rotor

Sram CenterLine; 220mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Shimano SL -MT500-L | R: Shimano CUES U6000-10

Rear Derailleur

Shimano CUES U6000; GS

Cassette

10 Speed
