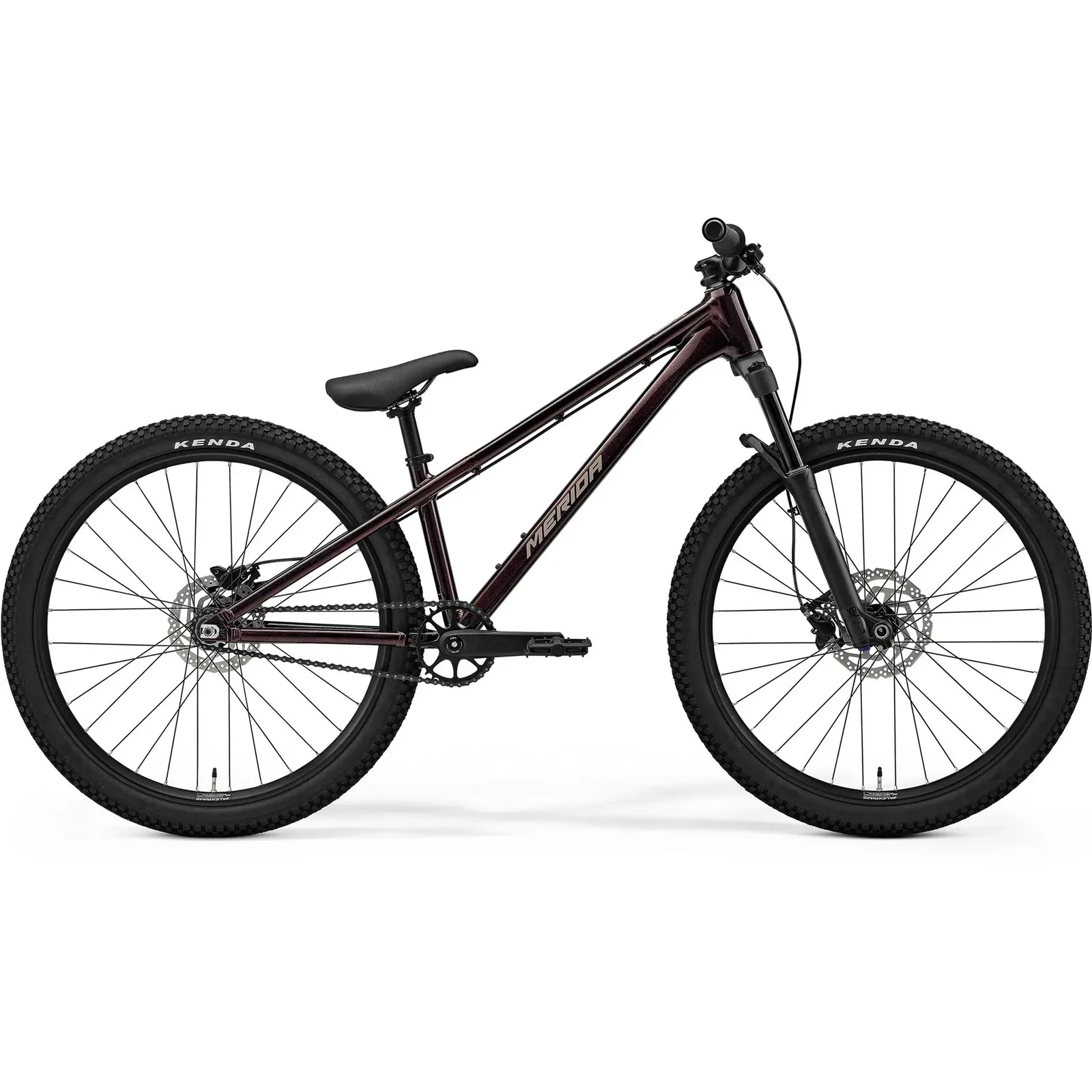

The Merida Dirt 500 Dirt Jumper Bike is designed for those who crave the thrill of dirt jumping, pump tracks, and trail riding. Built with a robust alloy frame and equipped with a Manitou Circus Expert fork, this bike offers excellent shock absorption and control. Its hydraulic disc brakes ensure reliable stopping power, while the single-speed drivetrain provides simplicity and ease of maintenance. With tubeless-ready rims and Kenda K-Rad tires, the Merida Dirt 500 is ready to tackle any terrain with confidence.

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

26"

Brake Type

Hydraulic Disc Brake

Gears

1 x 1

Front Travel

100mm

Build

Frame

DIRT TFS; MAT aluminum; 26 WHS; 135x10 AST; BSA BBR

Fork

Manitou Circus Expert, Air; 100 STR; 110x20mm; 41mm fork offset; tapered

Handlebars

MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB

Headset

FSA NO.57SC

Grips

MERIDA COMP DR

Stem

MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40mm

Bottom Bracket

Samox BSA 24mm EB2401

Pedals

VP VPE-536

Saddle

MERIDA COMP DR

Seat Post

MERIDA COMP DR; MAT aluminium; 27.2 DSP; 0 SSB; 250mm length

Seat Clamp

MERIDA EXPERT

Accessories

Rear brake adapter SM-MA-R160P/S

Wheels

Wheel Size

26"

Rims

Alexrims MD30; 30 IWR; MAT aluminum; 32H; tubeless ready

Hubs

F: Novatec DH61SB-HL; 110x20 WHF; 32 SPH; 6 bolt | R: Novatec D256SBT; 135x10 M10 WHR; 32 SPH; 6 bolt; 14t

Tyres

F: Kenda K-Rad K905 ; 26x2.3"; wire | R: Kenda K-Rad K905 ; 26x2.3"; wire

Spokes

Black stainless

Groupset

Crankset

MERIDA Expert TR II; 32 ATC; 160mm

Chain

KMC Z1 narrow

Brakes

F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT26; 160mm

Cassette

Single Speed
