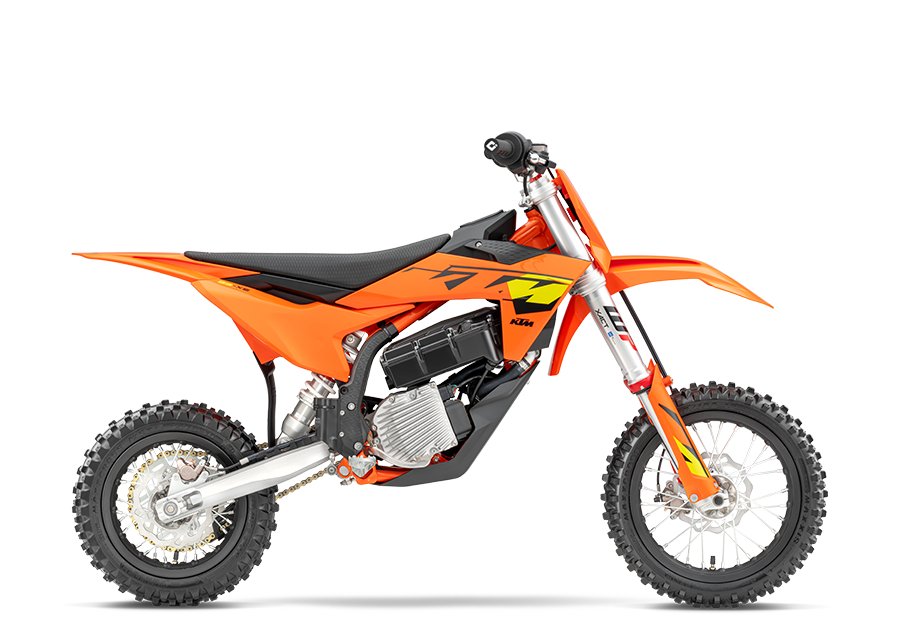

The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the petrol-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.

Engine

Electric motor

48 V - BLDC motor with outer rotor

Max. power

5 kW / 3,900 rpm

Torque

13.8 Nm

Max. motor speed

6000 rpm

Battery capacity

21 Ah

Charging time 100 %

70 min.

Rated output

2 kW / 3,200 rpm

Secondary gear ratio

8:46

Traction battery

Lithium-Ion KTM PowerPack

Charger line voltage

80-240 V/50-60 Hz

Charging power

900 W

Charging time 80 %

45 min.

Chassis

Frame design

Chrome-molybdenum steel central-tube frame

Rear subframe design

Glass fiber reinforced plastic

Handlebar

Tapered aluminum Ø 28/22/18 mm

Front brake

Disc brake

Rear brake

Disc brake

Front brake disc diameter

160 mm

Rear brake disc diameter

160 mm

Brake disc diameters (front/rear)

160 / 160 mm

Wheels

1.5 x 12"; 1.6 x 10"

Tyre width (front)

60

Tyre height (front)

100

Tyre width (rear)

2.75

Chain

415, Non-sealed

Steering head angle

66 °

Suspension

Front suspension

XACT 35 WP Upside-Down fork, Ø 35 mm

Rear suspension

XACT WP mono shock

Suspension travel (front)

205 mm

Suspension travel (rear)

193 mm

Steering head angle

66 °

Fork offset

22 mm

Dimensions

Seat height

682 mm

Wheelbase

1028 ± 10 mm

Ground clearance

259 mm
