ADVENTURE EVERYWHERE

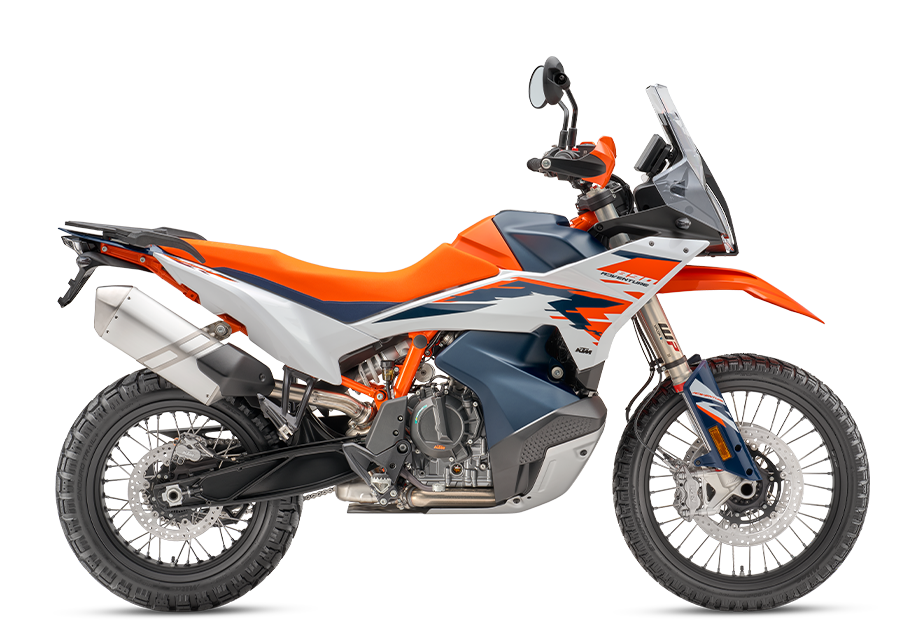

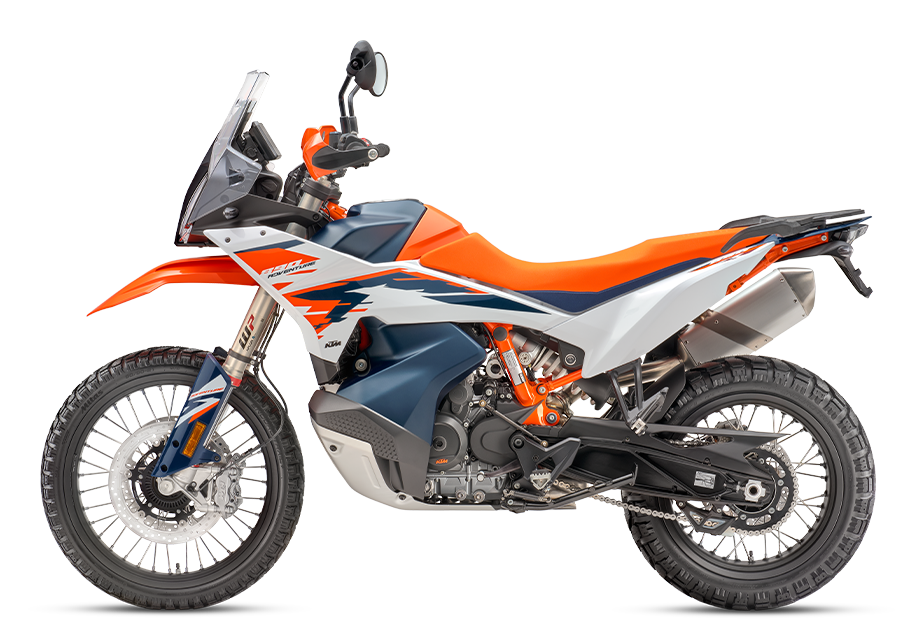

The KTM 890 ADVENTURE R proves that the destination comes second. With its unmatched ability to dispatch everything from highways to rocky gravel switchbacks, to single goat tracks, the KTM 890 ADVENTURE R boasts serious travel capabilities. Thanks to its incredibly responsive powerplant, pin-sharp offroad handling, and all-day comfort, its all about the journey.

Engine

Design

2-cylinder, 4-stroke, parallel twin

Displacement

889 cm³

Power

105 PS

Torque

100 Nm

Transmission

6-speed

CO2 emissions

103 g/km

Cooling

Liquid cooled with water/oil heat exchanger

Engine cylinder

Twin cylinder

EMS

Bosch EMS with RBW

Engine oil

Motorex Power Synth SAE 10W-50

Engine stroke

4-Stroke

Drive type

Combustion

Silencer

Stainless steel primary and secondary silencer

Chassis

Brake disc diameters (front/rear)

320 / 260 mm

Front brake disc diameter

320 mm

Front brake disc diameter

12.6 inch

Rear brake disc diameter

260 mm

Rear brake disc diameter

10.24 inch

Front brake

2x radially mounted 4 piston caliper

Rear brake

2 piston floating caliper

Chain

520 X-Ring

Frame design

Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated

Steering head angle

63.7 °

Rear subframe design

Chromium-Molybdenum-Steel trellis, powder coated

Trail

110.4 mm

Wheelbase

1.528 mm

Suspension

Front suspension

WP XPLOR-USD, Ø 48 mm

Rear suspension

WP XPLOR-Monoshock

Suspension travel (front)

240 mm

Suspension travel (rear)

240 mm

Suspension travel (front)

9.45 inch

Suspension travel (rear)

9.45 inch

Front suspension adjustment

Compression (high and low speed), rebound

Dimensions

Seat height

880 mm

Wheelbase

1.528 ± 15 mm

Tank capacity (approx.)

20 l

Ground clearance

263 mm

Weight (without fuel)

200 kg

Tank capacity (approx.)

5.28 US gal

Weight fully fueled

215 kg

Wheelbase tolerance

0.59 inch

Wheels

2.50 x 21"; 4.50 x 18"

Wheels

Spoked wheels with aluminium tubeless rims
