ALL TERRAIN, ALL THE TIME

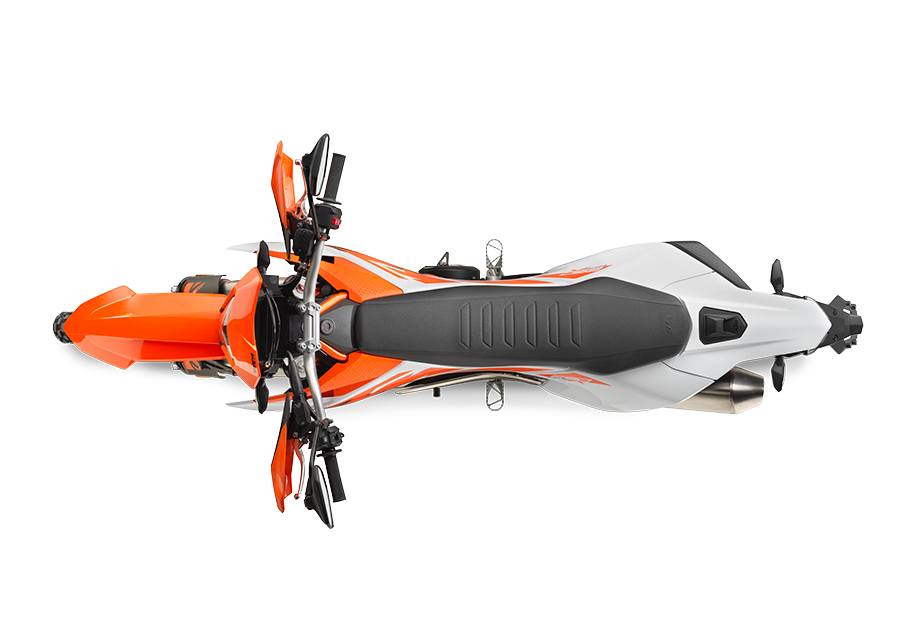

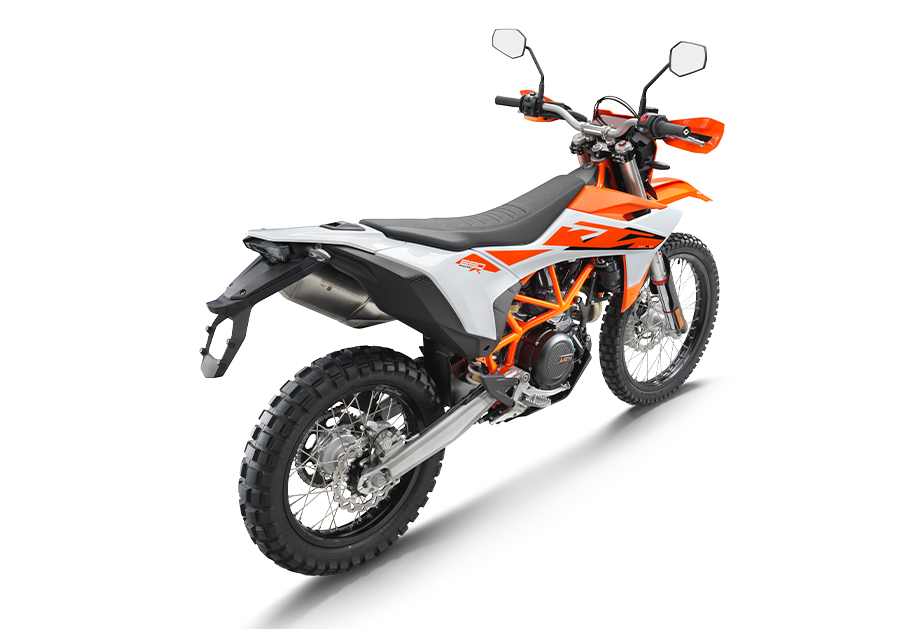

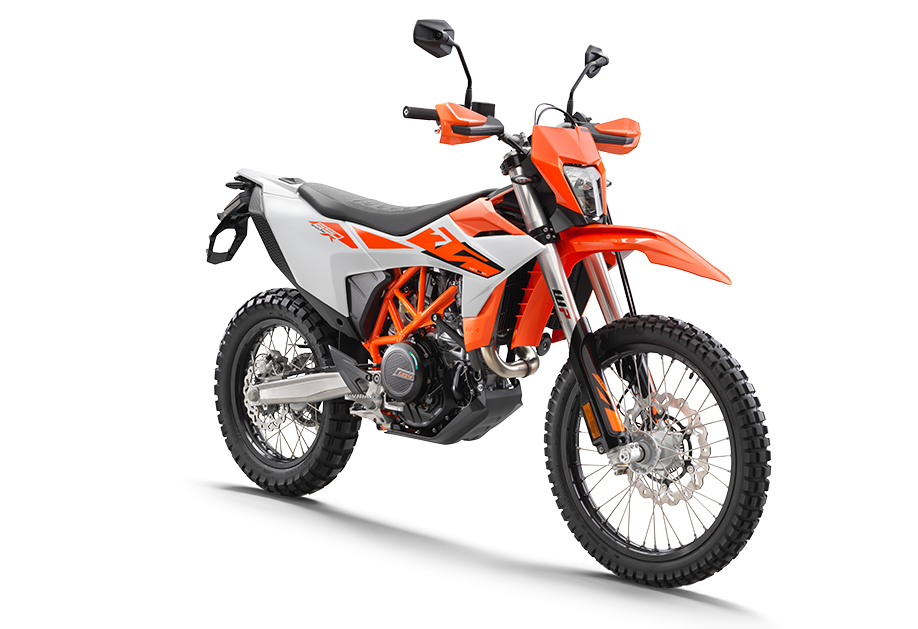

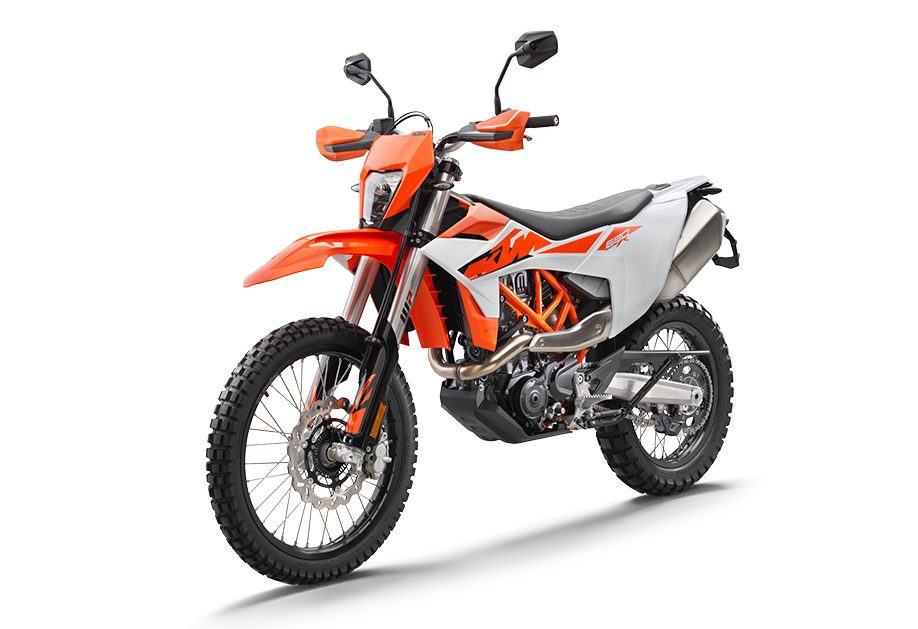

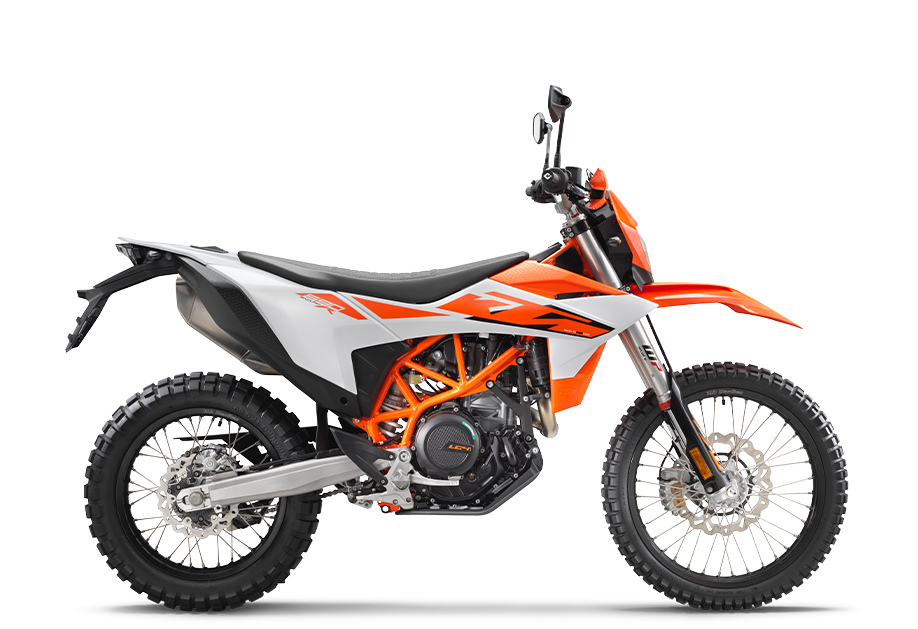

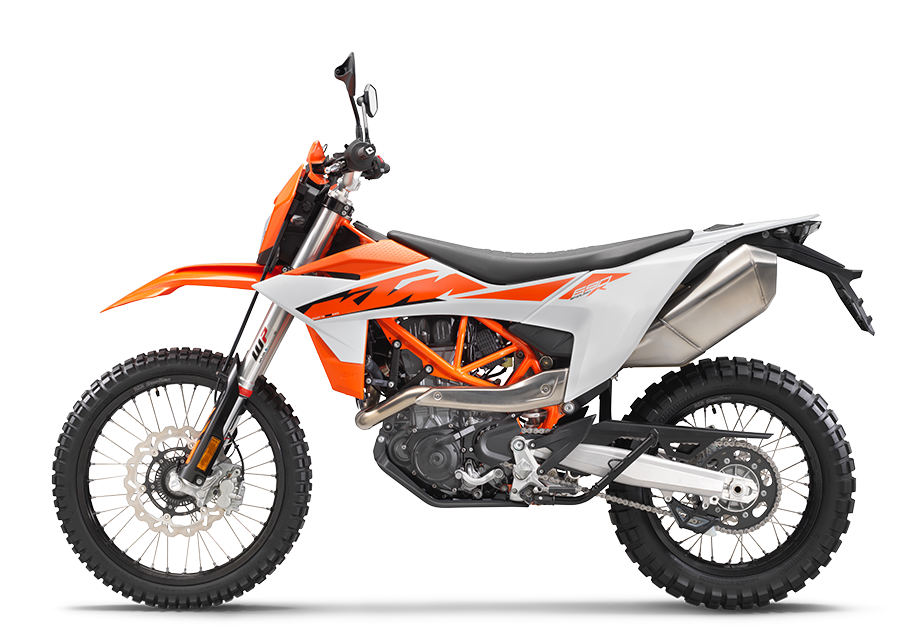

Imagine this: Your KTM 690 ENDURO R grumbles with the rising revs as suburbia slowly disappears behind you. Upfront, a bright LED beam lights the way into the early morning mist as you hurtle toward the next dirt track. The next moment, you're blasting off into the wilderness, transitioning from asphalt to grit effortlessly, without breaking a sweat. That's the allure of the KTM 690 ENDURO R - versatility beyond boundaries.

Engine

Design

1-cylinder, 4-stroke engine

Displacement

692.7 cm³

Power

79 PS

Torque

73 Nm

Transmission

6-speed

CO2 emissions

99 g/km

Cooling

Liquid cooled

Engine cylinder

Single cylinder

EMS

Keihin EMS with RBW, twin ignition

Engine oil

Motorex Power Synth SAE 10W-50

Engine stroke

4-Stroke

Drive type

Combustion

Silencer

Stainless steel primary and secondary silencer

Chassis

Brake disc diameters (front/rear)

300 / 240 mm

Front brake disc diameter

300 mm

Front brake disc diameter

11.81 inch

Rear brake disc diameter

240 mm

Rear brake disc diameter

9.45 inch

Front brake

Disc brake

Rear brake

Disc brake

Chain

520 X-Ring

Frame design

Chromium-Molybdenum steel trellis frame, powder coated

Steering head angle

62.3 °

Rear subframe design

Self-supporting plastic tank

Trail

120 mm

Wheelbase

1506 mm

Suspension

Front suspension

WP XPLOR-USD, Ø 48 mm

Rear suspension

WP XPLOR with Pro-Lever linkage

Suspension travel (front)

265 mm

Suspension travel (rear)

250 mm

Suspension travel (front)

10.43 inch

Suspension travel (rear)

9.84 inch

Front suspension adjustment

Compression and rebound adjustable

Rear suspension adjustment

Compression (high and low speed), rebound and preload adjustment

Dimensions

Seat height

935 mm

Wheelbase

1506 ± 15 mm

Tank capacity (approx.)

13.3 l

Ground clearance

265 mm

Weight (without fuel)

152 kg

Tank capacity (approx.)

3.51 US gal

Weight fully fueled

162 kg

Wheelbase tolerance

0.59 inch

Wheels

1.85 x 21"; 2.5 x 18"
