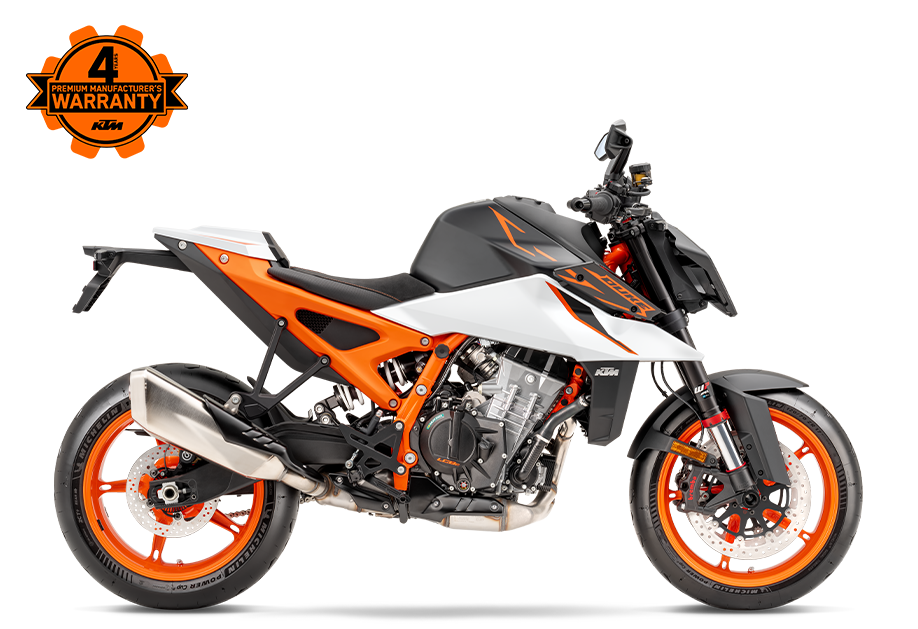

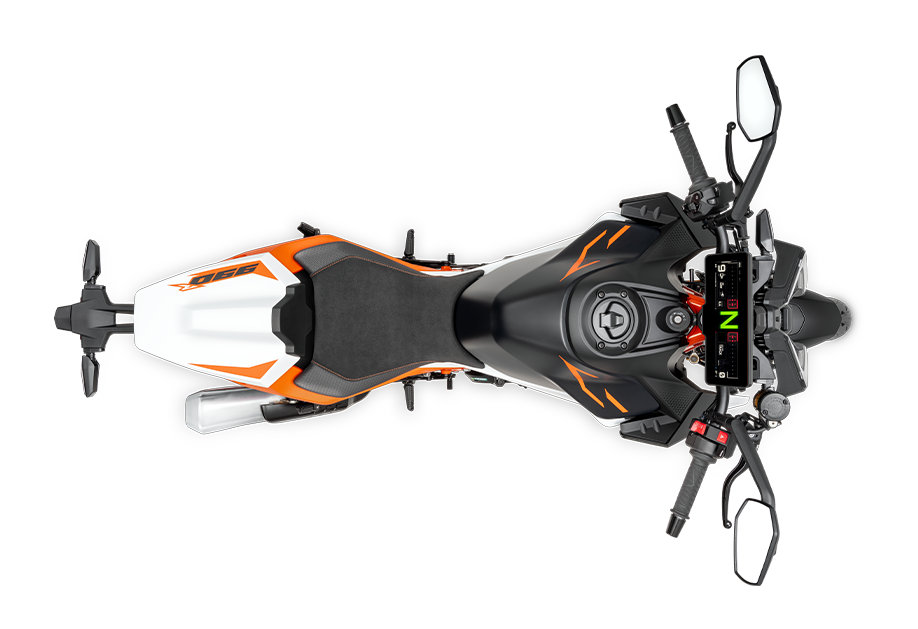

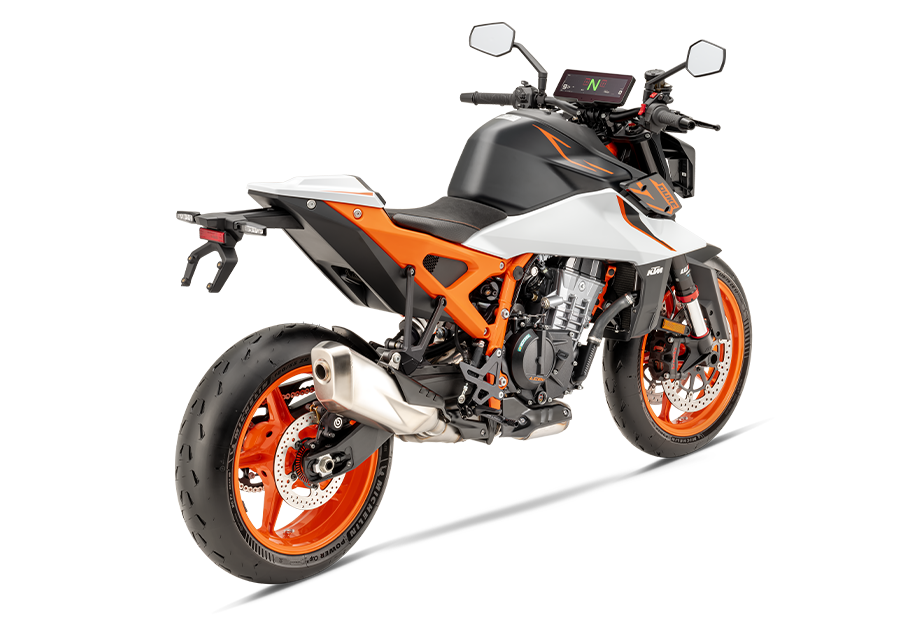

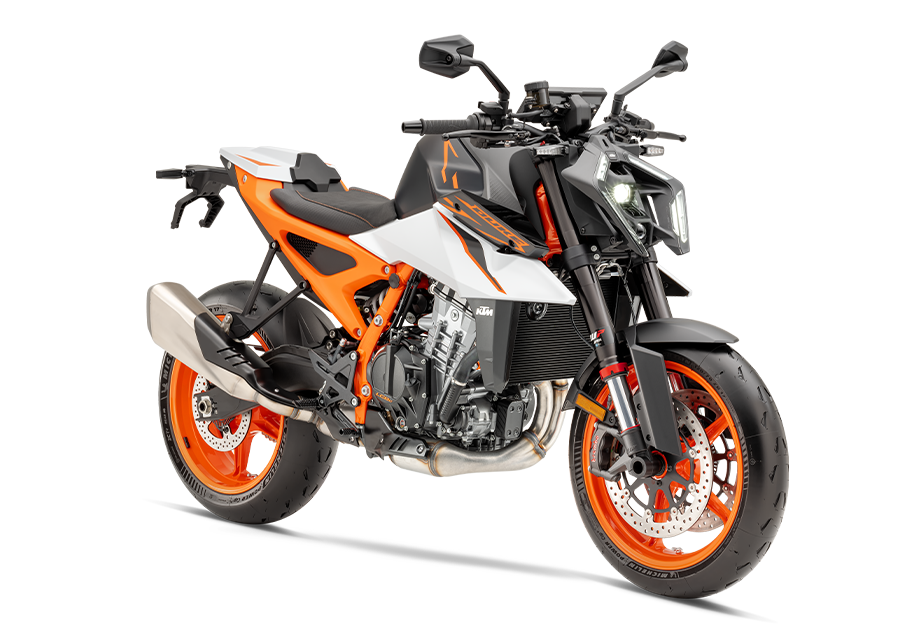

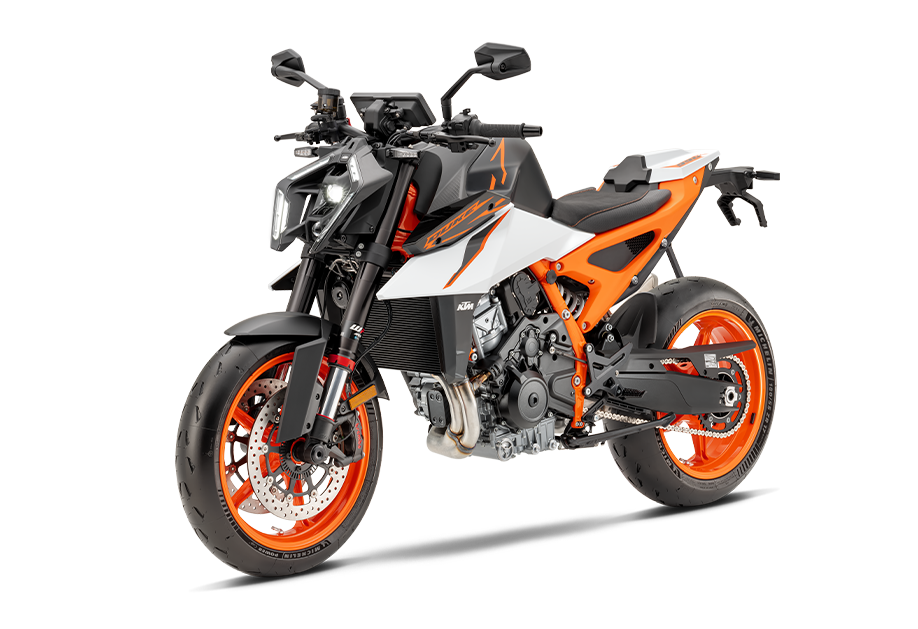

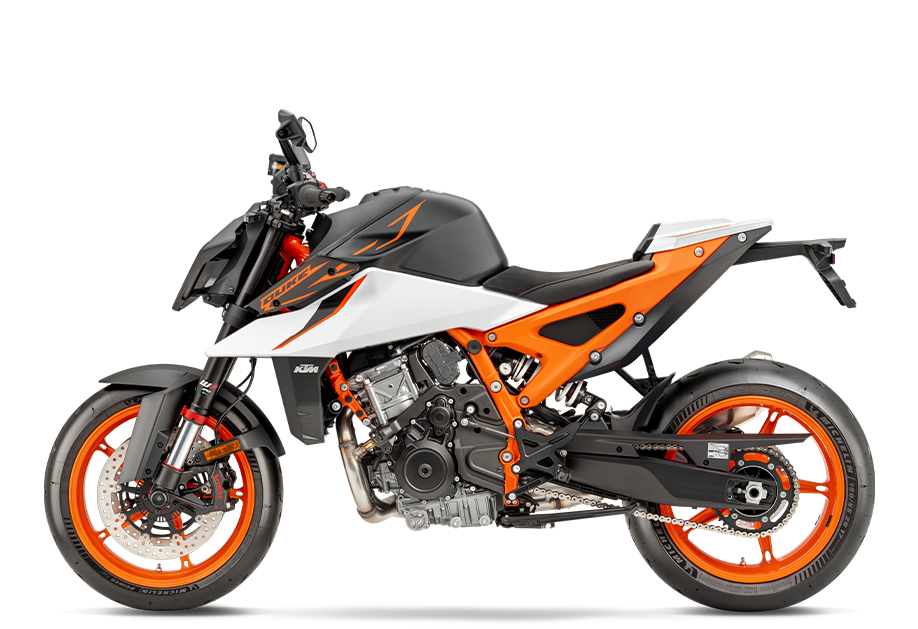

Sportier in its stance, more intent in its purpose, and upgraded to the extreme. The KTM 990 DUKE R brings added flare to the middleweight Naked market with maximum fight that will get you further, faster. Homologated to carry a pillion, it's sold as a single-seater with pillion parts available separately, setting a new standard with an increased power output of 130 PS, and boasting sharper ergonomics, coupled with upgraded WP APEX suspension and never-before-seen electronic functionality. Designed, developed, and produced in Austria.





Engine

Design

2 cylinder, 4 stroke, DOHC Parallel twin (EURO 5+)

Displacement

947 cm³

Power

127.84 PS

Torque

103 Nm

Transmission

6-speed

CO2 emissions

110 g/km

Cooling

Liquid cooled with water/oil heat exchanger

Engine cylinder

Twin cylinder

EMS

Bosch EMS with RBW

Engine oil

Motorex Power Synth SAE 10W-50

Engine stroke

4-Stroke

Drive type

Combustion

Silencer

Stainless steel primary and secondary silencer

Chassis

Front brake disc diameter

320 mm

Rear brake disc diameter

240 mm

Front brake

2x radially mounted 4 piston caliper

Rear brake

Single-piston floating calliper, brake disc

Chain

520 X-Ring

Frame design

Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated

Steering head angle

65.9 °

Rear subframe design

Aluminium, powder-coated

Trail

100 mm

Wheelbase

1481 mm

Suspension

Front suspension

WP APEX 48

Rear suspension

WP APEX

Suspension travel (front)

143 mm

Suspension travel (rear)

140 mm

Front suspension adjustment

Compression and rebound adjustable

Front suspension addition

Compression and rebound (30 click), Preload (±3 Clicks)

Rear suspension addition

Compression High Speed (3 turns) Low Speed (30 Clicks), Rebound (30 Clicks), Preload (10 turns)

Dimensions

Seat height

840 mm

Wheelbase

1481 ± 15 mm

Tank capacity (approx.)

14.8 l

Ground clearance

210 mm

Weight (without fuel)

179 kg

Weight fully fueled

190 kg

Wheelbase tolerance

15 mm

Front wheel diameter

17 "

Rear wheel diameter

17 "

Front wheel width

3.5 "

Rear wheel width

5.5 "

Wheels

3.5 x 17"; 5.5 x 17"

Wheels

Cast aluminium wheels
