STEP INTO THE BIG LEAGUES

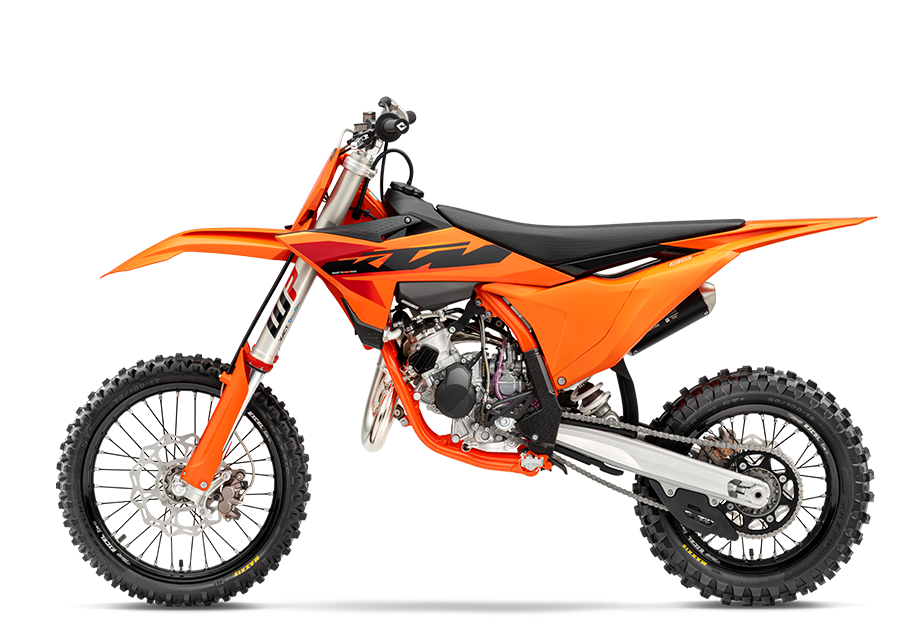

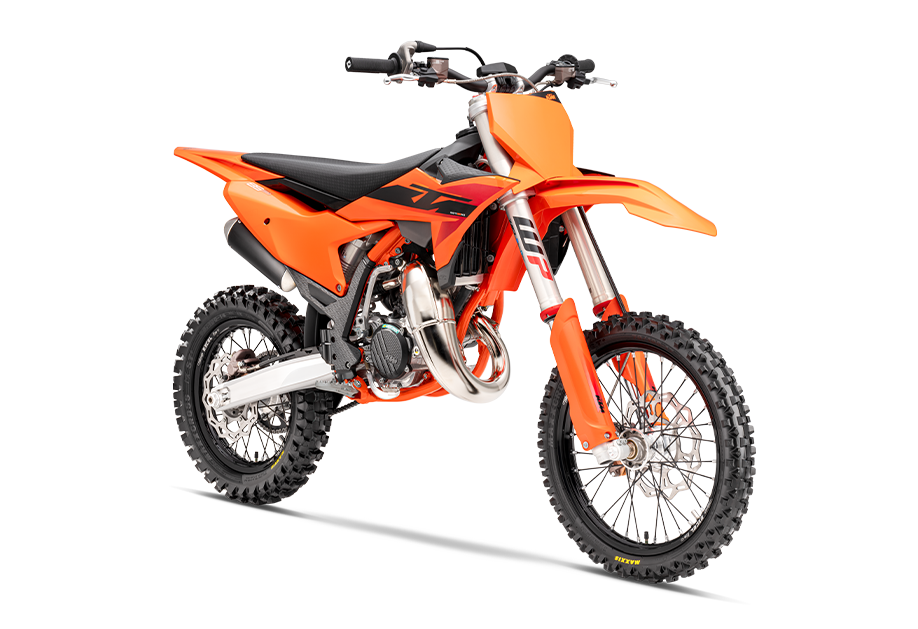

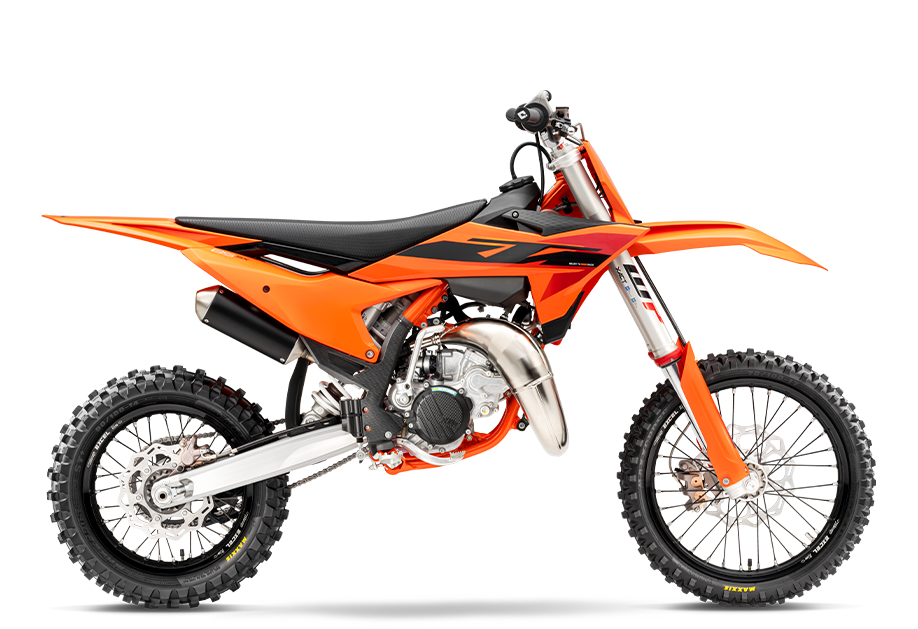

The last step awaits. The KTM 85 SX 17/14 is ready to raise the speed for you. Developed on track and at an international level, the KTM 85 SX 17/14 boasts significantly enhanced handling, searing power delivery and proven READY TO RACE DNA through its components and pedigree. You spoke, we listened. We developed. Now continue the journey. Fast.

Engine

Design

1-cylinder, 2-stroke engine

Displacement

84.9 cm³

Transmission

6-speed

EMS

Keihin PWK 28

Engine oil

Motorex Formula 4T 15W/50

Clutch primary drive teeth

64

Clutch

Wet, multi-disc clutch, Formula hydraulics

Engine cylinder

Single cylinder

Engine stroke

2-Stroke

Chassis

Frame design

Central-tube frame with double-cradle

Front brake

Disc brake

Rear brake

Disc brake

Rear subframe design

Aluminium / Polyamide Glass Fiber

Chain

428, Non-sealed

Suspension

Front suspension

XACT 43 WP Upside-Down fork, Ø 43 mm

Rear suspension

XACT WP PDS mono shock

Suspension travel (front)

278 mm

Suspension travel (rear)

289 mm

Front suspension type

WP XACT

Front suspension adjustment

Compression and rebound adjustable

Rear suspension addition

Preload adjuster

Dimensions

Seat height

845 mm

Ground clearance

308 mm

Tank capacity (approx.)

5.4 l
