STEP ON UP!

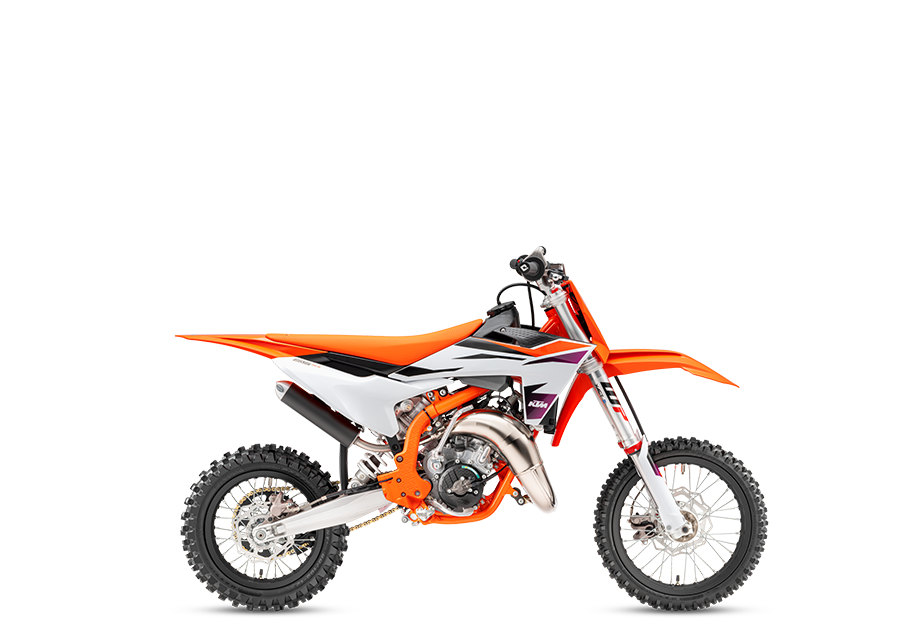

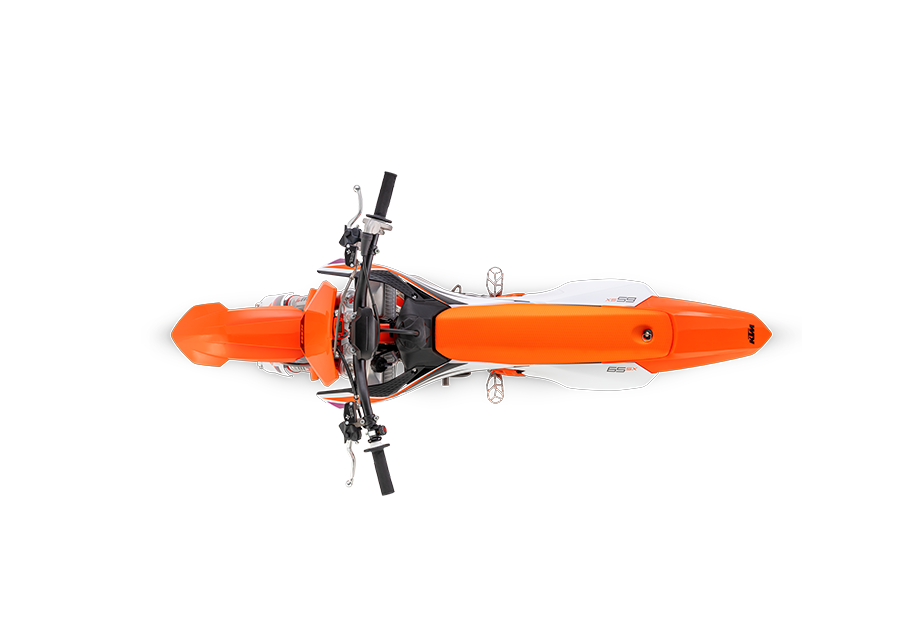

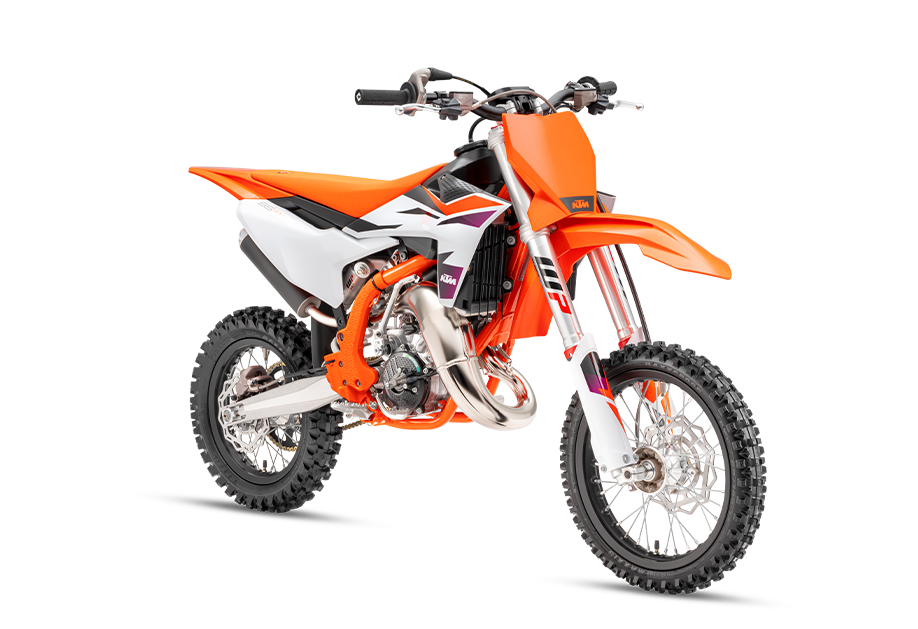

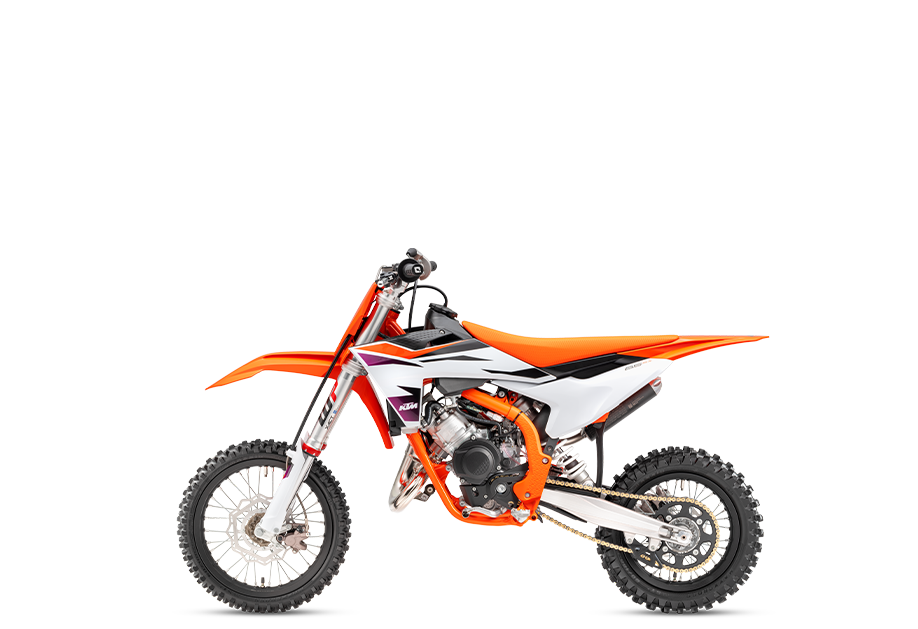

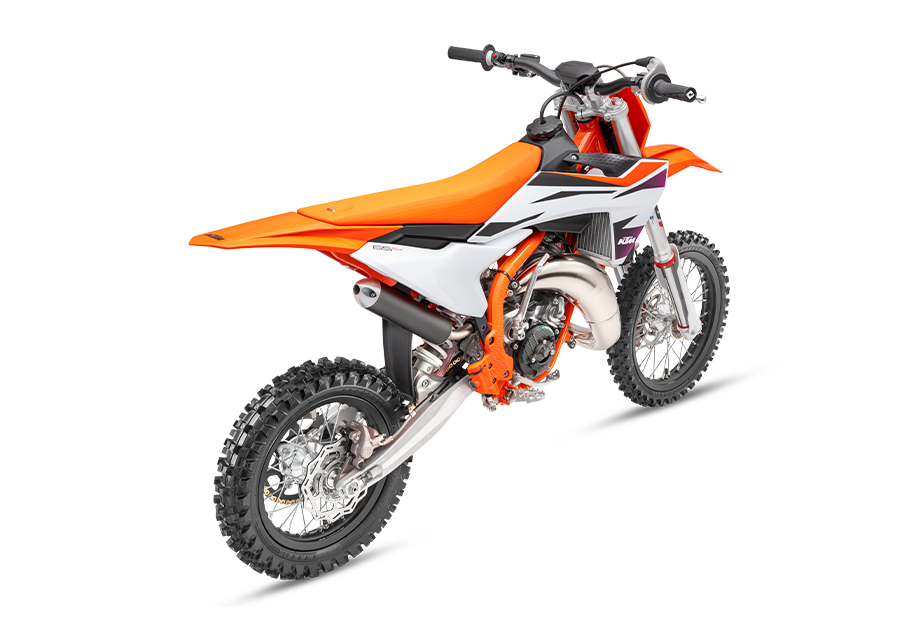

You spoke, we listened and now the KTM 65 SX is the latest version of the fastest and easiest motocrosser your little rider will need for the next step in learning and pace. They'll feel the dirt better thanks to some important modifications, and parents will appreciate some key hardware upgrades to extend life and lower maintenance. The KTM 65 SX features full-size motocross bike quality, high-end components, a fully manual clutch, and gearbox - not to mention a sweet-smelling 2-stroke top-end powerband. Don't forget that READY TO RACE styling and DNA. There is no better option in the start gate.

Engine

Design

1-cylinder, 2-stroke engine

Displacement

64.9 cm³

Transmission

6-speed

EMS

Mikuni VM 24

Engine oil

Motorex Topspeed 4T 15W50

Clutch primary drive teeth

75

Primary drive

23:75

Clutch

Wet, multi-disc clutch, Formula hydraulics

Engine cylinder

Single cylinder

Engine stroke

2-Stroke

Chassis

Frame design

Central-tube frame with double-cradle

Front brake

Disc brake

Rear brake

Disc brake

Rear subframe design

Steel / Polyamide Glass Fiber

Chain

420

Suspension

Front suspension

XACT 35 WP Upside-Down fork, Ø 35 mm

Rear suspension

XACT WP mono shock

Suspension travel (front)

215 mm

Suspension travel (rear)

253.5 mm

Front suspension adjustment

Compression and rebound adjustable

Rear suspension setting

Compression and rebound adjustable

Dimensions

Seat height

730 mm

Ground clearance

259 mm

Tank capacity (approx.)

4.5 l
