INCREASE YOUR BLAST RADIUS

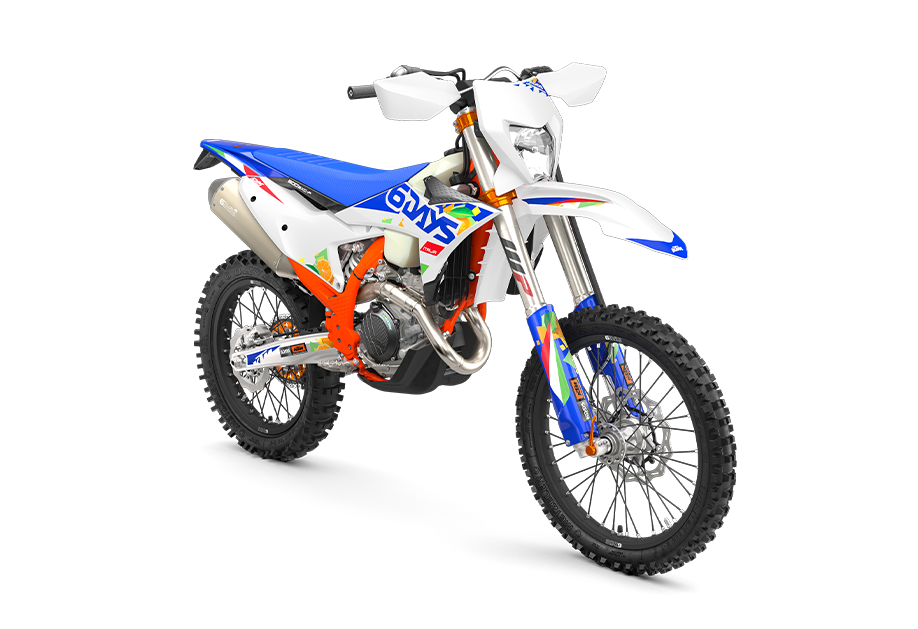

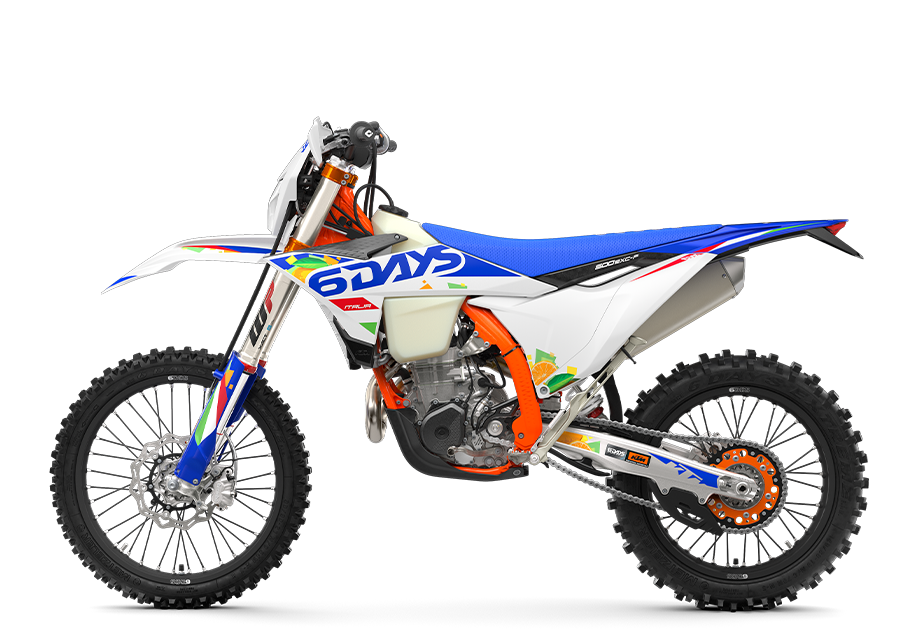

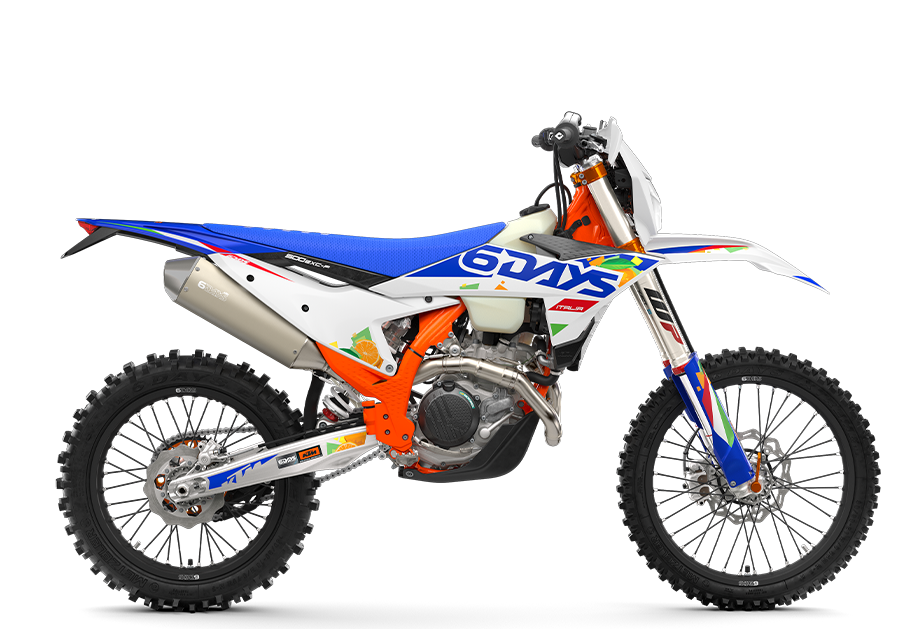

Few machines can hold their own against the KTM 500 EXC-F 6DAYS. Power, torque, unmatched handling, and pure 4-stroke fury puts this Enduro weapon in a class all of its own. Packing a punch, complete with closed-cartridge suspension, and an electronics package that puts its rivals to shame, the KTM 500 EXC-F 6DAYS is ready to take on any challenge.

  • KTM EXC 6DAYS RANGE highlights are:
  • ORANGE ANODIZED CNC MACHINED TRIPLE CLAMPS
  • 6DAYS BRANDED PARTS
  • ORANGE FRAME
  • RADIATOR FAN
  • MAP-SELECT SWITCH
  • ORANGE FRONT AXLE PULLER
  • SEMI-FLOATING FRONT BRAKE DISC
  • SOLID REAR BRAKE DISC
  • REAR BRAKE SAFETY WIRE
  • SUPERSPROX STEALTH REAR SPROCKET
  • SKID PLATE
  • UNIQUE 6DAYS SPAIN GRAPHICS
  • FRAME PROTECTION SET
  • 6DAYS SPECIFIC SEAT
  • METZELER 6DAYS EXTREME TIRES

Engine

Design

1-cylinder, 4-stroke engine

Displacement

510.9 cm³

Transmission

6-speed

Fuel-mixture generation

Keihin EFI, throttle body 42 mm

EMS

Keihin EMS

Clutch primary drive teeth

72

Primary drive

29:72

Clutch

Wet, DDS multi-disc clutch, Brembo hydraulics

Engine cylinder

Single cylinder

Engine stroke

4-Stroke

Chassis

Frame design

Central double-cradle-type 25CrMo4 steel

Front brake

Disc brake

Rear brake

Disc brake

Rear subframe design

Aluminum-reinforced polyamide

Chain

520 X-Ring

Suspension

Front suspension

WP XACT-USD, Ø 48 mm

Rear suspension

WP XPLOR shock absorber with PDS

Suspension travel (front)

300 mm

Suspension travel (rear)

310 mm

Front suspension adjustment

Compression and rebound adjustable

Rear suspension setting

Compression and rebound adjustable

Dimensions

Seat height

963 mm

Ground clearance

347 mm

Tank capacity (approx.)

8.5 l
