FULL FACTORY FLAVOR

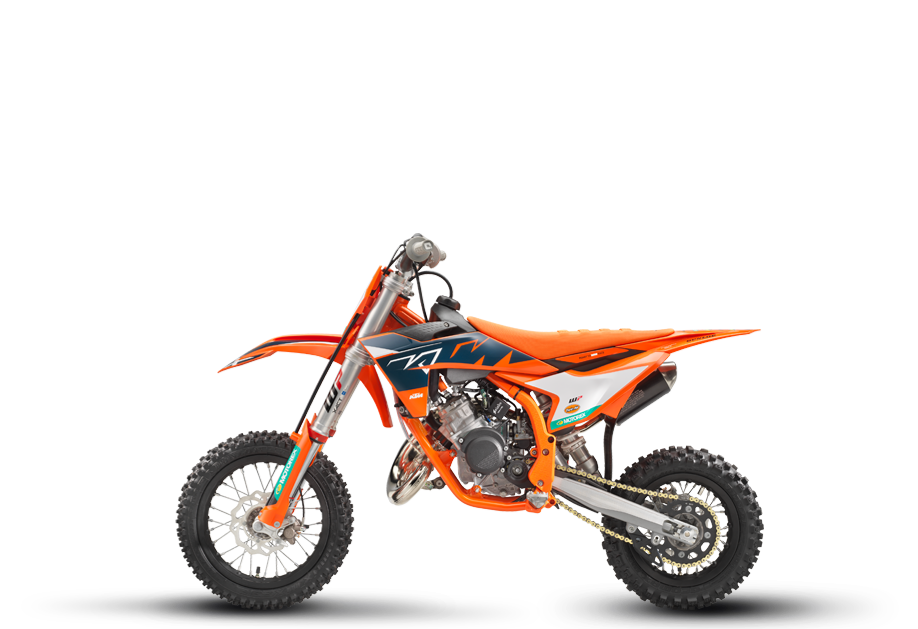

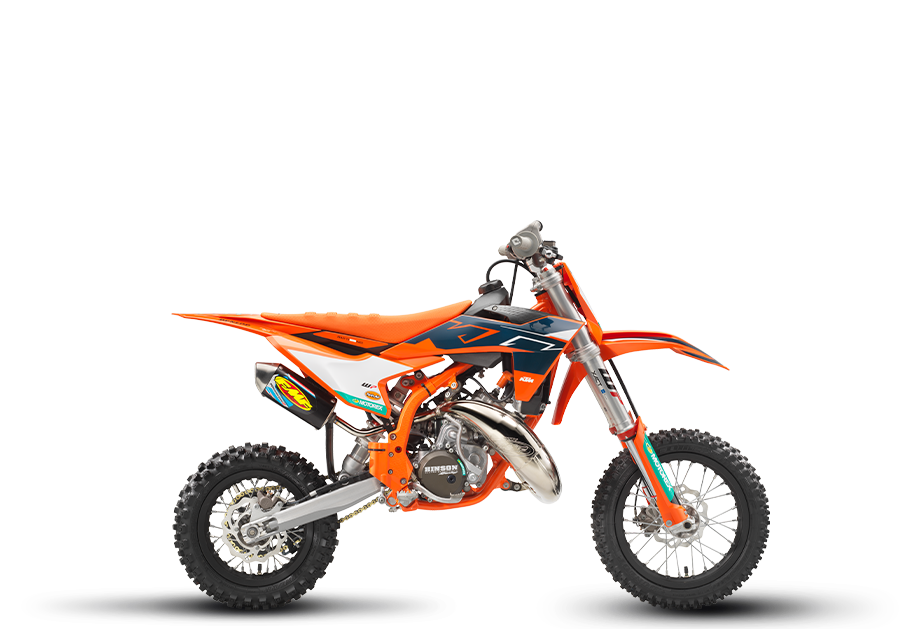

Racing creates emotion and fans, and this passion for competition and excellence can start at any age. The KTM 50 SX FACTORY EDITION is our nod to the future of the sport. Count on full READY TO RACE consideration with an advanced steel frame and an engine that won't disappoint. The bike boasts leading components such as DUNLOP Geomax MX53 tires, a FMF exhaust system, a new 35 mm WP XACT AER fork, a WP XACT monoshock, and a reworked hydraulic Formula brake system. All this, along with key similarities with the full-sized motocross range, superior levels of quality, and revolutionary height adjustability included. Don't forget those astonishing looks for the full 'factory' treatment.

Engine

Design

1-cylinder, 2-stroke engine

Displacement

49.9 cm³

Transmission

Single-speed automatic

EMS

Dell’Orto PHBG 19 BS

Engine oil

ATF "Motorex Dexron 3"

Clutch primary drive teeth

61

Primary drive

33:61

Clutch

Centrifugal clutch (adjustable)

Engine cylinder

Single cylinder

Engine stroke

2-Stroke

Chassis

Frame design

Central-tube frame with double-cradle

Front brake

Disc brake

Rear brake

Disc brake

Rear subframe design

Steel / Polyamide Glass Fiber

Chain

415, Non-sealed

Suspension

Front suspension

XACT 35 WP Upside-Down fork, Ø 35 mm

Rear suspension

XACT WP mono shock

Suspension travel (front)

200.6 mm

Suspension travel (rear)

190.5 mm

Front suspension adjustment

Compression and rebound adjustable

Rear suspension setting

Compression and rebound adjustable

Dimensions

Seat height

653 mm

Ground clearance

233 mm

Tank capacity (approx.)

2.3 l
