FOR WHEN MOTHER NATURE SAYS NO

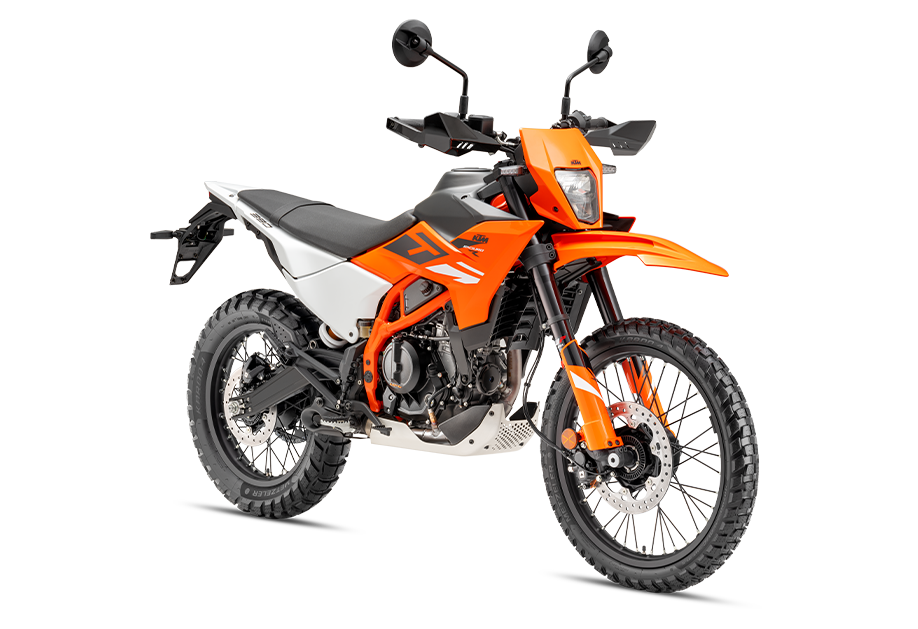

When deciding the ultimate route between points A and B, the KTM 390 ENDURO R owns every avenue. With exceptional, lightweight handling and punchy performance on both tarmac and dirt tracks, this middle-weight bruiser is ready to take on any road or commute. Packing state-of-the-art rider aids, adjustable suspension, and aggressive, enduro-inspired styling into a complete middle-weight package, the KTM 390 ENDURO R is ready for anything.

Engine

Design

1-cylinder, 4-stroke engine

Displacement

398.7 cm³

Power

45 PS

Torque

39 Nm

Transmission

6-speed

CO2 emissions

78 g/km

Cooling

Liquid cooled

Engine cylinder

Single cylinder

EMS

Bosch EMS with RBW

Engine oil

Motorex Formula 4T 15W/50

Engine stroke

4-Stroke

Drive type

Combustion

Chassis

Front brake disc diameter

285 mm

Front brake disc diameter

11.22 inch

Rear brake disc diameter

240 mm

Rear brake disc diameter

9.45 inch

Front brake

Bybre axial floating calipers with 2 pistons

Rear brake

Bybre floating caliper 1 piston

Chain

520 X-Ring

Frame design

Steel trellis frame, powder coated

Steering head angle

62.9 °

Rear subframe design

Bolt on steel trellis frame, powder coated

Trail

107 mm

Wheelbase

1475 mm

Suspension

Front suspension

WP APEX open cartridge 43mm

Rear suspension

WP APEX Split Piston

Suspension travel (front)

230 mm

Suspension travel (rear)

230 mm

Suspension travel (front)

9.06 inch

Suspension travel (rear)

9.06 inch

Front suspension adjustment

Compression and rebound adjustable

Front suspension addition

Comp. and Reb. Adjustable - 30 Clicks

Rear suspension adjustment

Preload with top ring

Rear suspension addition

Preloand with top ring and Reb. with 20 clicks

Dimensions

Seat height

890 mm

Tank capacity (approx.)

9 l

Ground clearance

272 mm

Weight (without fuel)

159 kg

Tank capacity (approx.)

2.38 US gal

Weight fully fueled

165 kg

Wheels

1.85 x 21"; 2.5 x 18"
