RELEASE THE RUCKUS

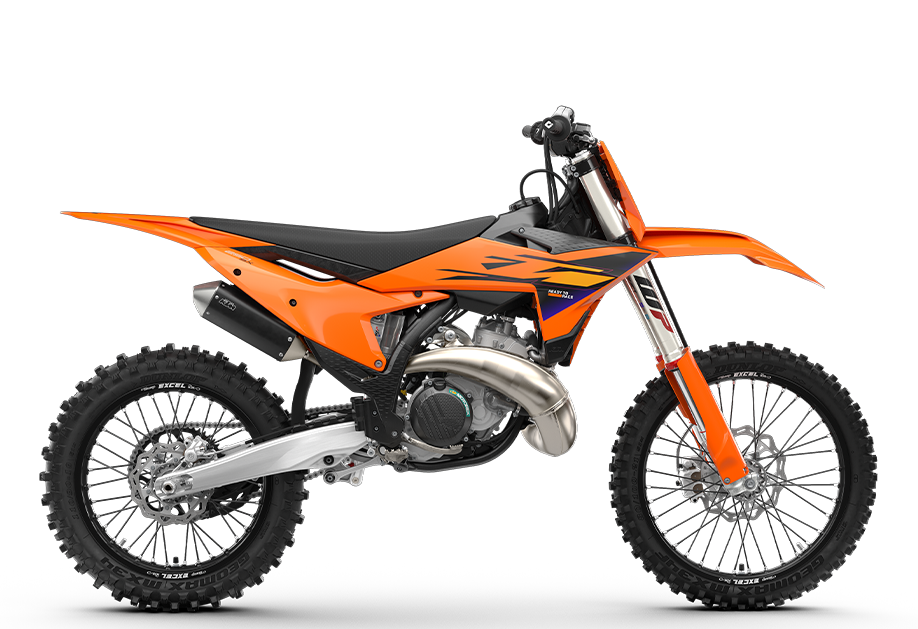

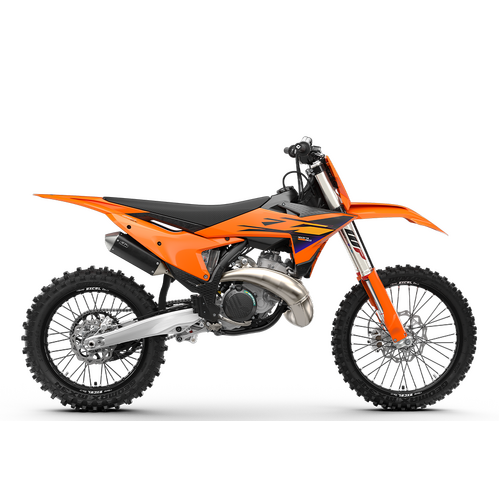

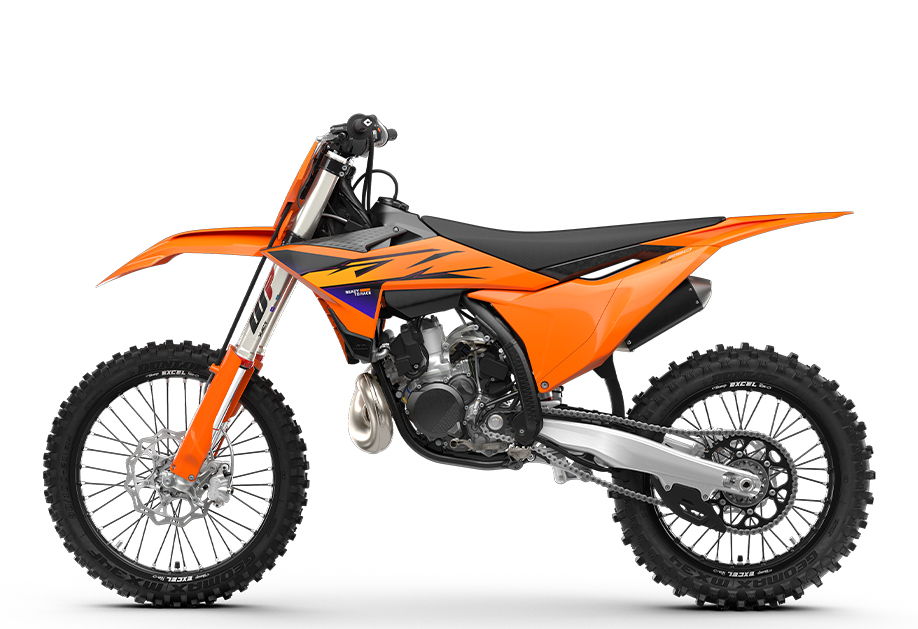

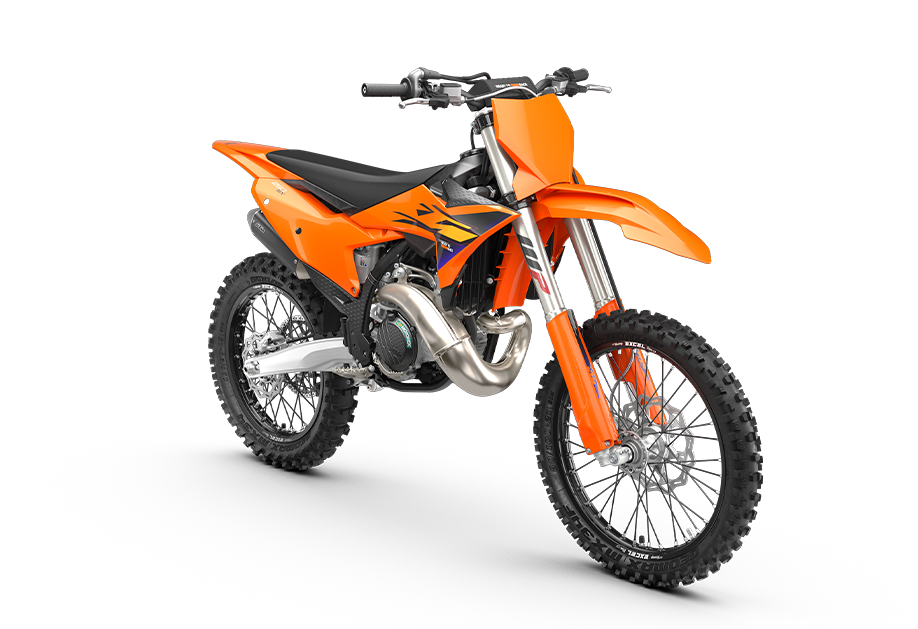

Think "unbridled 2-stroke performance" and you'll probably see a KTM 250 SX in your mind's eye. For good reason too - there isn't much to compare it to. The KTM 250 SX takes that even further with a slew of fresh chassis enhancements, making it even more of a legend and one deserving of the record books.

Engine

Design

1-cylinder, 2-stroke engine

Displacement

249 cm³

Transmission

5-speed

Fuel-mixture generation

Keihin EFI, throttle body 39 mm

Clutch primary drive teeth

72

Primary drive

26:72

Clutch

Wet, DDS multi-disc clutch, Brembo hydraulics

Clutch type

DDS multi-disc wet clutch

Clutch operation

Brembo hydraulics

Engine cylinder

Single cylinder

Engine stroke

2-Stroke

Chassis

Frame design

Central double-cradle-type 25CrMo4 steel

Front brake

Disc brake

Rear brake

Disc brake

Rear subframe design

Aluminum-reinforced polyamide

Chain

520, Non-sealed

Suspension

Front suspension

WP XACT-USD (AER), Ø 48 mm

Rear suspension

WP XACT Monoshock with linkage

Suspension travel (front)

310 mm

Suspension travel (rear)

300 mm

Front suspension adjustment

Compression (high and low speed), rebound

Rear suspension setting

Compression and rebound adjustable

Dimensions

Seat height

958 mm

Ground clearance

354 mm

Tank capacity (approx.)

7.2 l
