FIND YOUR LIMIT

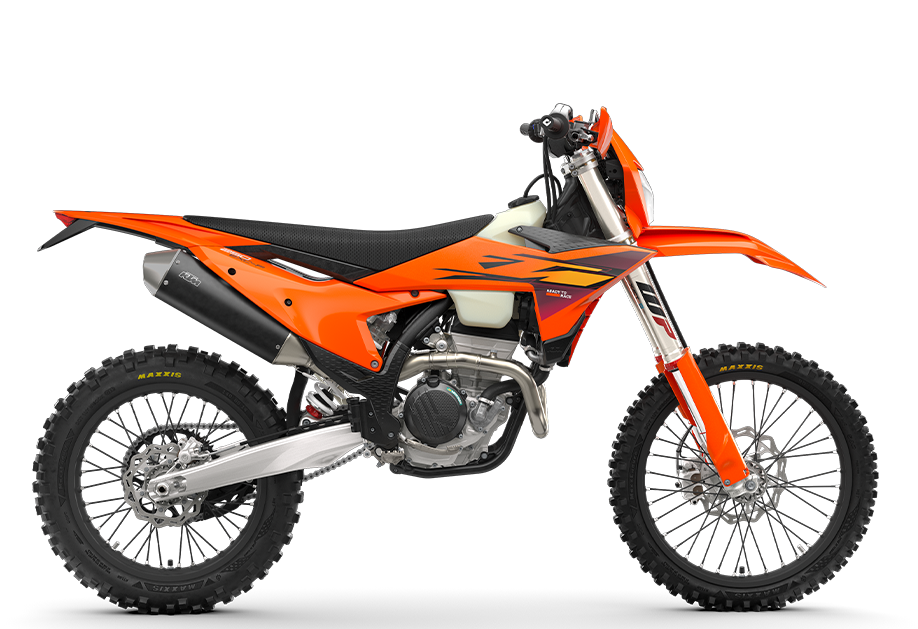

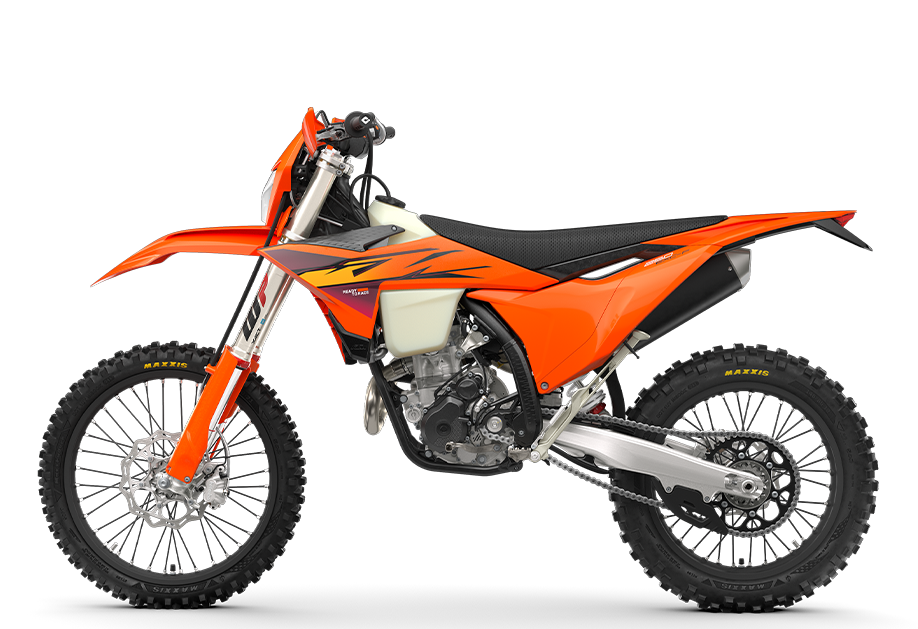

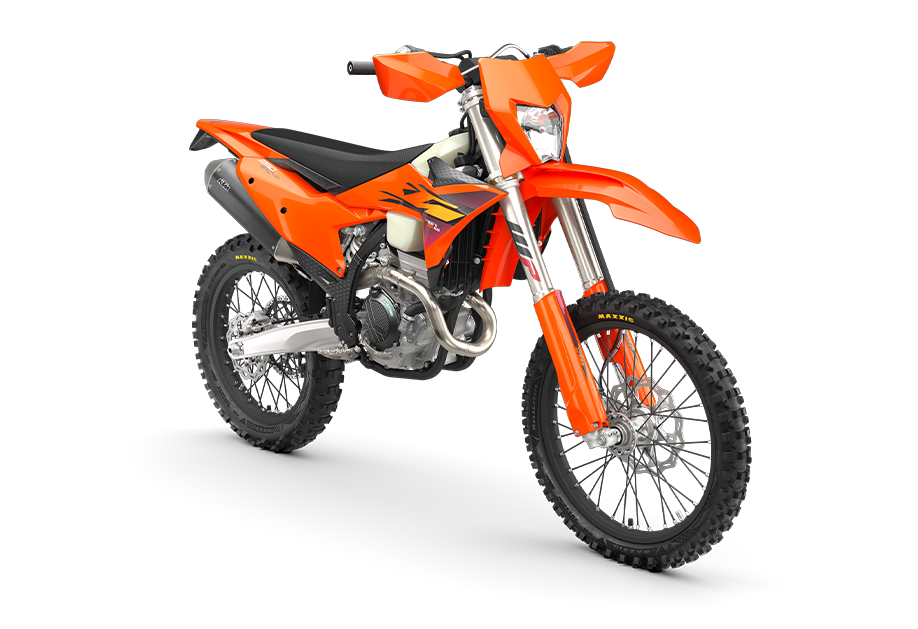

The KTM 250 EXC-F has been the go-to package for serious weekend warriors and seasoned race champions for years - and for good reason. Class-leading handling, ample low-down torque, and confidence-building rideability make it easy to ride fast and challenge all limits. It is ready to charge toward the limit. The question is: Are you ready to set that same limit for yourself?

Engine

Design

1-cylinder, 4-stroke engine

Displacement

249.92 cm³

Transmission

6-speed

Fuel-mixture generation

Keihin EFI, throttle body 42 mm

EMS

Keihin EMS

Clutch primary drive teeth

72

Primary drive

24:72

Clutch

Wet, DDS multi-disc clutch, Brembo hydraulics

Engine cylinder

Single cylinder

Engine stroke

4-Stroke

Chassis

Frame design

Central double-cradle-type 25CrMo4 steel

Front brake

Disc brake

Rear brake

Disc brake

Rear subframe design

Aluminum-reinforced polyamide

Chain

520 X-Ring

Suspension

Front suspension

WP XACT-USD, Ø 48 mm

Rear suspension

WP XPLOR shock absorber with PDS

Suspension travel (front)

300 mm

Suspension travel (rear)

310 mm

Front suspension adjustment

Compression and rebound adjustable

Rear suspension setting

Compression and rebound adjustable

Rear suspension addition

Preload adjuster

Dimensions

Seat height

963 mm

Ground clearance

347 mm

Tank capacity (approx.)

8.5 l

Weight (without fuel)

106 kg
