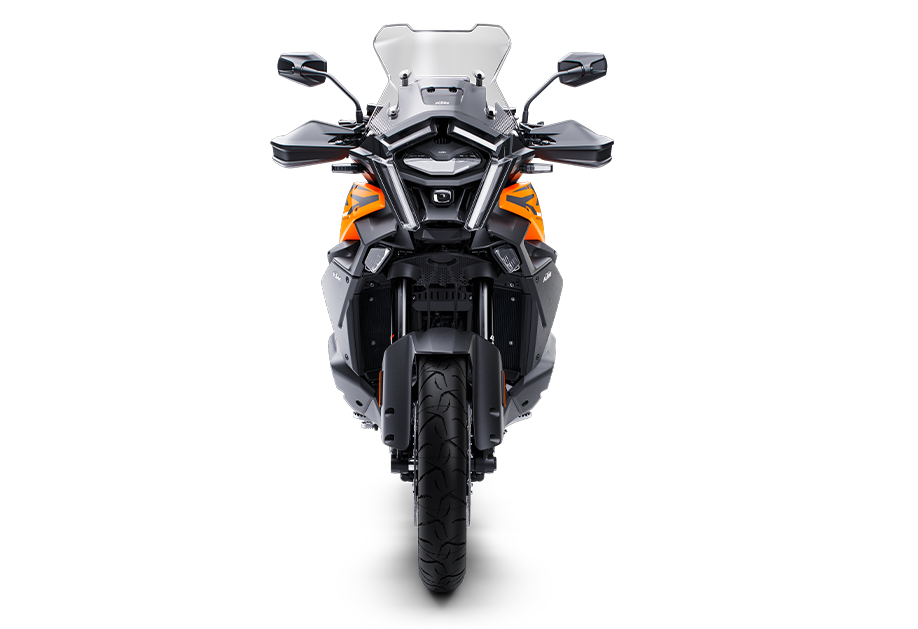

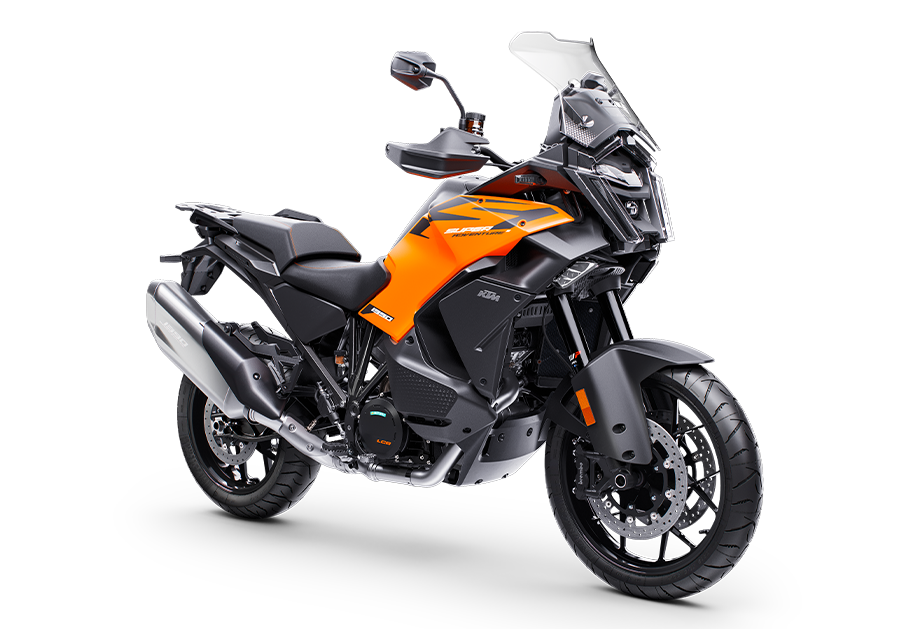

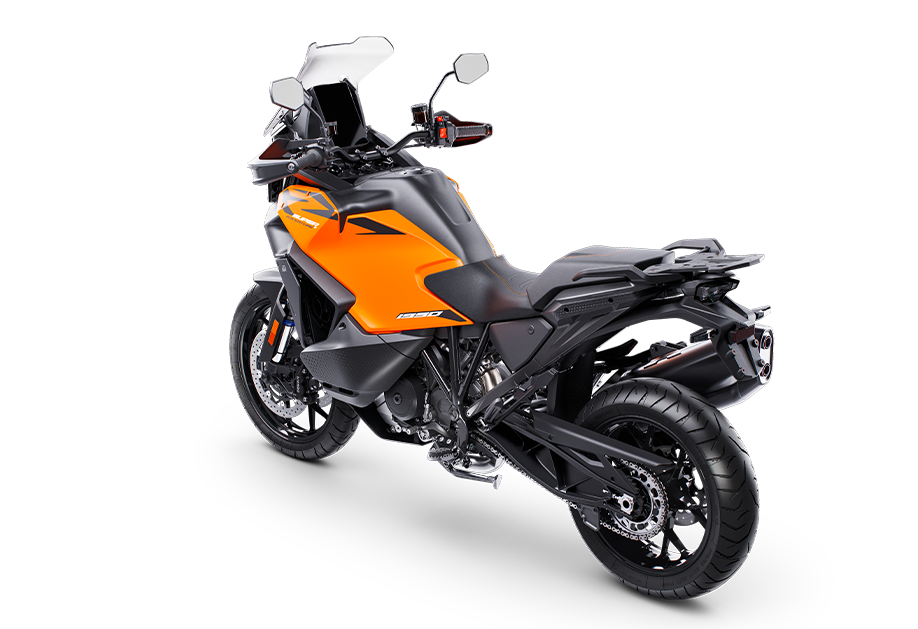

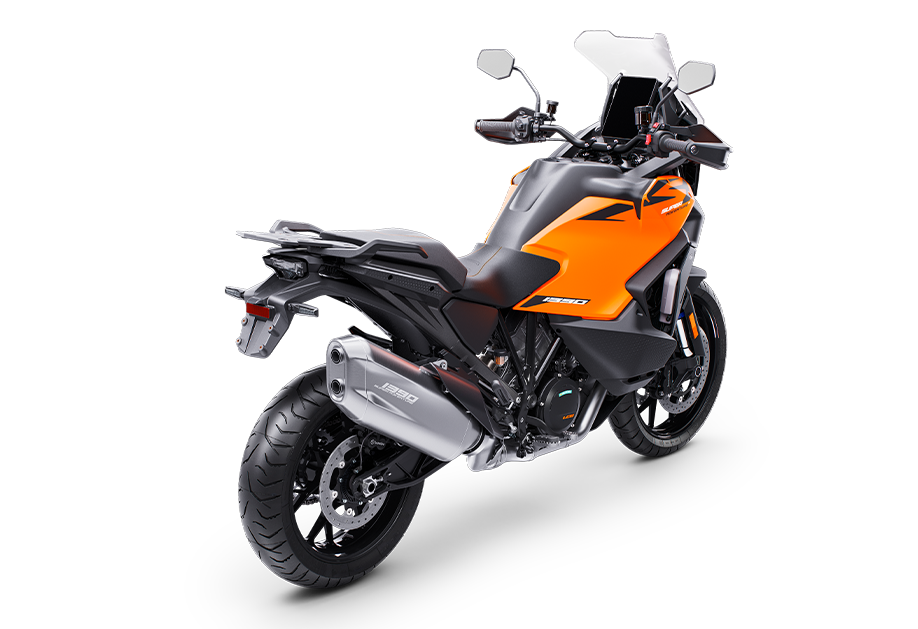

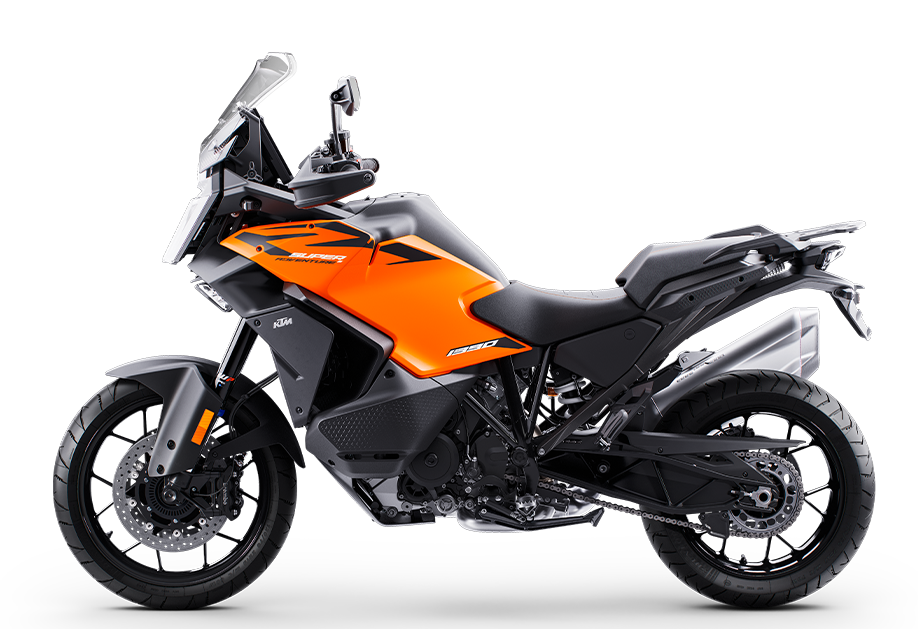

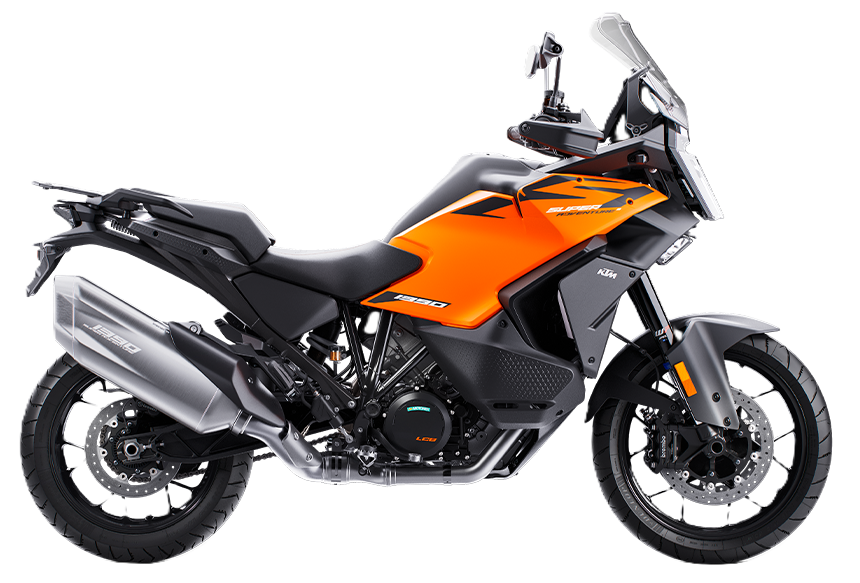

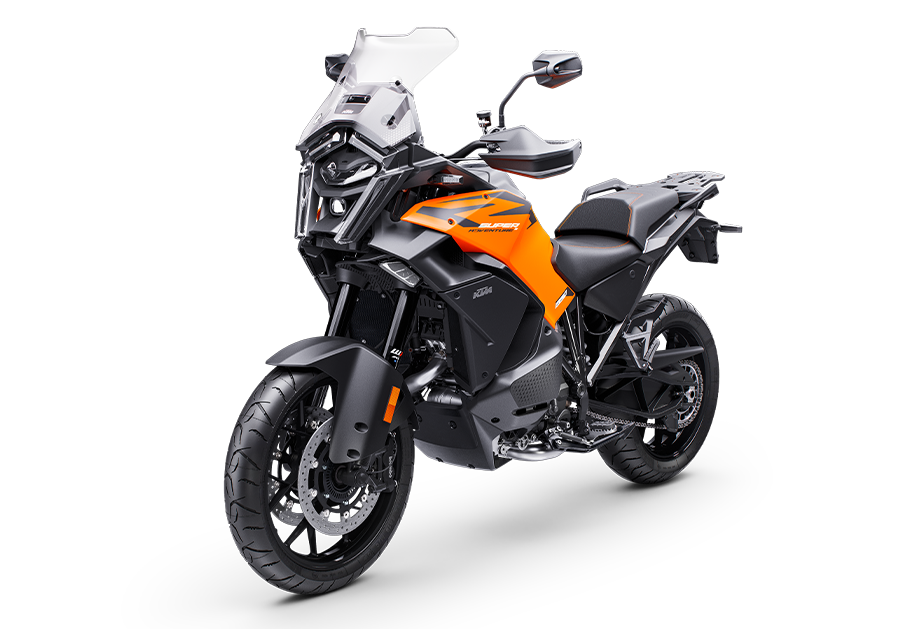

The KTM 1390 SUPER ADVENTURE S is for thrill-seekers who live for fast-paced adventure and demand the control of a manual transmission. Boasting fresh new tech, muscular looks, and a 173 PS punch, the S is aimed at riders who want to explore the world on the tarmac - but with the option to hit the dirt if it calls - this street-eating Adventure machine is engineered to cover ground. Fast.

Engine

Design

2-cylinder, 4-stroke, V 75°

Displacement

1350 cm³

Power

173 PS

Torque

145 Nm

Transmission

6-speed

CO2 emissions

139.5 g/km

Cooling

Liquid cooled with water/oil heat exchanger

Engine cylinder

Twin cylinder

EMS

Keihin EMS with RBW, twin ignition

Engine oil

Motorex, SAE 10W-50

Silencer material

Stainless steel

Silencer type

Silencer

Chassis

Front brake

2 x Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm

Rear brake

Brembo 2-piston, fixed caliper, brake disc Ø 267 mm

Chain

525 X-Ring

Frame design

Chromium-Molybdenum-Steel trellis frame, powder coated

Steering head angle

65.3 °

Rear subframe design

Aluminium, powder-coated

Trail

110 mm

Wheelbase

1558 mm

Suspension

Front suspension

WP SAT (semi-active technology) Upside-Down Ø 48 mm

Rear suspension

WP SAT (semi-active technology) shock absorber

Suspension travel (front)

220 mm

Suspension travel (rear)

220 mm

Front suspension adjustment

Semi-active, electronically regulated preload

Dimensions

Seat height

847/867 mm

Wheelbase

1558 ± 15 mm

Tank capacity (approx.)

23 l

Ground clearance

223 mm

Weight (without fuel)

227 kg

Weight fully fueled

244 kg

Wheelbase tolerance

15 mm

Front wheel diameter

19 "

Rear wheel diameter

17 "

Front wheel width

3.50 "

Rear wheel width

5 "

Wheels

3.50 x 19"; 5 x 17"

Wheels

Cast aluminium wheels
