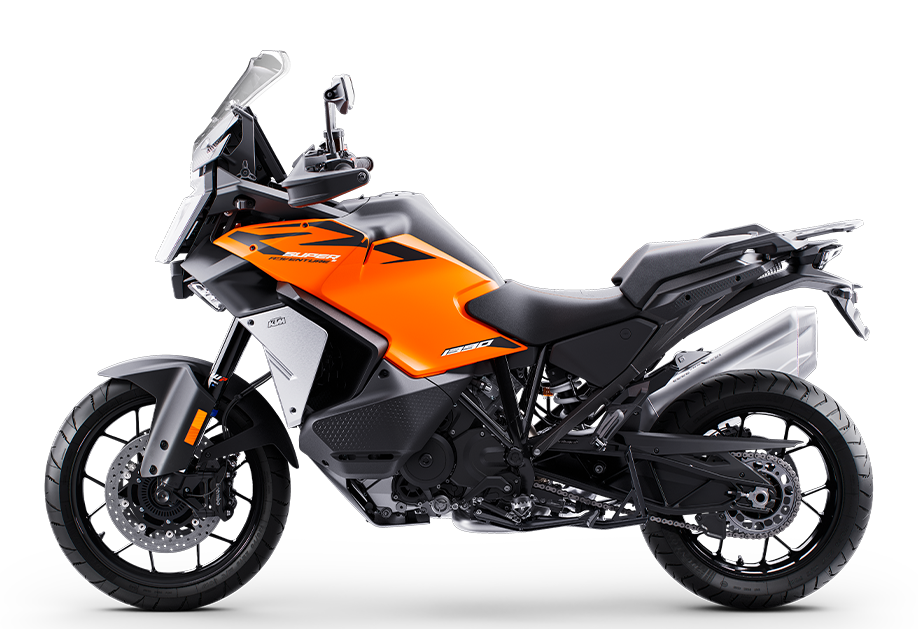

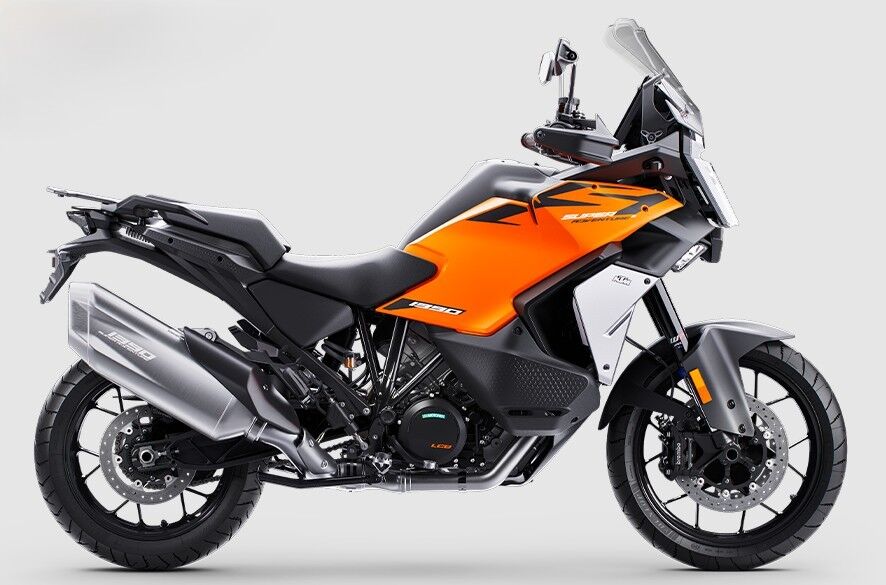

They say evolution is inevitable wherever life exists. In that case, the KTM 1390 SUPER ADVENTURE S EVO proves that statement. It also reinforces the statement that more is more, bringing a truckload of new tech to the fore, like KTM's revolutionary AMT. This new-generation travel machine is the next step in Adventure evolution: more intelligent, more powerful, and more calculating than all that has come before it.

Engine

Design

2-cylinder, 4-stroke, V 75°

Displacement

1350 cm³

Power

173 PS

Torque

145 Nm

Transmission

6-speed

CO2 emissions

139.5 g/km

Cooling

Liquid cooled with water/oil heat exchanger

Engine cylinder

Twin cylinder

EMS

Keihin EMS with RBW, twin ignition

Engine oil

Motorex, SAE 10W-50

Drive type

Combustion

Silencer material

Stainless steel

Chassis

Front brake disc diameter

320 mm

Rear brake disc diameter

267 mm

Front brake

2 x 4-piston caliper, radially mounted, brake disc

Rear brake

Brembo 2-piston, fixed caliper, brake disc Ø 267 mm

Chain

525 X-Ring

Frame design

Chromium-Molybdenum steel trellis frame, powder coated

Steering head angle

65.3 °

Rear subframe design

Aluminium, powder-coated

Trail

110 mm

Wheelbase

1558 mm

Suspension

Front suspension

WP SAT (semi-active technology) Upside-Down Ø 48 mm

Rear suspension

WP SAT (semi-active technology) shock absorber

Suspension travel (front)

220 mm

Suspension travel (rear)

220 mm

Front suspension adjustment

Semi-active, electronically regulated preload

Dimensions

Seat height

847/867 mm

Wheelbase

1558 ± 15 mm

Tank capacity (approx.)

23 l

Ground clearance

223 mm

Weight (without fuel)

227 kg

Wheels

3.5 x 19"; 5 x 17"

Wheels

Cast aluminium wheels
