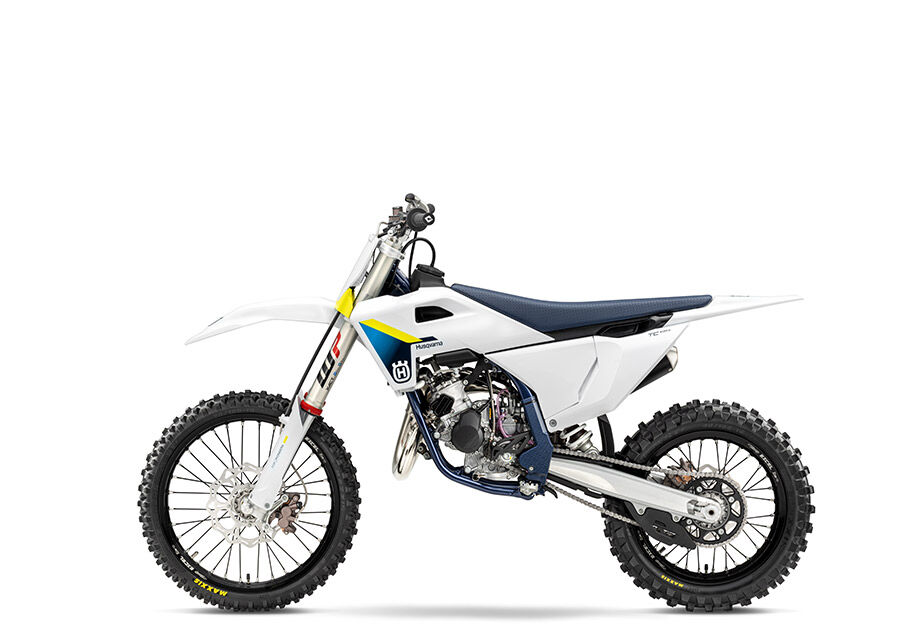

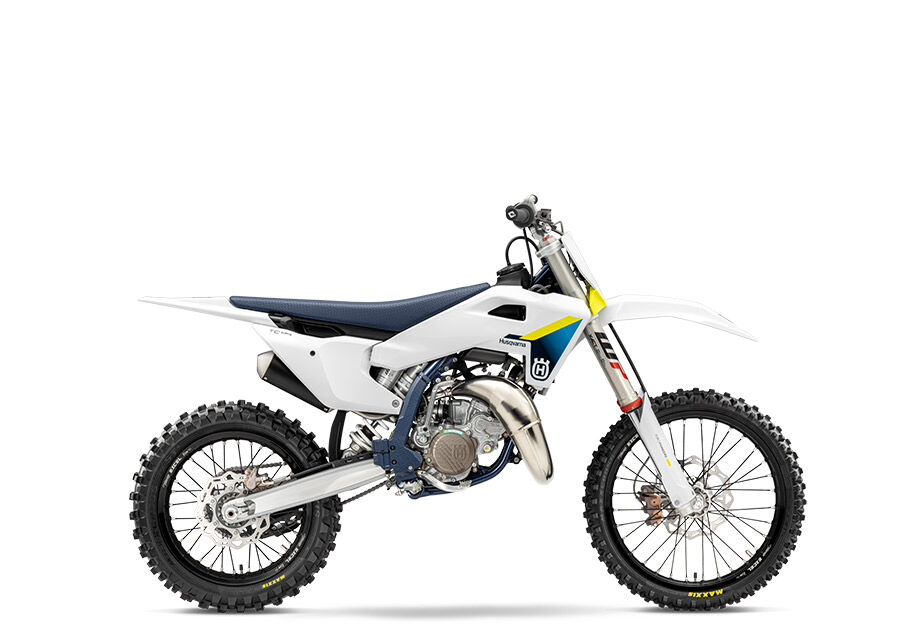

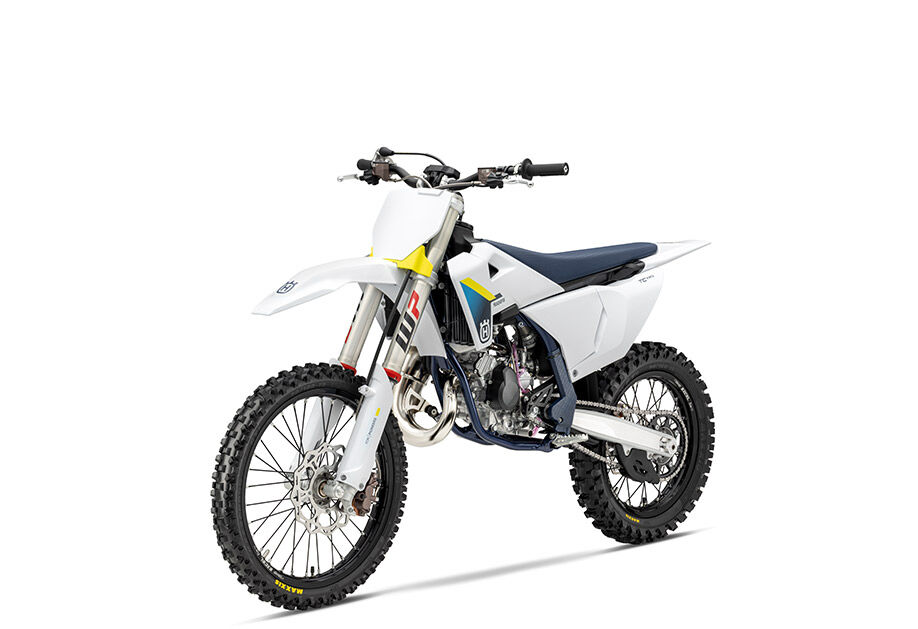

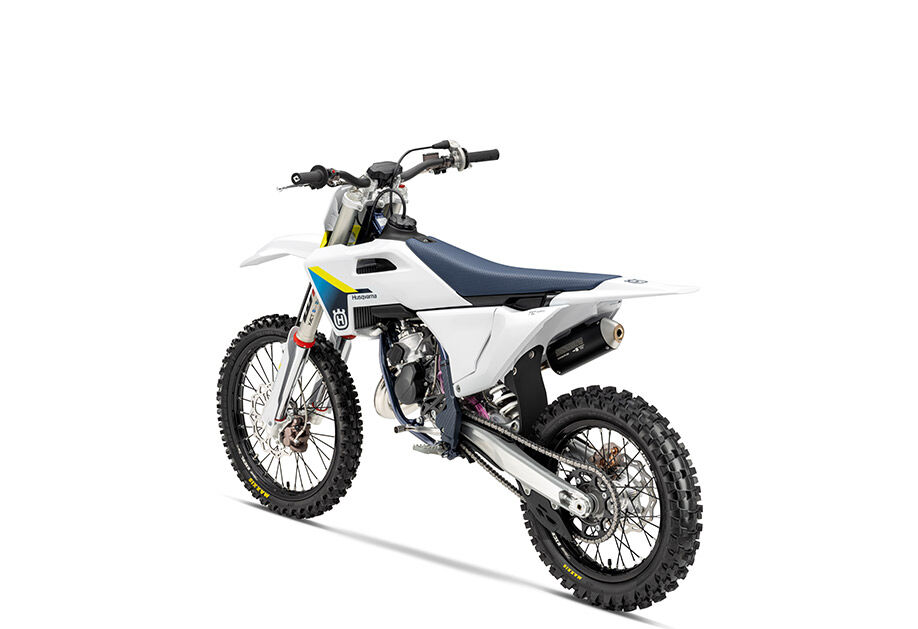

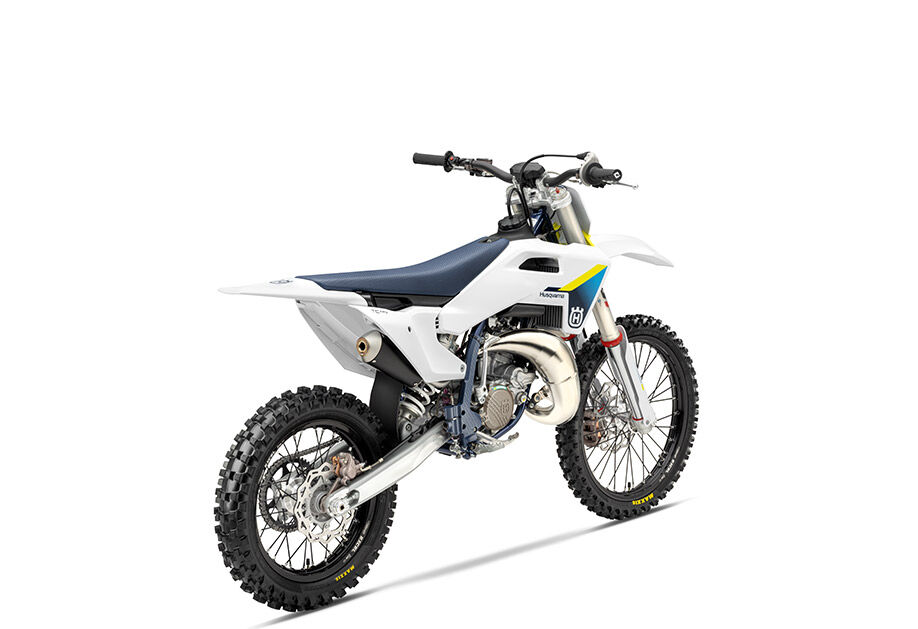

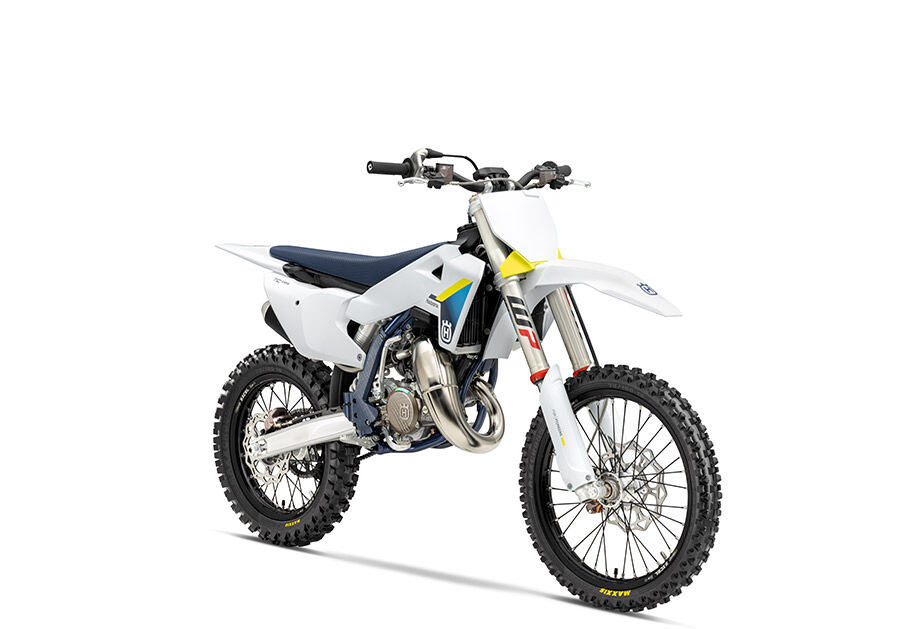

With a 17" front wheel and 14" rear wheel, the smaller version of the TC 85 bridges the gap between the TC 65 and the larger TC 85 perfectly. The modern 85 cc 2-stroke engine is designed and built to deliver best-in-class performance, with the power customisable thanks to two pre-set maps. A tailored suspension set-up can be achieved easily using the adjustable WP components, while all riders will benefit from the light and agile chassis on track. An extensive list of race-tested parts from respected brands such as Formula, Galfer, Neken, Pankl, and Twin Air underlines the premium specification of the TC 85.

Engine

  • Transmission 6-speed
  • Cooling Liquid cooled
  • Secondary gear ratio 13:46
  • Starter Kickstarter
  • Stroke 48.95 mm
  • Bore 47 mm
  • Clutch Wet, multi-disc clutch, Formula hydraulics
  • Displacement 84.9 cm³
  • EMS Keihin PWK 28
  • Design 1-cylinder, 2-stroke engine

Chassis

  • Weight (without fuel)68 kg
  • Tank capacity (approx.)5 l
  • Wheelbase 1282 mm
  • Front brake disc diameter 240 mm
  • Rear brake disc diameter 220 mm
  • Front brake Disc brake
  • Rear brake Disc brake
  • Chain 428, Non-sealed
  • Frame design Central-tube frame with double-cradle
  • Front suspension XACT 43 WP Upside-Down fork, Ø 43 mm
  • Ground clearance 308 mm
  • Handlebar Aluminium, tapered Ø 28/22 mm
  • Rear suspension XACT WP PDS mono shock
  • Seat height 835 mm
  • Silencer Aluminium
  • Steering head angle 63.5 °
  • Rear subframe design Aluminium / Polyamide Glass Fiber
  • Suspension travel (front)278 mm
  • Suspension travel (rear)289 mm
  • Tyre dimensions (front/rear)70/100; 90/100
  • Wheels 1.4 x 17"; 1.6 x 14"
