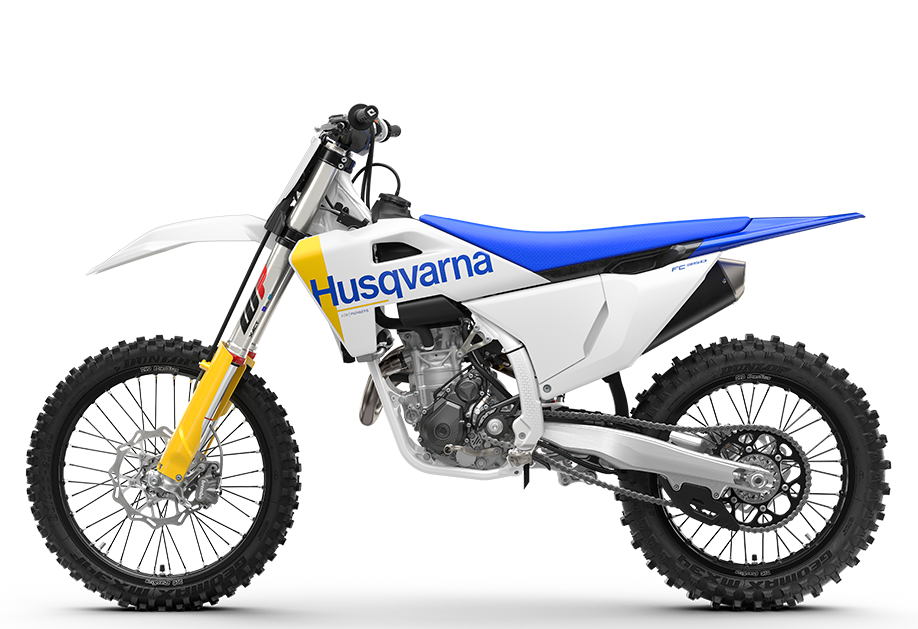

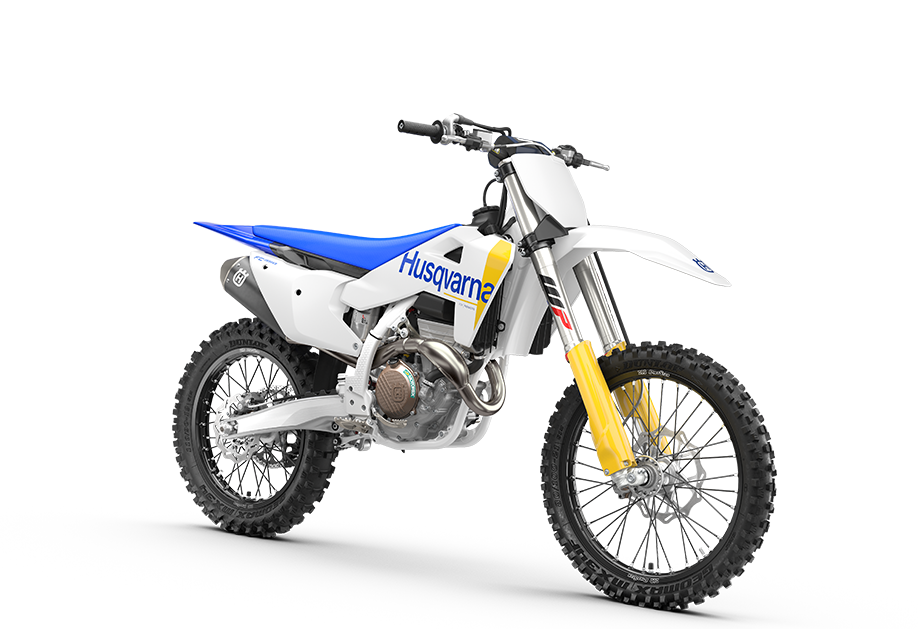

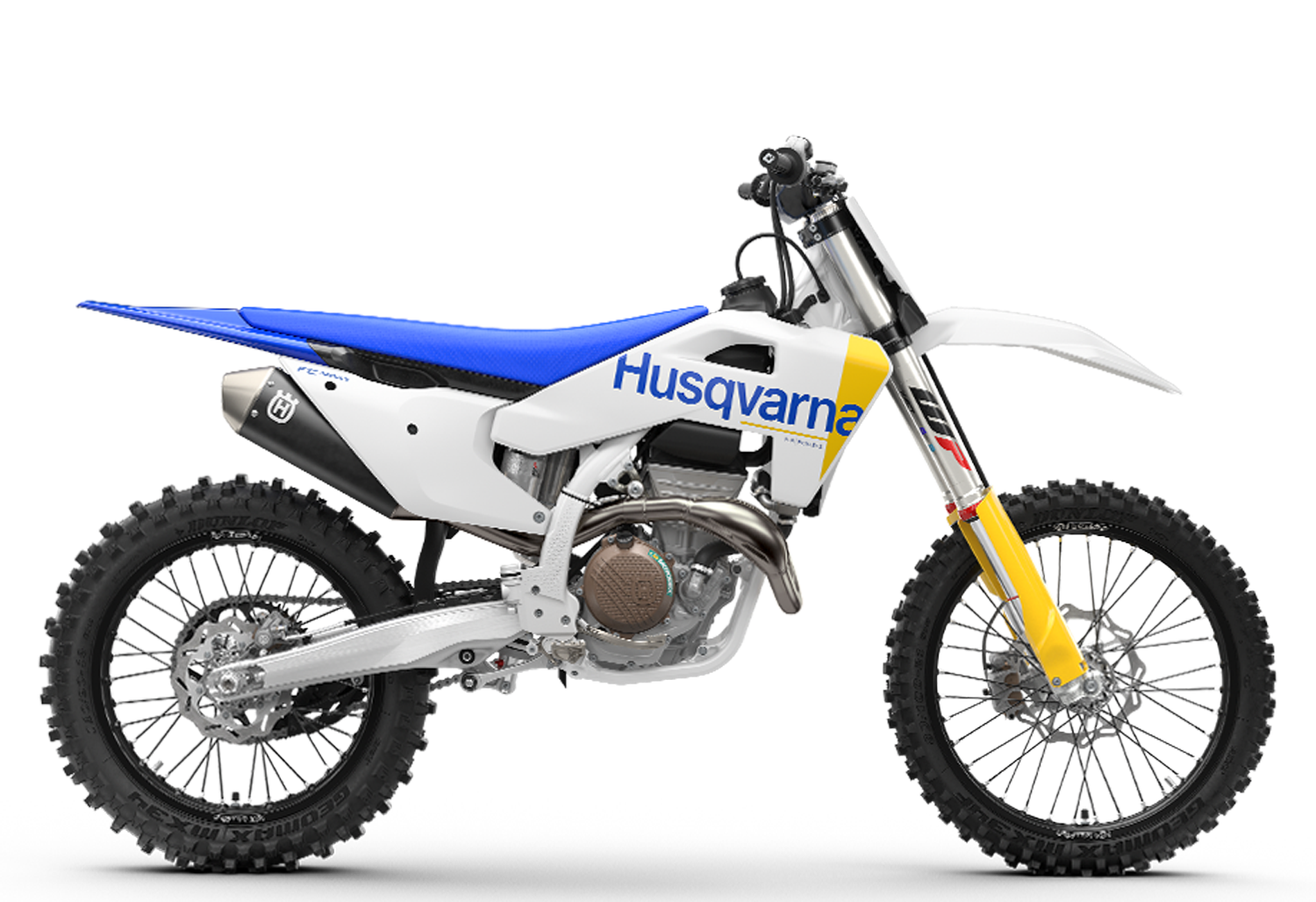

The FC 350 combines the agility of the FC 250 with a power-to-weight ratio to rival the FC 450. The FC 350 remains one of the most capable motocross bikes on the market. Ergonomic bodywork offers free and easy movement, with updated graphics completing the revisions for 2027.

Engine

  • Primary drive 24:72
  • Transmission 5-speed
  • Battery capacity 2 Ah
  • Cooling Liquid cooled
  • Secondary gear ratio 14:52
  • Starter Electric starter
  • Stroke 57.5 mm
  • Bore 88 mm
  • Clutch Wet multi-disc DS clutch, Brembo hydraulics
  • Compression ratio 14.6
  • Displacement 349.7 cm³
  • EMS Keihin EMS
  • Design 1-cylinder, 4-stroke engine
  • Fuel-mixture generation Keihin EFI, throttle body 44 mm

Chassis

  • Weight (without fuel) 102.5 kg
  • Tank capacity (approx.) 7.2 l
  • Wheelbase 1490 mm
  • Front brake disc diameter 260 mm
  • Rear brake disc diameter 220 mm
  • Front brake Disc brake
  • Rear brake Disc brake
  • Chain 520, Non-sealed
  • Frame design Central double-cradle-type 25CrMo4 steel
  • Front suspension WP XACT-USD, Ø 48 mm
  • Ground clearance 336 mm
  • Handlebar Pro Taper, Aluminium Ø 28/22 mm
  • Rear suspension WP XACT Monoshock with linkage
  • Seat height 946 mm
  • Silencer Aluminium
  • Steering head angle 63.9 °
  • Rear subframe design Aluminum-reinforced polyamide
  • Suspension travel (front) 305 mm
  • Suspension travel (rear) 293 mm
  • Tyre dimensions (front/rear) 80/100; 110/90
  • Wheels 1.6 x 21"; 2.15 x 19"
  • Wheels Spoked wheels with aluminium rims
  • Wheelbase  1490 ± 10 mm
