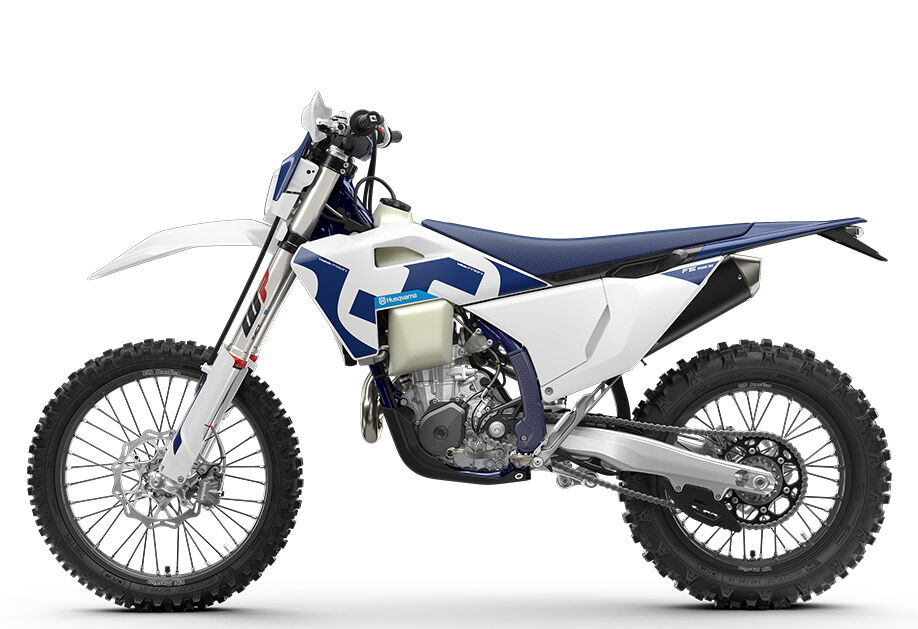

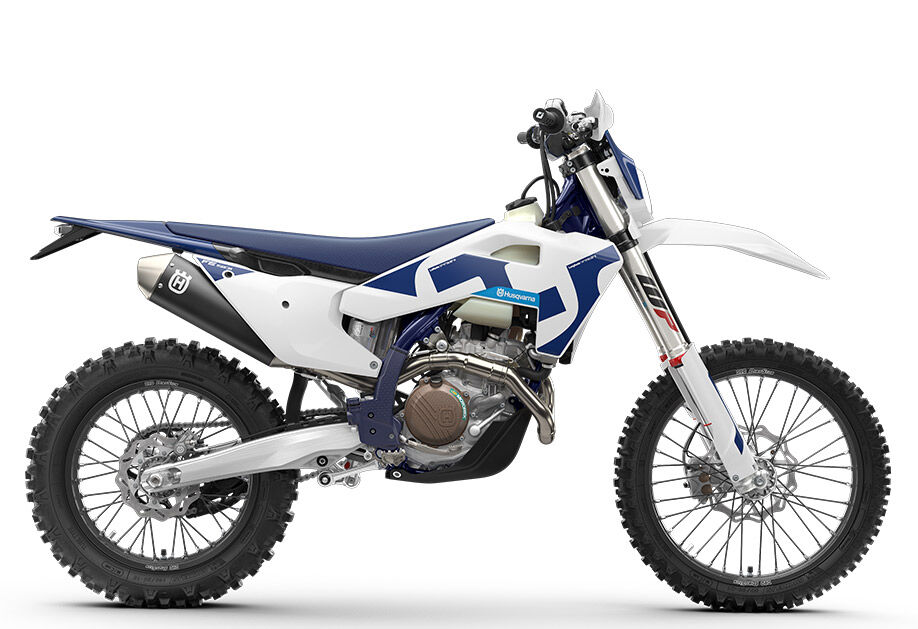

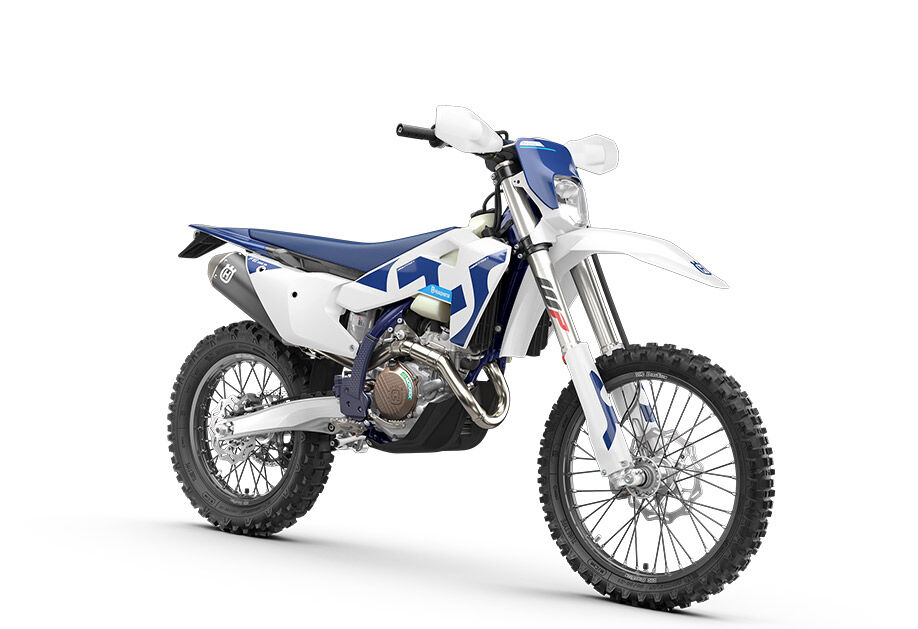

The FE 501 is the most powerful model in the Husqvarna enduro line-up. Advanced electronics allow the power delivery to be customised to suit individual rider preferences, ensuring control and enabling a personalised riding experience. Inside the engine, the shaft arrangements are positioned close to the centre of gravity. Combined with WP suspension and an agile chassis, this contributes to highly responsive handling. The enduro-specific 6-speed gearbox, manufactured by Pankl Racing Systems, engages a dedicated engine map for each gear to enhance rideability in all conditions. To complete the build, the FE 501 is characterised by Swedish-inspired graphics, which are applied to functional bodywork for a truly distinctive look.

Engine

  • Primary drive 29:72
  • Transmission 6-speed
  • Battery capacity 2 Ah
  • Cooling Liquid cooled
  • Secondary gear ratio 14:50
  • Starter Electric starter
  • Stroke 72 mm
  • Bore 95 mm
  • Clutch Wet, DDS multi-disc clutch, Brembo hydraulics
  • Compression ratio 12.75
  • Displacement 510.9 cm³
  • EMS Keihin EMS
  • Design 1-cylinder, 4-stroke engine
  • Fuel-mixture generation Keihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel)110.6 kg
  • Tank capacity (approx.)8.0 l
  • Wheelbase1489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Chain 520 X-Ring
  • Frame design Central double-cradle-type 25CrMo4 steel
  • Front suspension WP XACT cartridge Ø 48 mm
  • Ground clearance 343 mm
  • Handlebar Pro Taper, Aluminium Ø 28/22 mm
  • Rear suspension WP XACT Monoshock with linkage
  • Seat height952 mm
  • Silencer Aluminium
  • Steering head angle63.9 °
  • Rear subframe design Aluminum-reinforced polyamide
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • Tyre dimensions (front/rear)90/90; 140/80
  • Wheels1.60 x 21"; 2.15 x 18"
  • Wheels Spoked wheels with aluminium rims
  • Wheelbase1489 ± 10 mm
