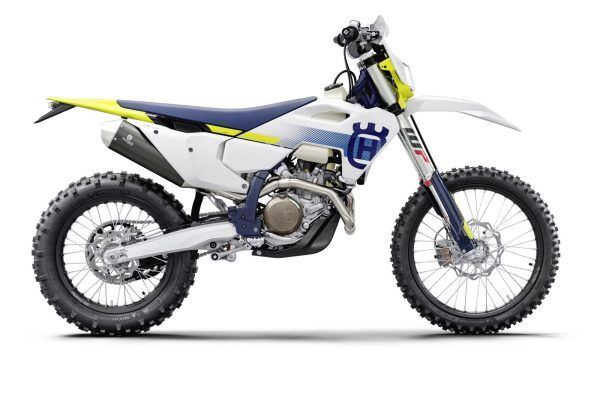

Enhanced with the latest technical innovations and producing more power than the previous generation, the FE 501 continues to be the most powerful machine in the Husqvarna Motorcycles enduro line-up. A new engine for 2024 produces a broader spread of controllable power and by positioning the engine shaft arrangements at the ideal centre of gravity, this vastly benefits manoeuvrability. Aiding this agile feel is the new chassis, which has been developed and manufactured using advanced engineering techniques, which together with new WP Suspension ensures enhanced comfort across rough terrain. Expertly assembled with high-quality components throughout, the FE 501 is finished with new functional bodywork adorned with white, yellow, and blue graphics inspired by the Swedish heritage of the brand.

Engine

  • Transmission 6-speed
  • Battery capacity 2 Ah
  • Cooling Liquid cooled
  • Starter Electric starter
  • Stroke 72 mm
  • Bore 95 mm
  • Clutch DDS wet multi-disc clutch, Braktec hydraulics
  • Compression ratio 12.75
  • Displacement 510.9 cm³
  • EMS Keihin EMS
  • Design 1-cylinder, 4-stroke engine
  • Fuel-mixture generation Keihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel)110.8 kg
  • Tank capacity (approx.)8 l
  • Wheelbase 1489 mm
  • Front brake disc diameter 260 mm
  • Rear brake disc diameter 220 mm
  • Front brake Disc brake
  • Rear brake Disc brake
  • Chain 520 X-Ring
  • Frame design Central double-cradle-type 25CrMo4 steel
  • Front suspension WP XACT cartridge Ø 48 mm
  • Ground clearance 343 mm
  • Handlebar Pro Taper, Aluminium Ø 28/22 mm
  • Rear suspension WP XACT Monoshock with linkage
  • Seat height952 mm
  • Silencer Aluminium
  • Steering head angle 63.9 °
  • Rear subframe design Aluminum-reinforced polyamide
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • Wheels Spoked wheels with aluminium rims
