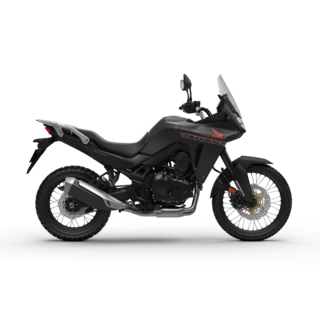

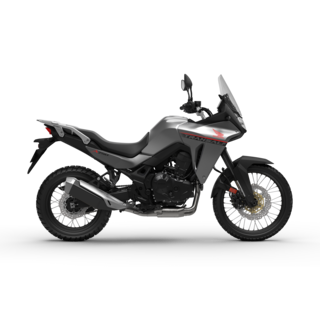

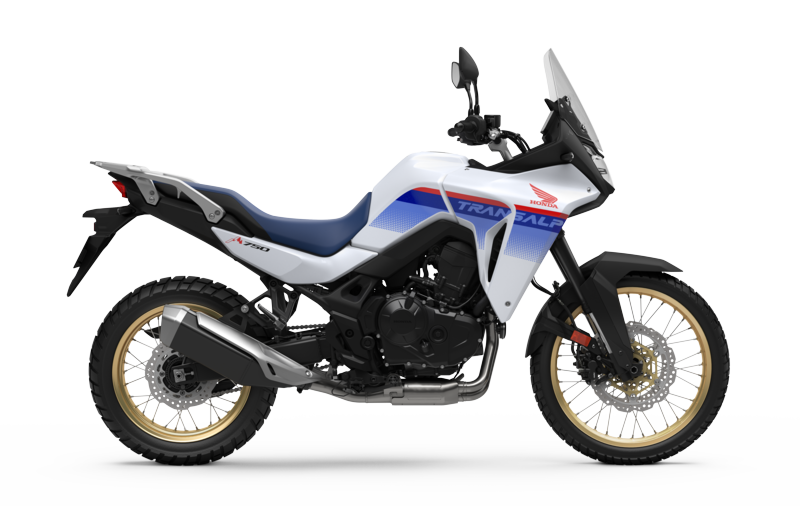

he XL750 Transalp takes inspiration from the original 1986 model with its sleek and clean bodywork. A smooth, comfortable, do-it-all crossover that’s designed to be at home everywhere. Featuring Honda’s newly developed 755cc parallel twin engine which has mountains of torque and plenty of engine character with its 270° crank. A steel diamond frame has been specially engineered to provide manoeuvrability for tight turns on mountain paths and comfort for adventure touring. The new Transalp projects an unmistakable feeling of adventure touring in a package that works superbly on the road.

  •
    • All new 755cc engine
    • 5 selectable ride modes
    • 5-inch full colour high-visibility TFT screen
    • Front inverted Showa Forks
    • Nimble 208kg kerb weight



Chassis
Brakes
Brakes (F) 2x 310mm discs, ABS
Brakes (R) 1x 256mm disc, ABS
Suspension
Front Adjustability preload
Front Suspension Type 43mm inverted telescopic fork
Front Wheel Travel (mm) 200
Rear Adjustability preload
Rear Suspension Type single shock
Rear Wheel Travel (mm) 190
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 16.9
Dimensions
Wheelbase (mm) 1,560
Ground Clearance (mm) 210
Overall Height (mm) 1,450
Overall Length (mm) 2,325
Overall Width (mm) 838
Seat Height (mm) 850
Weights
Kerb Weight (kg) 208
Powertrain
Engine
Bore & Stroke (mm) 87 x 63.5
Compression Ratio 11:01
Cylinders inline 2
Displacement (cc) 755
Engine Type liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 8
Transmission
Transmission 6-speed
Drive Chain
Tyres And Wheels
Tyres
Tyres (F) 90/90-21
Tyres (R) 150/70-18
Warranty
Warranty 24 Months
