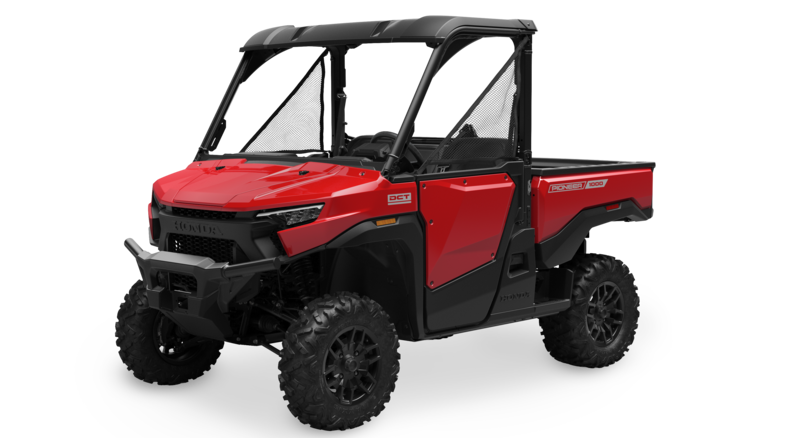

Work. Smart. The all-new 2026 Honda SXS1000 Pioneer Deluxe is built for the loads, the terrain, and the days that don't let up – with convenient new upgrades designed for farmers who need something reliable day in, day out, season after season.

  • 3 seats
  • Six-speed DCT transmission
  • Cruise control
  • Variable speed limiter
  • 1134kg towing capacityD1
  • 454kg bed capacity D1
  • Roof comes as standard
Chassis
Brakes
Brakes (F) 2x 210mm hydraulic disc
Brakes (R) 2x 210mm hydraulic disc
Steering
Power Steering STD
Suspension
Front Adjustability -
Front Suspension Type Independent double-wishbone
Front Wheel Travel (mm) 268
Rear Adjustability preload
Rear Suspension Type Independent double-wishbone
Rear Wheel Travel (mm) 255
Dimensions, Weights And Capacities
Capacities 30.5
Dimensions
Bed Dumping Angle
Turning Radius (m) 4.7
Wheelbase (mm) 2,038
Bed Height (mm)
Bed Length (mm)
Bed Width (mm)
Ground Clearance (mm) 350
Overall Height (mm) 2,034
Overall Length (mm) 3,025
Overall Width (mm) 1,625
Seat Height (mm)
Weights
Bed/Tray Weight Capacity (kg) 454
Kerb Weight (kg) 807
Max Weight Capacity (kg) 748
Towing Capacity (kg) 1,134
Powertrain
Engine
Bore & Stroke (mm) 92 x 75.1
Compression Ratio 10 : 1
Cylinders Inline 2
Displacement (cc) 999
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 8
Transmission
Drive Modes 2WD, 4WD, 4WD Lock, Turf
Transmission 6-speed DCT with reverse; manual and automatic modes
Drive Shaft
Tyres And Wheels
Tyres
Tyres (F) 27x9-14
Tyres (R) 27x11-14
Warranty
Warranty 3 years
