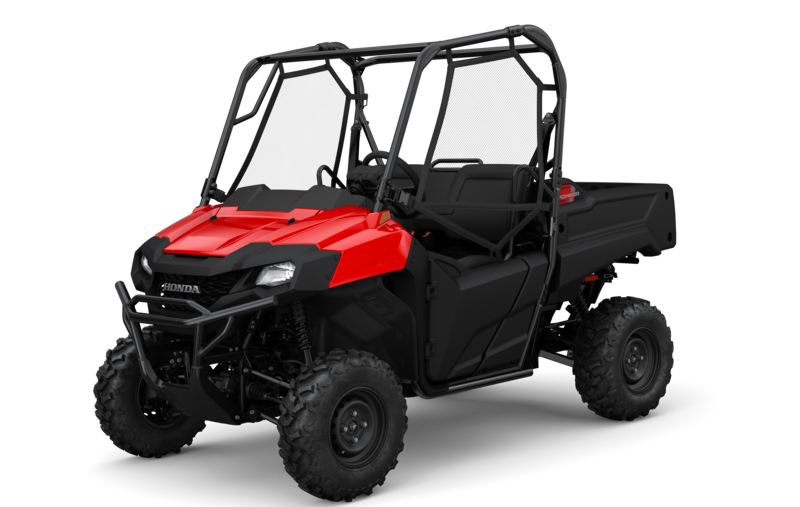

Honda’s Pioneer™ 700 is built for the demands of Australian farming, with engineering that supports long days, tough conditions and tight terrain. Its compact dimensions and responsive handling make it well‑suited to navigating busy work sites, while the available 2‑ and 4‑seat configurations give you flexibility for people and gear. Powered by Honda’s fuel‑injected 675cc liquid‑cooled OHV single‑cylinder four‑stroke engine, the Pioneer 700 is designed for dependable performance and practical capability. With a tight turning radius and a balance of size and functionality, it’s a machine ready to take on the everyday challenges of working the land.

Chassis
Brakes
Brakes (F) 2x 200mm discs
Brakes (R) 1x 170mm disc
Steering
Power Steering STD
Suspension
Front Adjustability -
Front Suspension Type Independent double-wishbone
Front Wheel Travel (mm) 200
Rear Adjustability -
Rear Suspension Type Independent double-wishbone
Rear Wheel Travel (mm) 231
Dimensions, Weights And Capacities
Capacities 30.5
Dimensions
Bed Dumping Angle
Turning Radius (m) 4.5
Wheelbase (mm)
Bed Height (mm)
Bed Length (mm)
Bed Width (mm)
Ground Clearance (mm) 279
Overall Height (mm) 1981
Overall Length (mm) 2914
Overall Width (mm) 1522
Seat Height (mm)
Weights
Bed/Tray Weight Capacity (kg) 454
Kerb Weight (kg) 600
Max Weight Capacity (kg) 650
Towing Capacity (kg) 680
Powertrain
Engine
Bore & Stroke (mm) 102 x 82.6
Compression Ratio 9.2:1
Cylinders 1
Displacement (cc) 675
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves
Transmission
Drive Modes 2WD, 4WD, 4WD Lock
Transmission 3-speed with reverse; manual and automatic modes
Drive Shaft
Tyres And Wheels
Tyres
Tyres (F) 25x8-12
Tyres (R)
