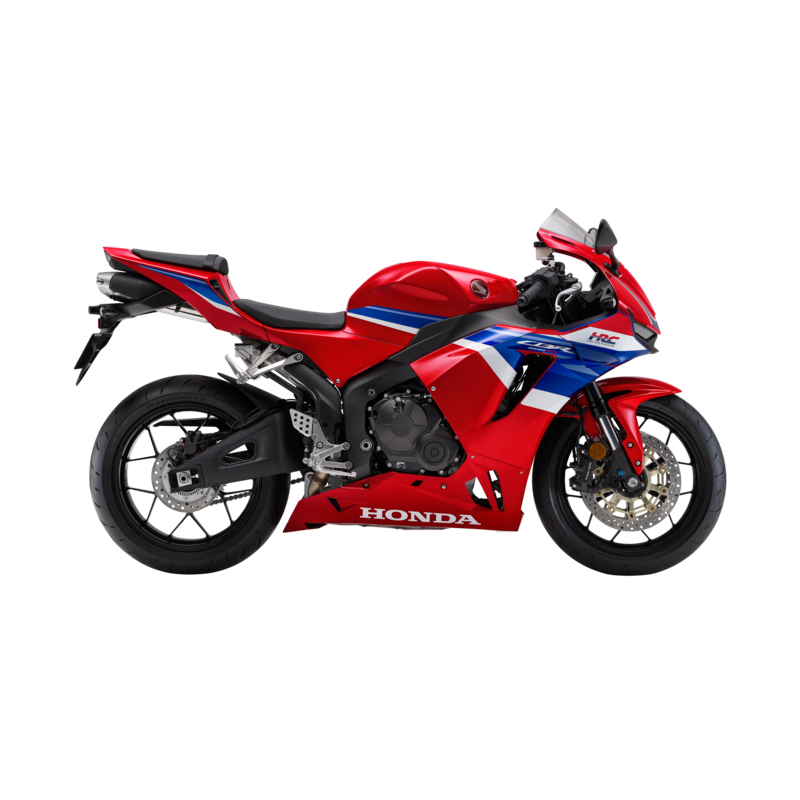

The CBR600RR is the embodiment of the values of "Total Control" pursued consistently throughout all CBR series. Featuring the best of the best, including aerodynamic management function and electronic controls derived from the RC213V. While lightweight and compact in size which enables agile handling, the CBR600RR is also defined by the high-power and controllable output.

Chassis

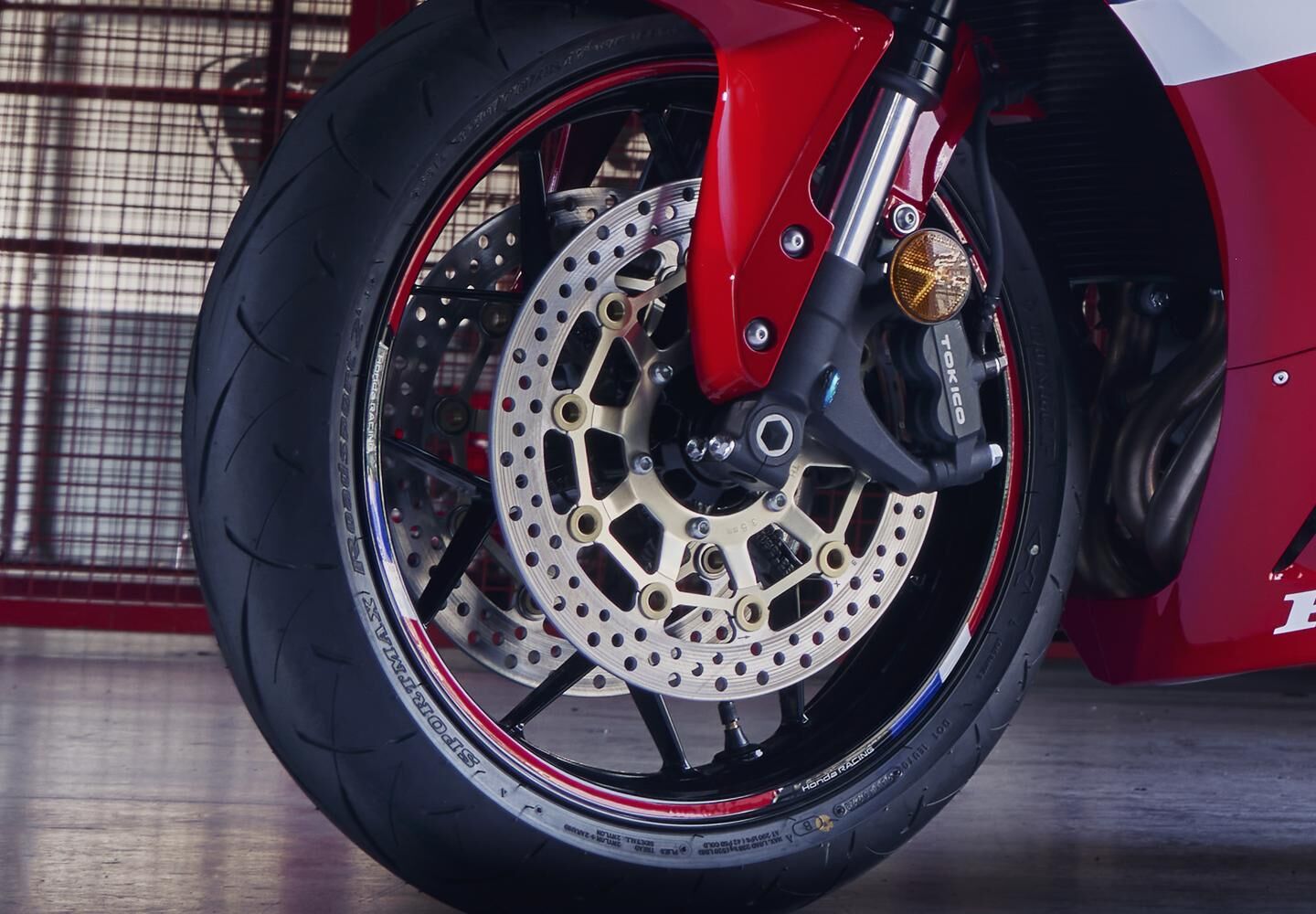

Brakes
Brakes (F) 2x 310mm discs
Brakes (R) 1x 220mm disc
Suspension
Front Adjustability -
Front Suspension Type 41mm inverted telescopic fork
Front Wheel Travel (mm) -
Rear Adjustability -
Rear Suspension Type single shock
Rear Wheel Travel (mm) -
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 18
Dimensions
Wheelbase (mm) 1,375
Ground Clearance (mm) 125
Overall Height (mm) 1,140
Overall Length (mm) 2,030
Overall Width (mm) 685
Seat Height (mm) 820
Weights
Kerb Weight (kg) 194
Powertrain

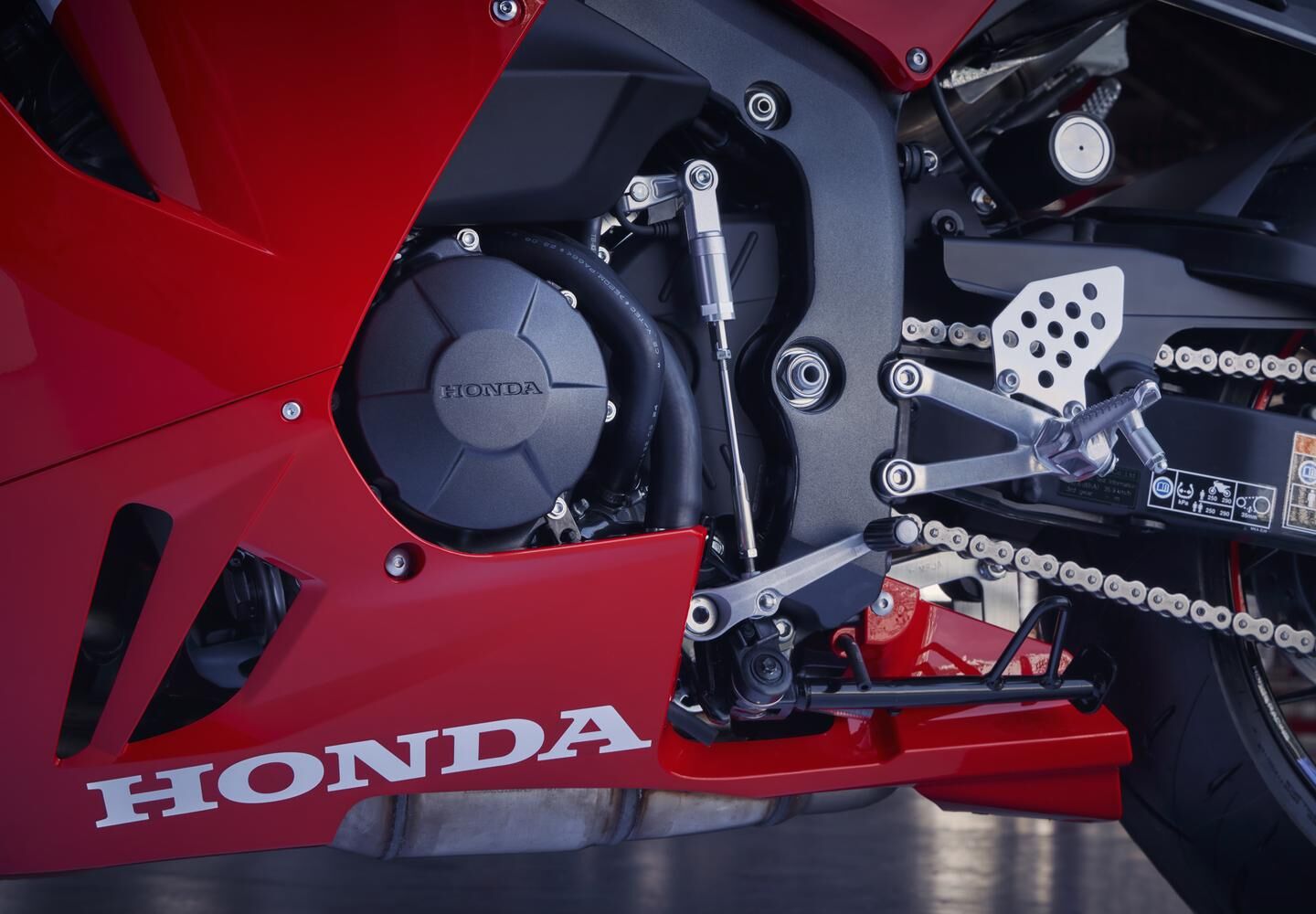

Engine
Bore & Stroke (mm) 67 x 42.5
Compression Ratio 12.2:1
Cylinders Inline 4
Displacement (cc) 599
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 16
Transmission
Transmission 6-speed
Drive Chain
Tyres And Wheels
Tyres
Tyres (F) 120/70-17
Tyres (R) 180/55-17
Warranty
Warranty 24 months
