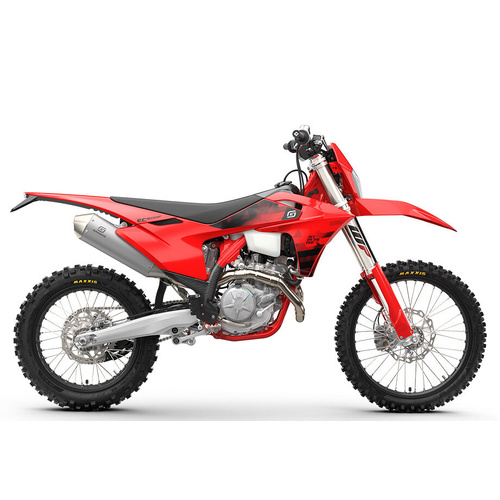

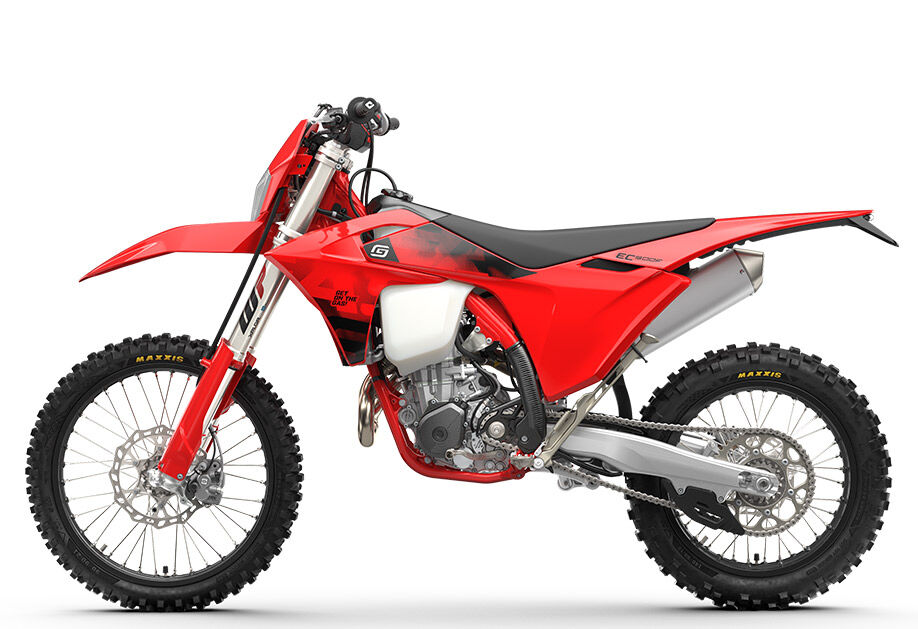

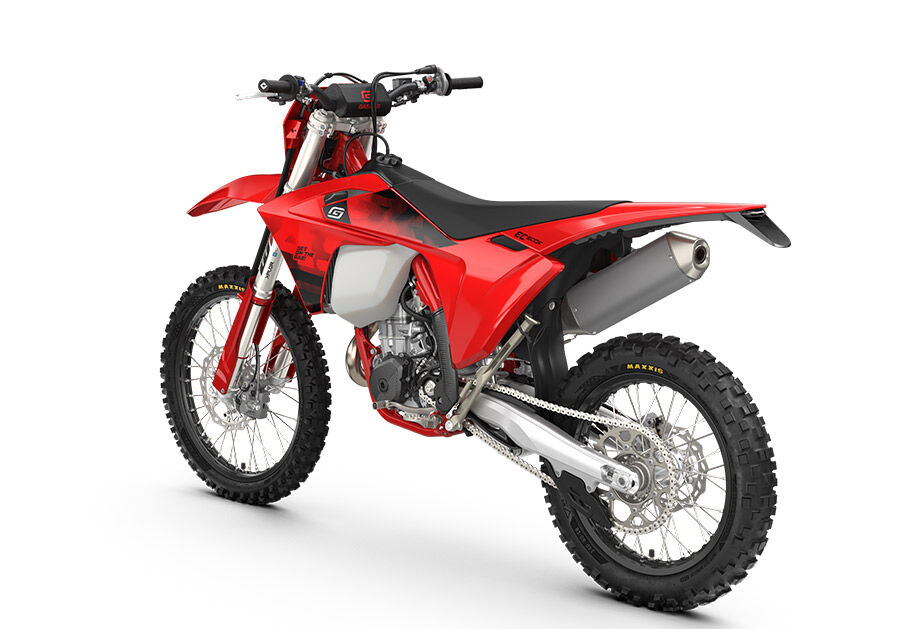

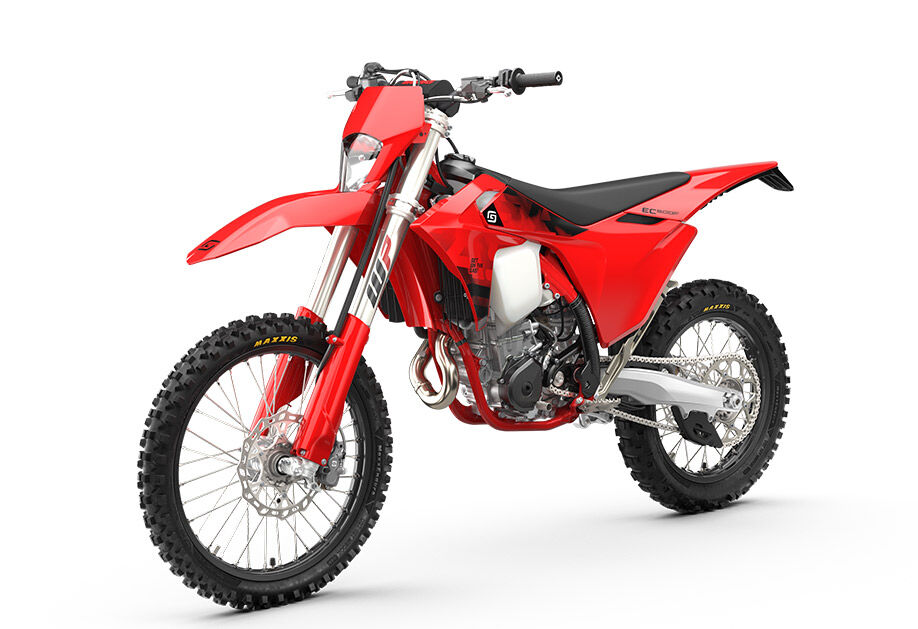

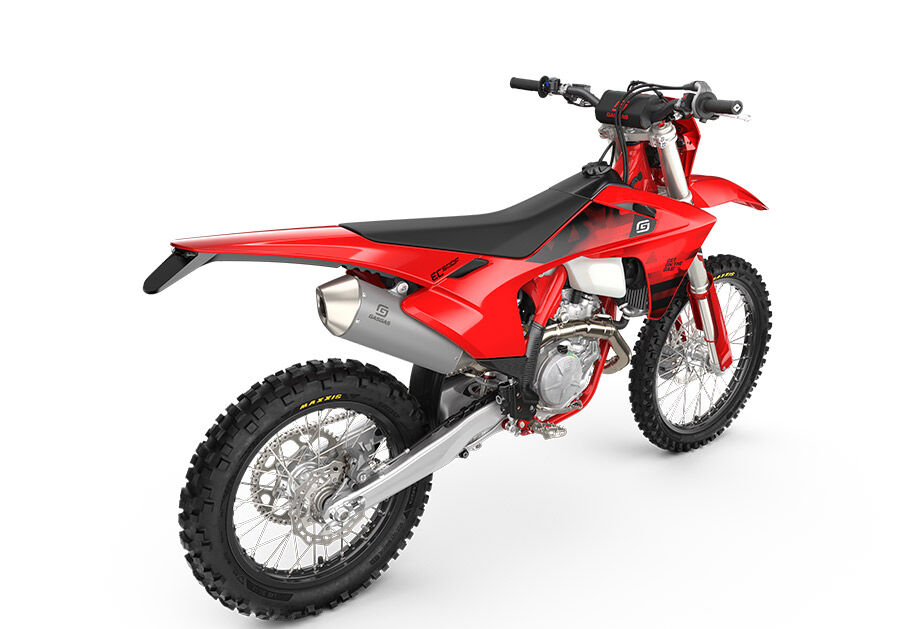

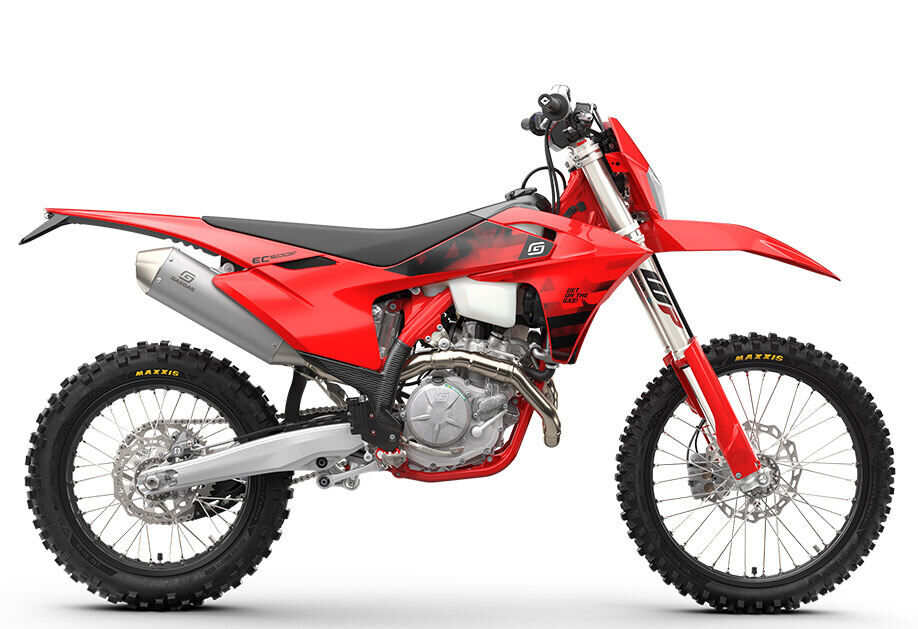

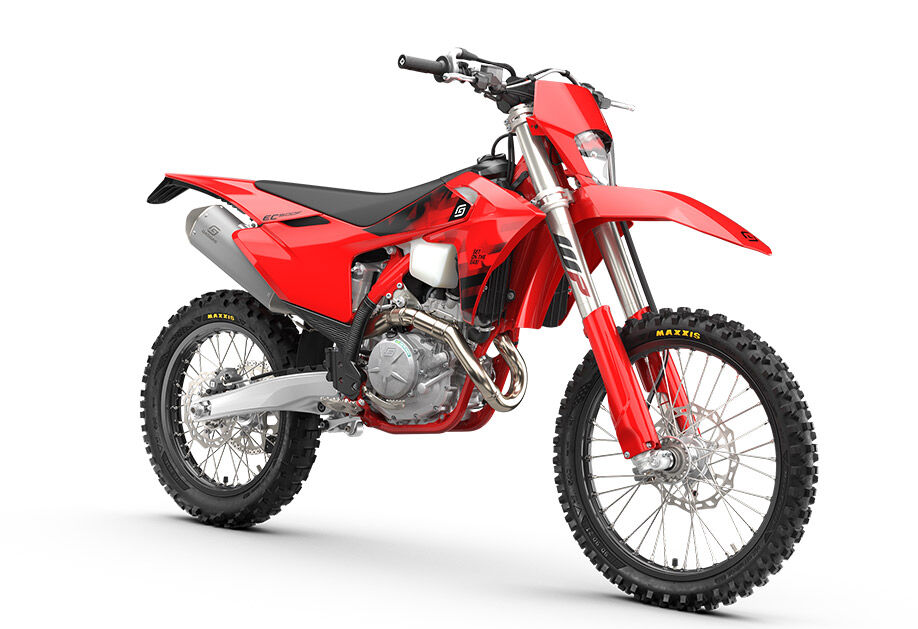

Big power, big fun, and built to go the distance - the EC 500F is your go-to machine for wide open trails and long days in the dirt. With a smooth and responsive SOHC motor, agile handling, and rider-focused electronics, this big-bore beast is surprisingly nimble. WP suspension keeps things planted, while the 6-speed transmission and traction-enhancing DDS clutch make sure you stay in control. Add in black rims, a black handlebar, and a bold new look, and you've got a serious enduro weapon that's ready to rip.

Engine

  • Primary drive 29:72
  • Transmission 6-speed
  • Battery capacity 2 Ah
  • Cooling Liquid cooled
  • Secondary gear ratio14:50
  • Starter Electric starter
  • Stroke 72 mm
  • Bore 95 mm
  • Clutch DDS wet multi-disc clutch, Braktec hydraulics
  • Compression ratio12.75
  • Displacement510.9 cm³
  • EMS Keihin EMS
  • Design1-cylinder, 4-stroke engine
  • Fuel-mixture generation Keihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel)111.7 kg
  • Tank capacity (approx.)9 l
  • Wheelbase1489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Front brake Disc brake
  • Rear brake Disc brake
  • Chain520 X-Ring
  • Frame design Central double-cradle-type 25CrMo4 steel
  • Front suspension WP XPLOR-USD, Ø 48 mm
  • Ground clearance343 mm
  • Handlebar Neken, aluminium Ø 28/22 mm
  • Rear suspension WP XACT Monoshock with linkage
  • Seat height 956 mm
  • Silencer Aluminium
  • Steering head angle63.9 °
  • Rear subframe design Aluminium
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • Tyre dimensions (front/rear)90/90; 140/80
  • Wheels1.6 x 21"; 2.15 x 18"
  • Wheelbase1489 ± 10 mm
