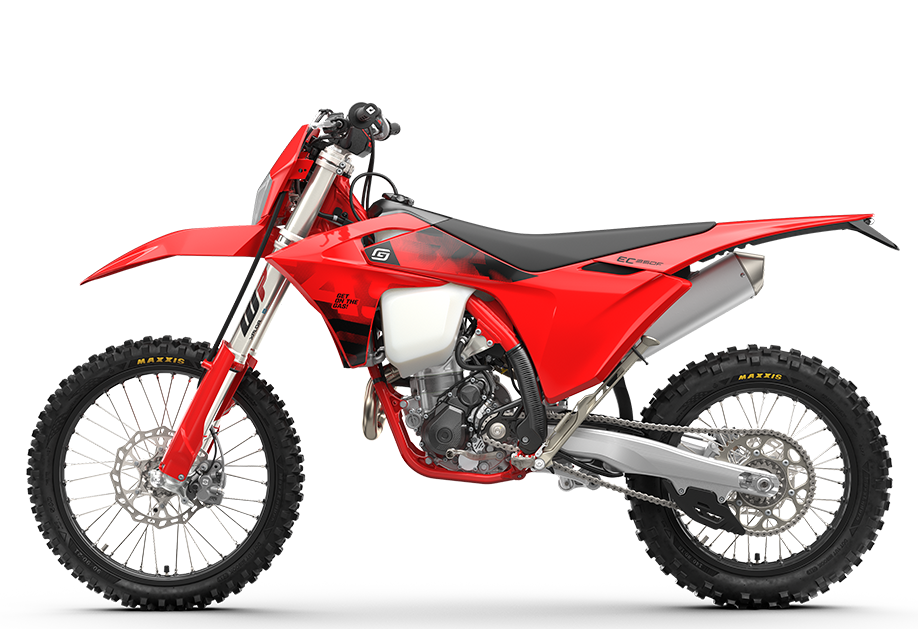

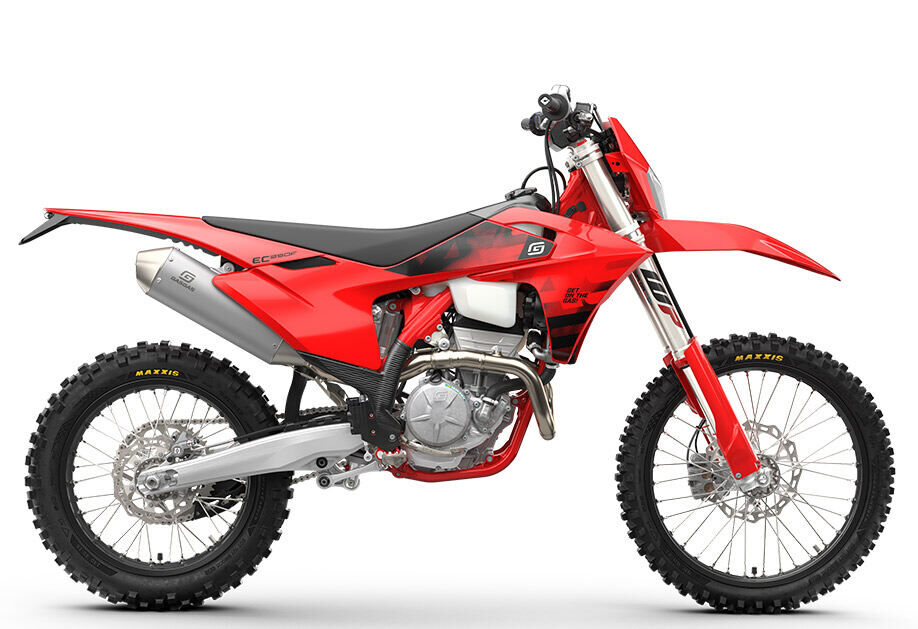

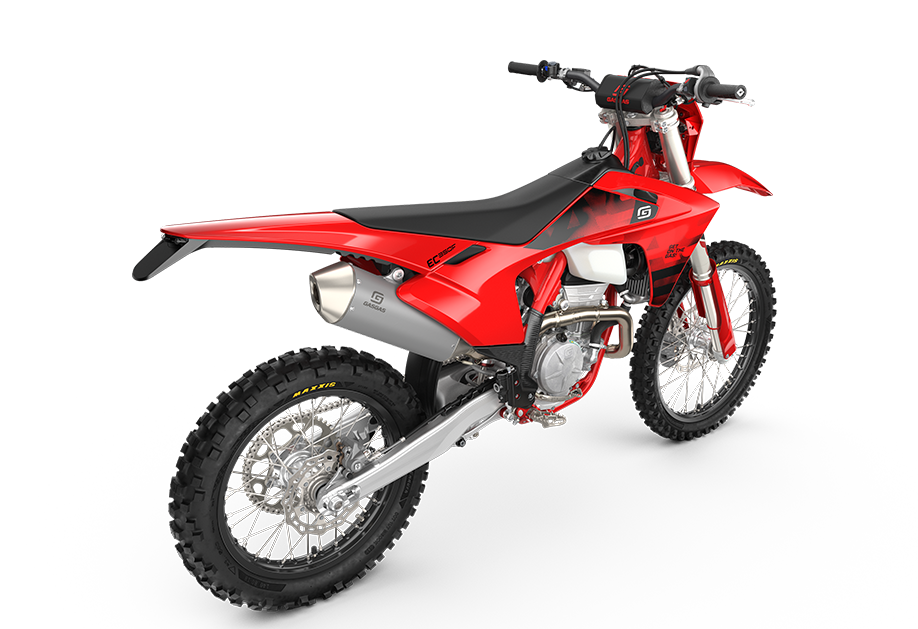

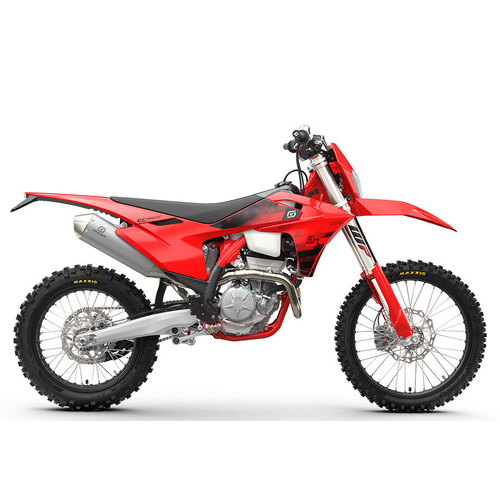

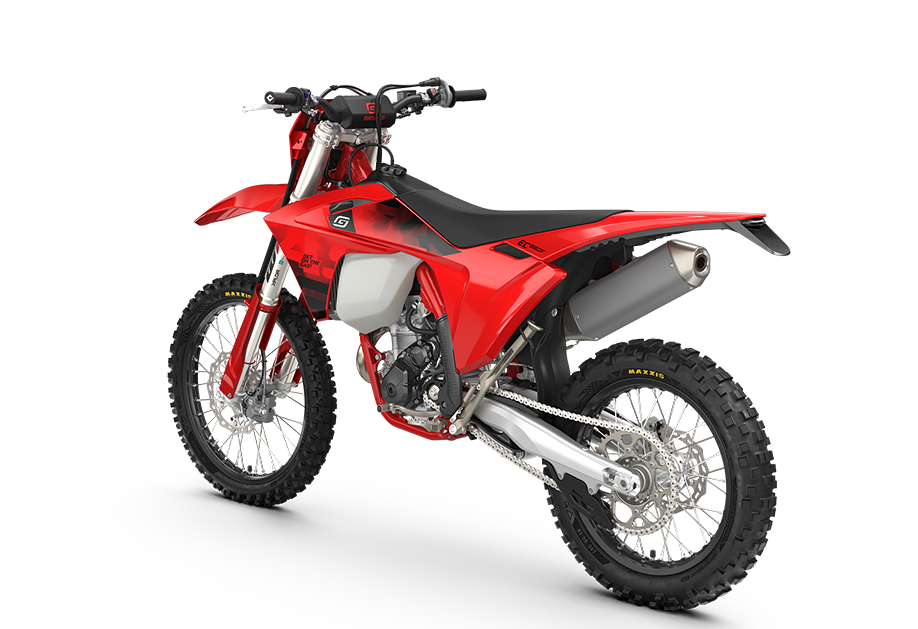

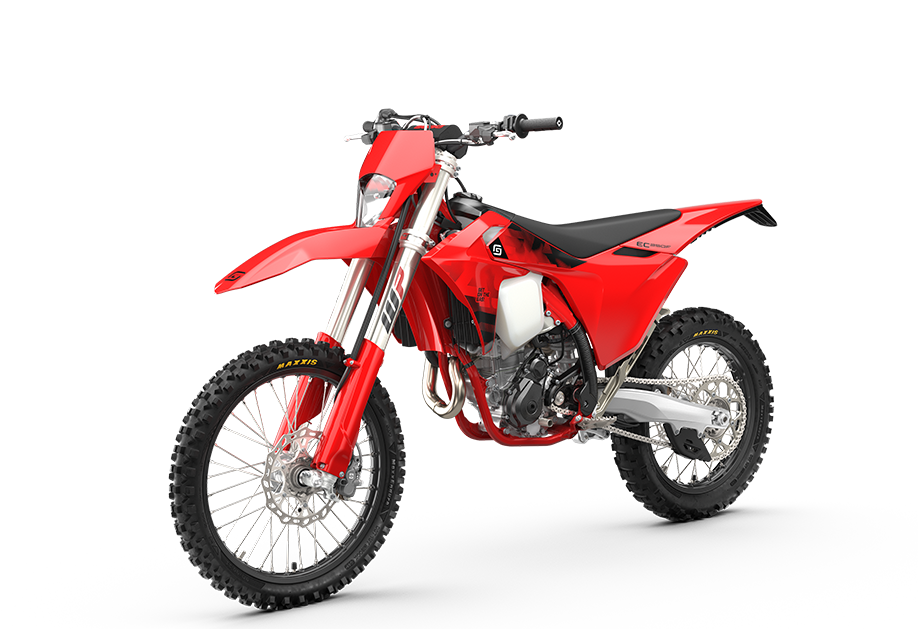

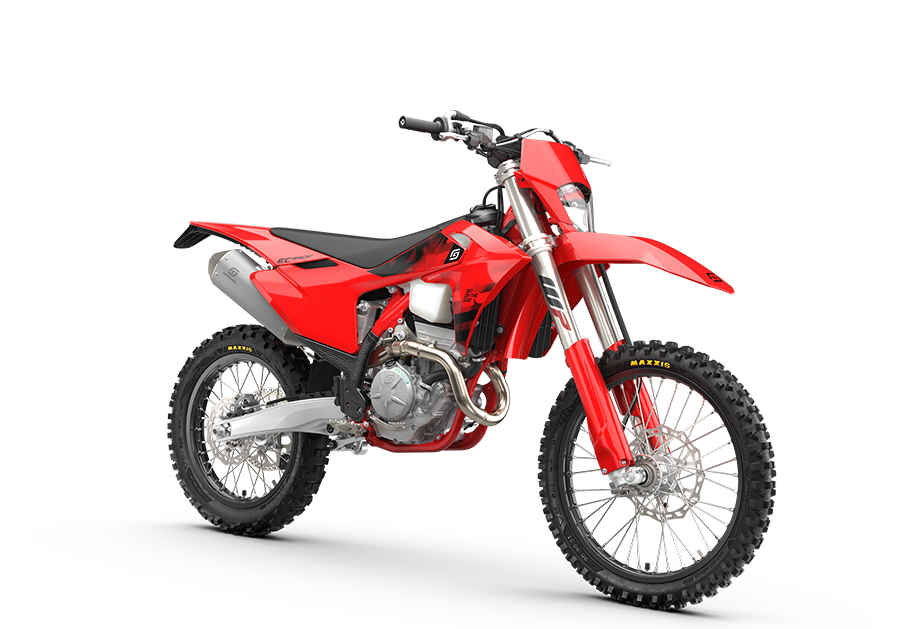

Versatile, powerful, and seriously fun to ride - the EC 350F is built to handle everything from tight technical trails to fast, flowing singletrack. With a smooth and responsive 4-stroke motor, agile chassis, and rider-friendly electronics, it's the perfect choice for those who want one bike that does it all. Add in adjustable WP suspension, a 6-speed transmission, and a fresh look with black rims and handlebar, and you've got a mid-size enduro machine that's ready for anything.

Engine

  • Primary drive24:72
  • Transmission 6-speed
  • Battery capacity 2 Ah
  • Cooling Liquid cooled
  • Secondary gear ratio14:46
  • Starter Electric starter
  • Stroke57.5 mm
  • Bore88 mm
  • Clutch DDS wet multi-disc clutch, Braktec hydraulics
  • Compression ratio13.7
  • Displacement349.7 cm³
  • EMS Keihin EMS
  • Design 1-cylinder, 4-stroke engine
  • Fuel-mixture generation Keihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel)110.2 kg
  • Tank capacity (approx.)9 l
  • Wheelbase1489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Front brake Disc brake
  • Rear brake Disc brake
  • Chain 520 X-Ring
  • Frame design Central double-cradle-type 25CrMo4 steel
  • Front suspension WP XPLOR-USD, Ø 48 mm
  • Ground clearance343 mm
  • Handlebar Neken, aluminium Ø 28/22 mm
  • Rear suspension WP XACT Monoshock with linkage
  • Seat height956 mm
  • Silencer Aluminium
  • Steering head angle63.9 °
  • Rear subframe design Aluminium
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • Tyre dimensions (front/rear)90/90; 140/80
  • Wheels2.6 x 21"; 2.15 x 18"
  • Wheelbase1489 ± 10 mm
