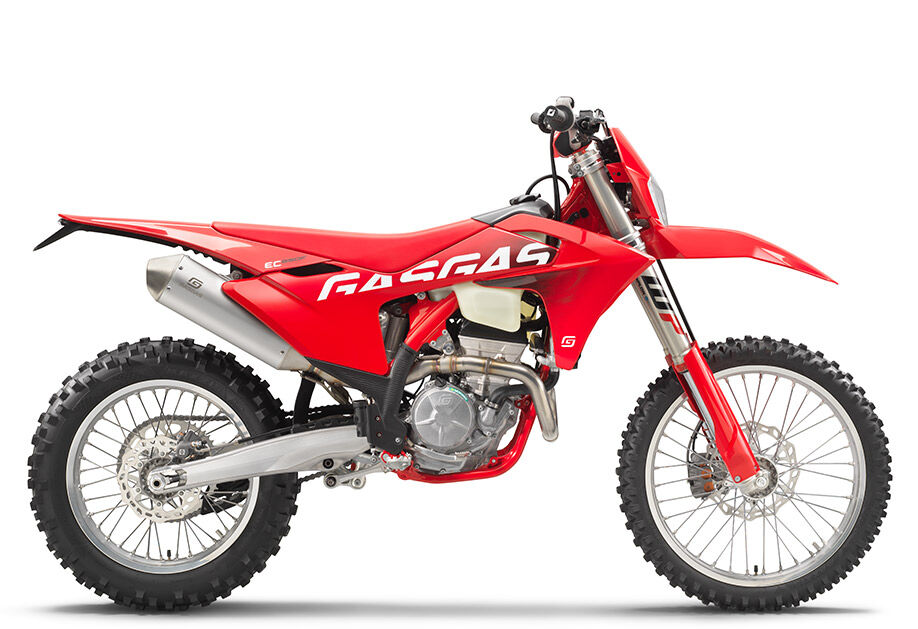

Small and mighty! It's our smallest 4-stroke but make no mistake, in the right hands, it's a world beater... just ask EnduroGP World Champ, Andrea Verona! Built using much of the tech found on Verona's very own race bike, the EC 250F really is a stunner with its vibrant red bodywork and competition-focused components creating a bike that truly excels when ridden hard. Stable at high speed and nimble in the tight and technical going, the EC 250F is as good as it gets when it comes to serious offroad fun.

Engine

  • Transmission 6-speed
  • Battery capacity 2 Ah
  • Cooling Liquid cooled
  • Starter Electric starter
  • Stroke 48.5 mm
  • Bore 81 mm
  • Clutch DDS wet multi-disc clutch, Braktec hydraulics
  • Compression ratio 14.4
  • Displacement 249.9 cm³
  • EMS Keihin EMS
  • Design 1-cylinder, 4-stroke engine
  • Fuel-mixture generation Keihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel) 109.5 kg
  • Tank capacity (approx.) 9.0 l
  • Wheelbase 1489 mm
  • Front brake disc diameter 260 mm
  • Rear brake disc diameter 220 mm
  • Front brake Disc brake
  • Rear brake Disc brake
  • Chain 520 X-Ring
  • Frame design Central double-cradle-type 25CrMo4 steel
  • Front suspension WP XPLOR-USD, Ø 48 mm
  • Ground clearance 354 mm
  • Handlebar Neken, aluminium Ø 28/22 mm
  • Rear suspension WP XACT Monoshock with linkage
  • Seat height 956 mm
  • Silencer Aluminium
  • Steering head angle 63.9 °
  • Rear subframe design Aluminium
  • Suspension travel (front) 300 mm
  • Suspension travel (rear) 300 mm
  • Wheels Spoked wheels with aluminium rims
