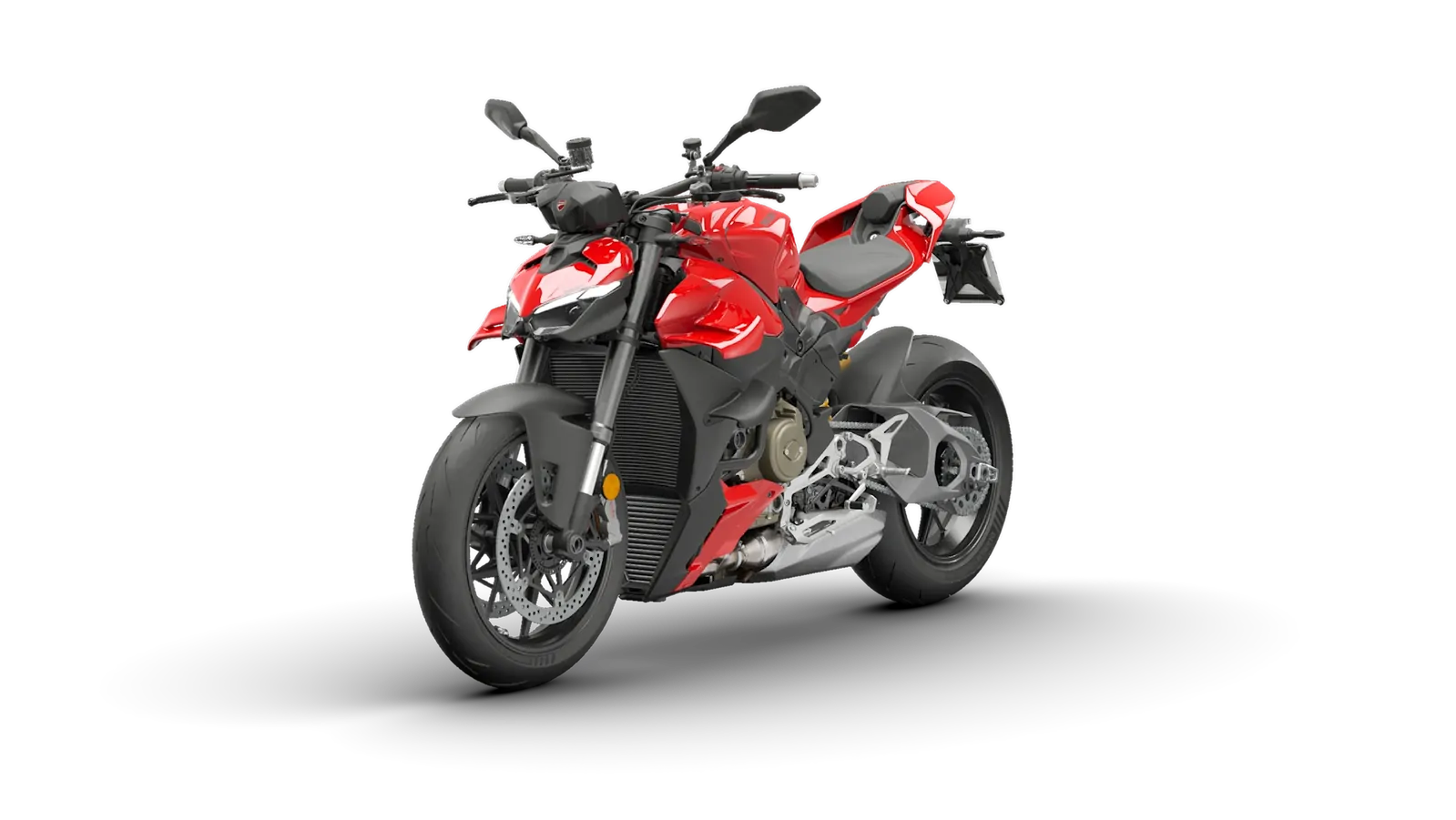

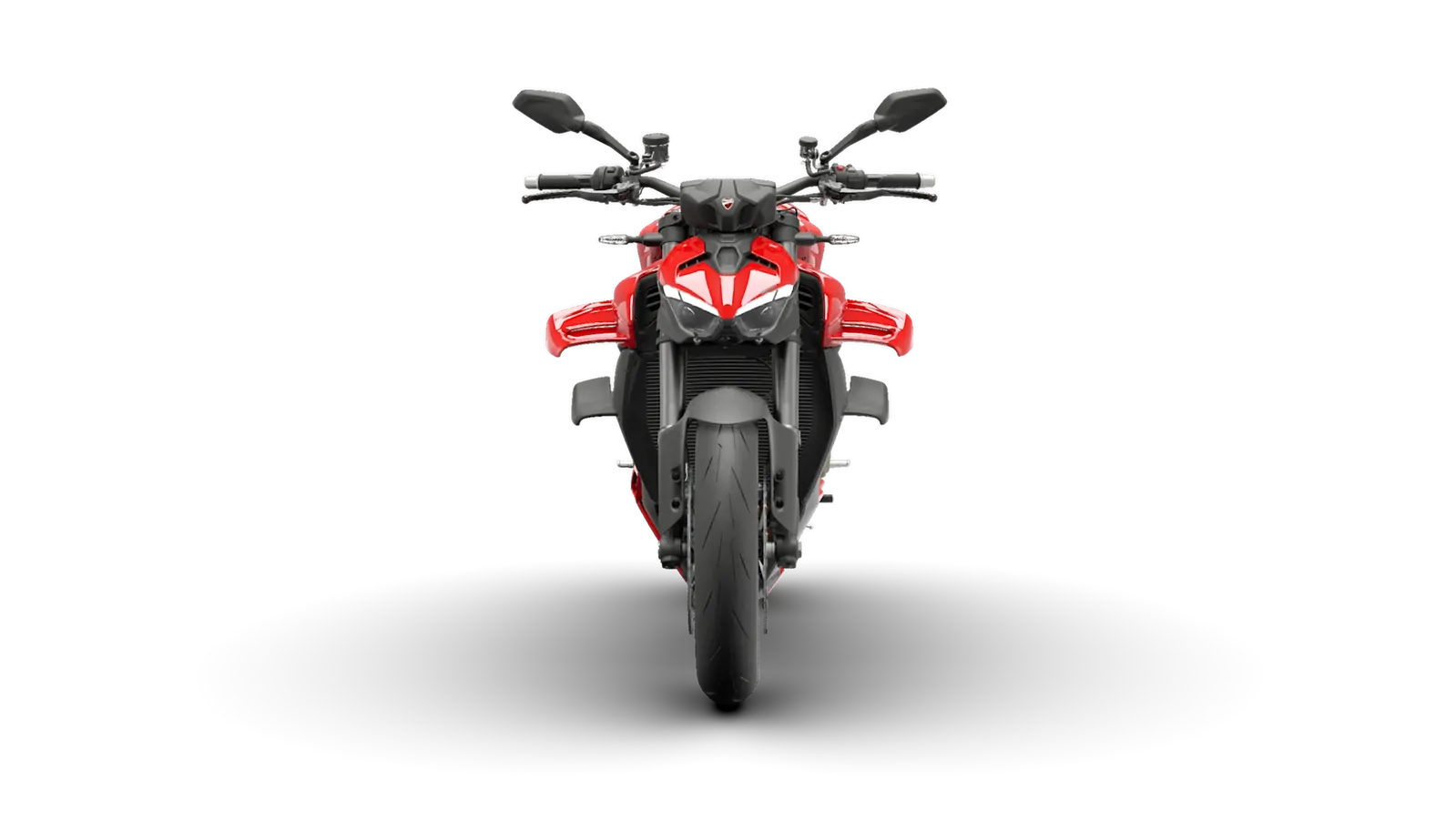

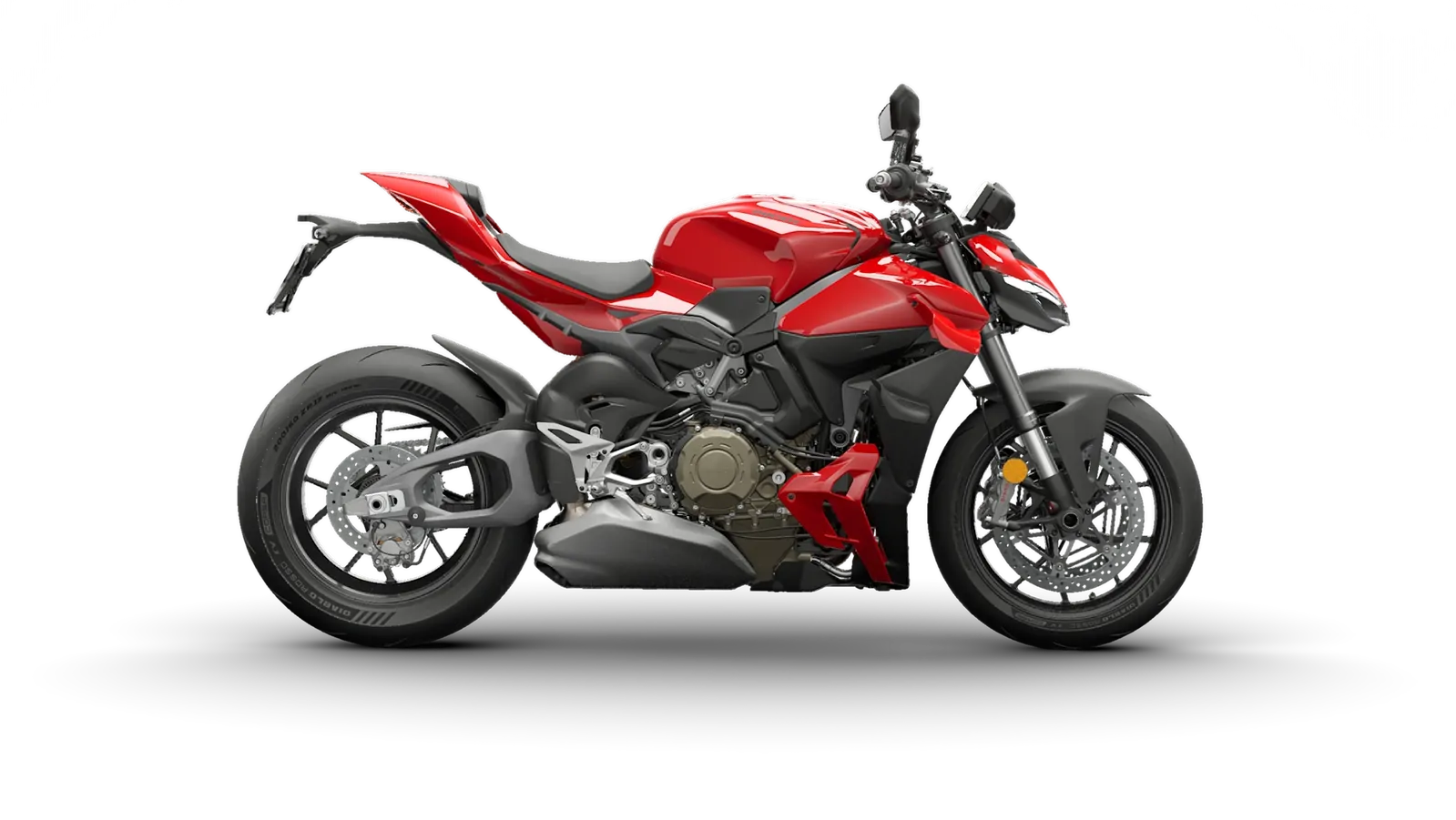

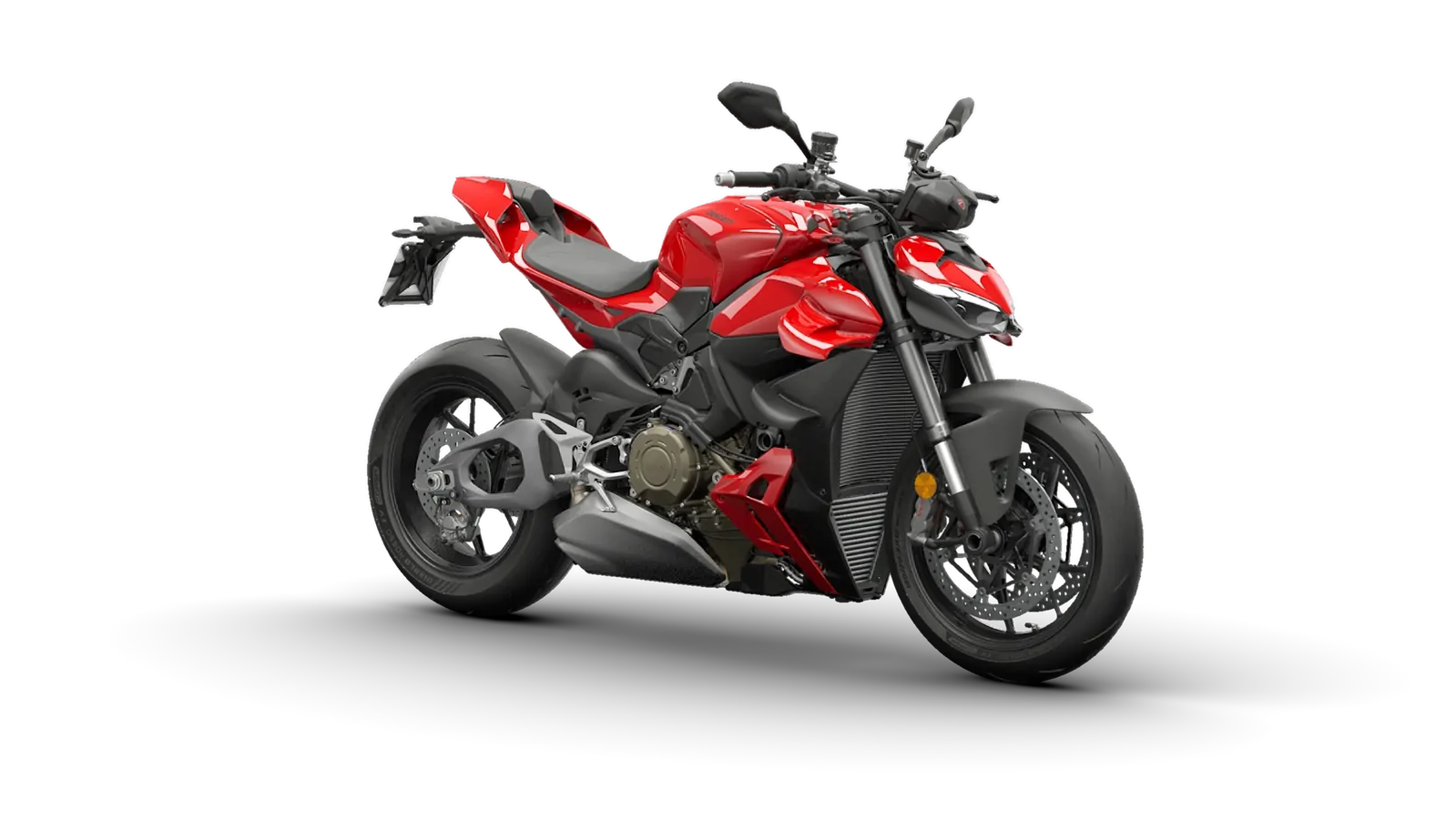

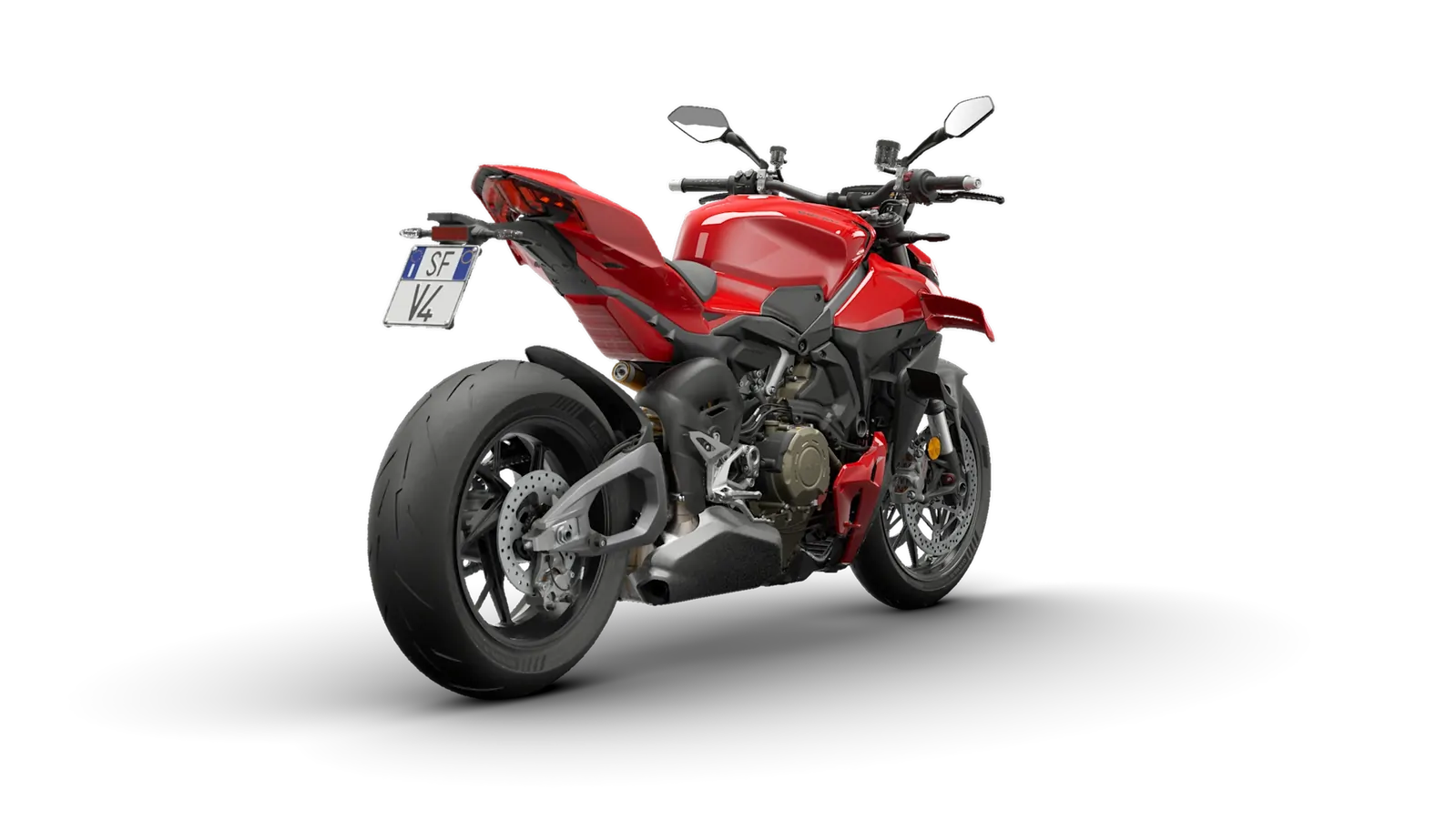

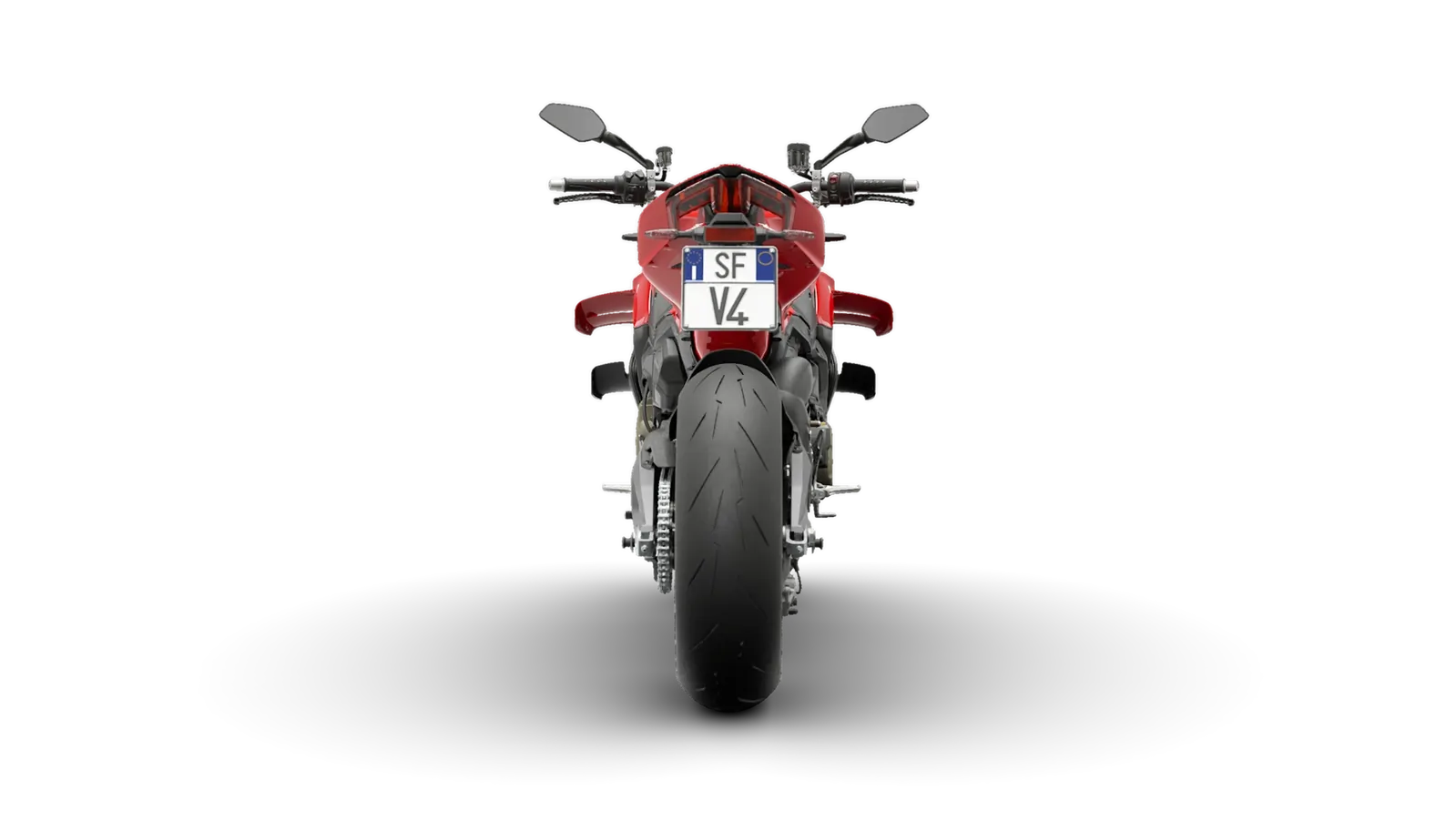

As never before, the new Streetfighter V4 is the new Panigale V4 stripped of its fairings, sharing also the same Desmosedici Stradale engine version. A magical combination that blends new design solutions, aerodynamics, ergonomics, chassis and electronics.

Type

Desmosedici Stradale 90° V4, counter-rotating crankshaft, Desmodromic timing, 4 valves per cylinder, liquid-cooled

Displacement

1,103 cc

Bore x Stroke

81 x 53.5 mm

Compression Ratio

14.0:1

Power

157.4 kW (214 hp) @ 13,500 rpm

Torque

120.0 Nm (88.5 lb-ft) @ 11,250 rpm

Fuel Injection

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system

Exhaust

4-2-1-2 system

Gearbox

6 speed with Ducati Quick Shift (DQS) up/down 2.0

Primary drive

Straight cut gears; Ratio 1.80:1

Ratio

1=38/14 2=36/17 3=33/19 4=32/21 5=30/22 6=30/24

Final drive

Chain 520; Front sprocket 15; Rear sprocket 42

Clutch

Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder.

Frame

Aluminium alloy "Front Frame" with optimised stiffnesses

Front suspension

Fully adjustable Showa BPF fork, 43 mm chromed inner tubes

Front Wheel

5-spokes light alloy 3.50" x 17"

Front Tyre

Pirelli Diablo Rosso IV Corsa 120/70 ZR17

Rear suspension

Fully adjustable Sachs unit. Aluminium Hollow Symmetrical Swingarm

Rear Wheel

5-spokes light alloy 6.00” x 17”

Rear Tyre

Pirelli Diablo Rosso IV Corsa 200/60 ZR17

Wheel Travel (Front/Rear)

125 mm (4.9 in) - 130 mm (5.1 in)

Front Brake

2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Hypure® 4-piston calipers with Race eCBS. Self bleeding master cylinder.

Rear Brake

245 mm disc, 2-piston caliper with Race eCBS

Instrumentation

Digital unit with 6,9" TFT display and Optical Bonding, 1,280 x 480 px resolution, 8:3 aspect ratio

Wet weight no fuel

191 kg (421 lb)

Seat Height

845 mm (33.3 in)

Wheelbase

1,496 mm (59 in)

Rake

24,5°

Trail

99 mm (3.9)

Fuel Tank Capacity

16 l (4.2 US-gallons)

Number of Seats

Single seat
Two seats, if passenger seat kit accessory is mounted

Safety Equipment

Riding Modes, Power Modes, Race eCBS, Ducati Vehicle Observer (DVO), Ducati Traction Control (DTC) DVO, Ducati Wheelie Control (DWC) DVO, Ducati Slide Control (DSC), Engine Brake Control (EBC), Ducati Brake Light EVO (DBL)

Standard Equipment

Ducati Power Launch (DPL) DVO, Ducati Quick Shift (DQS) up/down 2.0, Full LED headlights with Daytime Running Light (DRL), Sachs steering damper, Quick adjustment buttons, Pit Limiter, Auto-off indicators, Coming Home

Ready for

Ducati Data Logger (DDL), Cruise Control, Tyre Pressure Monitoring System (TPMS), USB port*, Ducati Multimedia System (DMS)*, "Turn By Turn" navigator*
*: Please refer to your local Dealer for availability

Warranty

24 months unlimited mileage

Annual Service

12 months

Oil Service

12,000 km (7,500 miles) / 24 months

Valve Clearance Check

24,000 km (15,000 miles)
