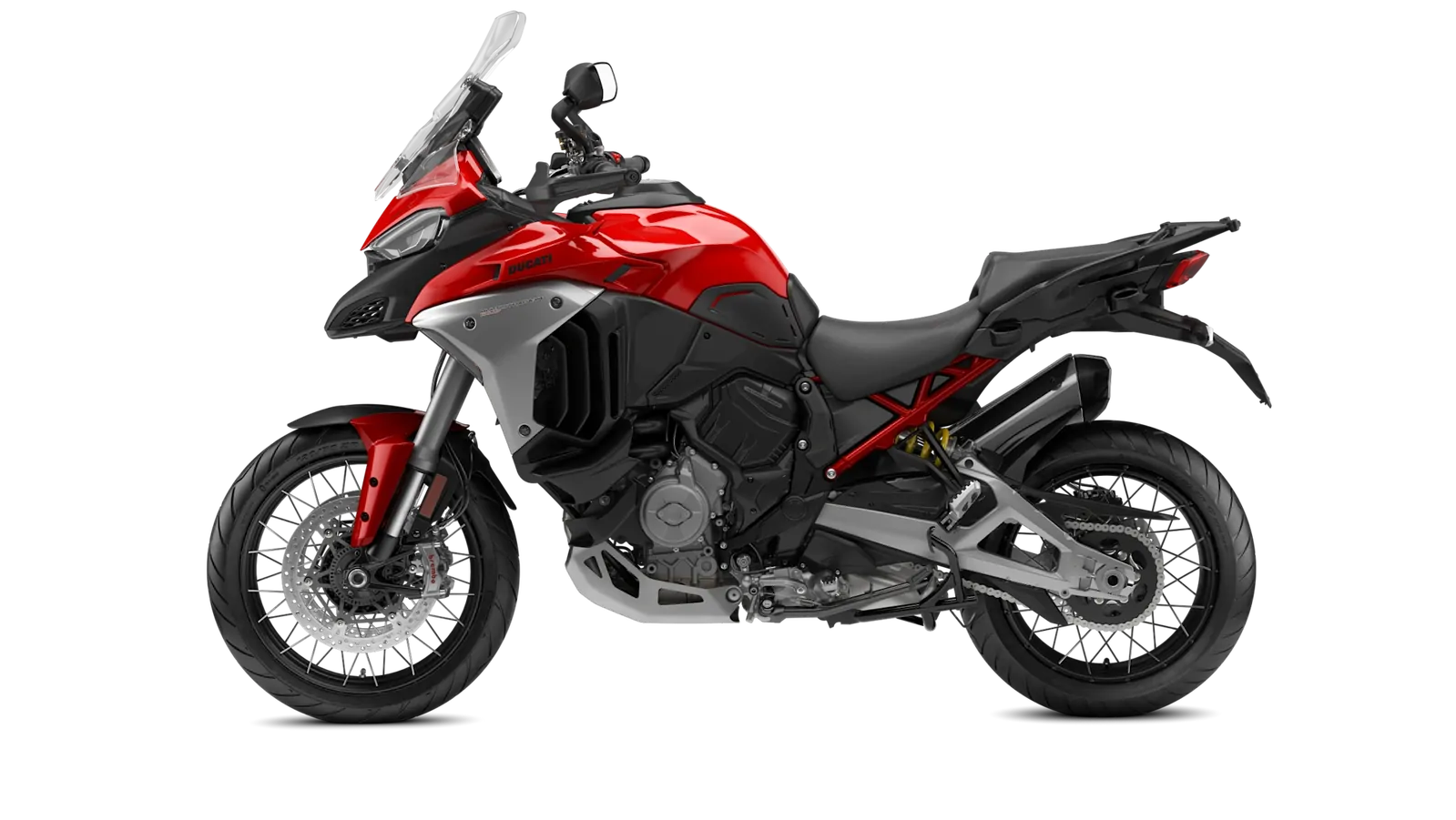

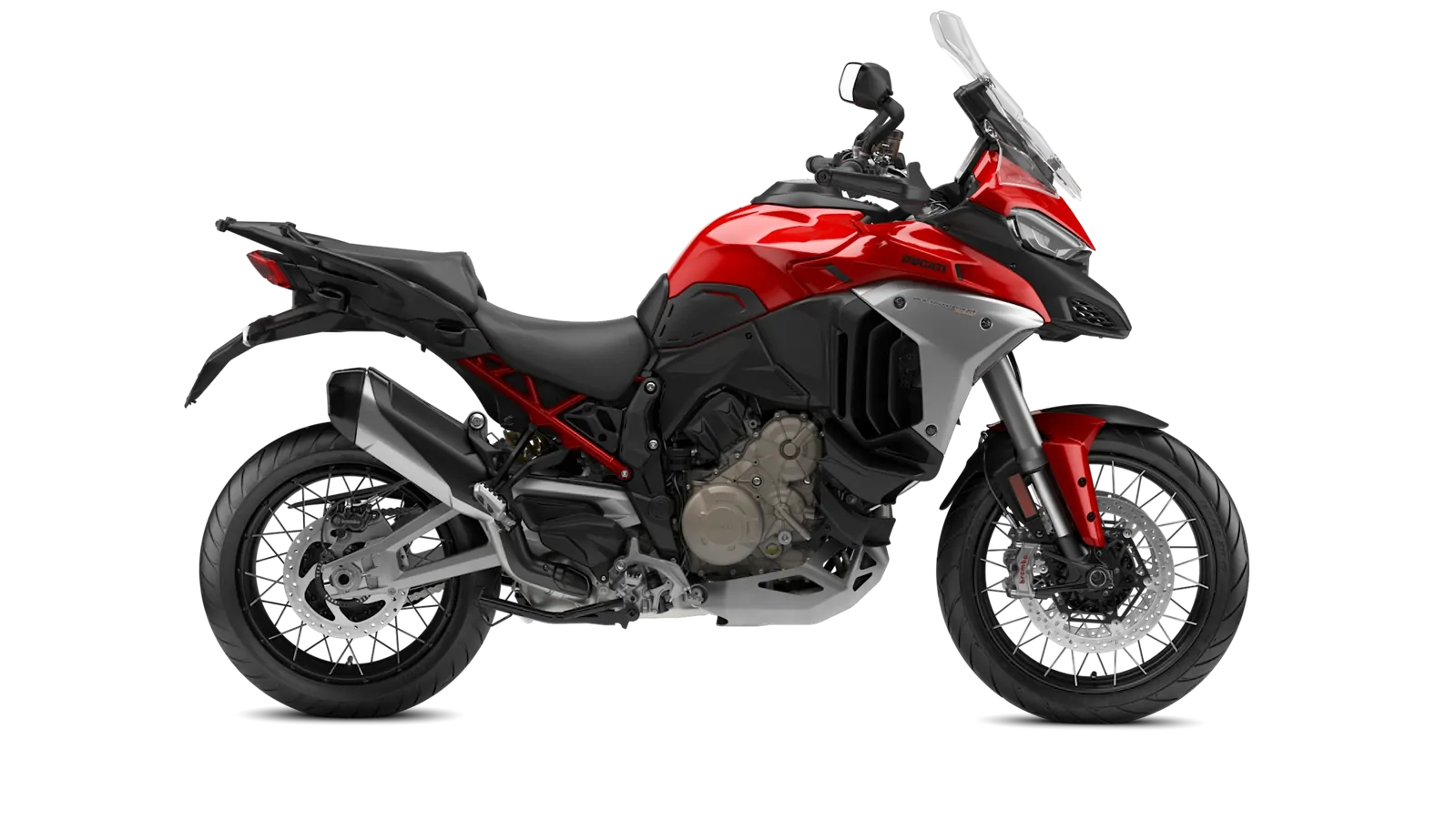

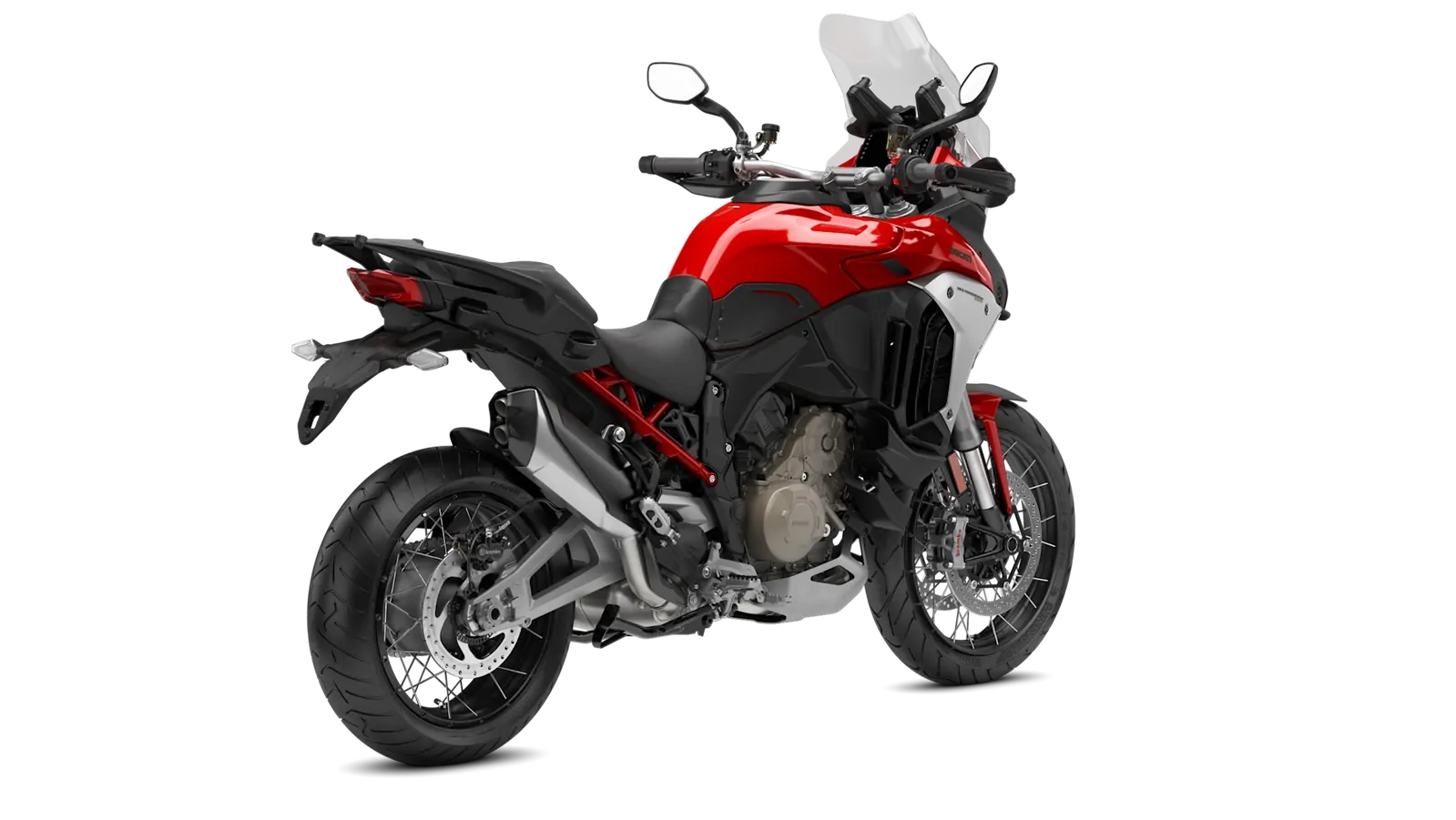

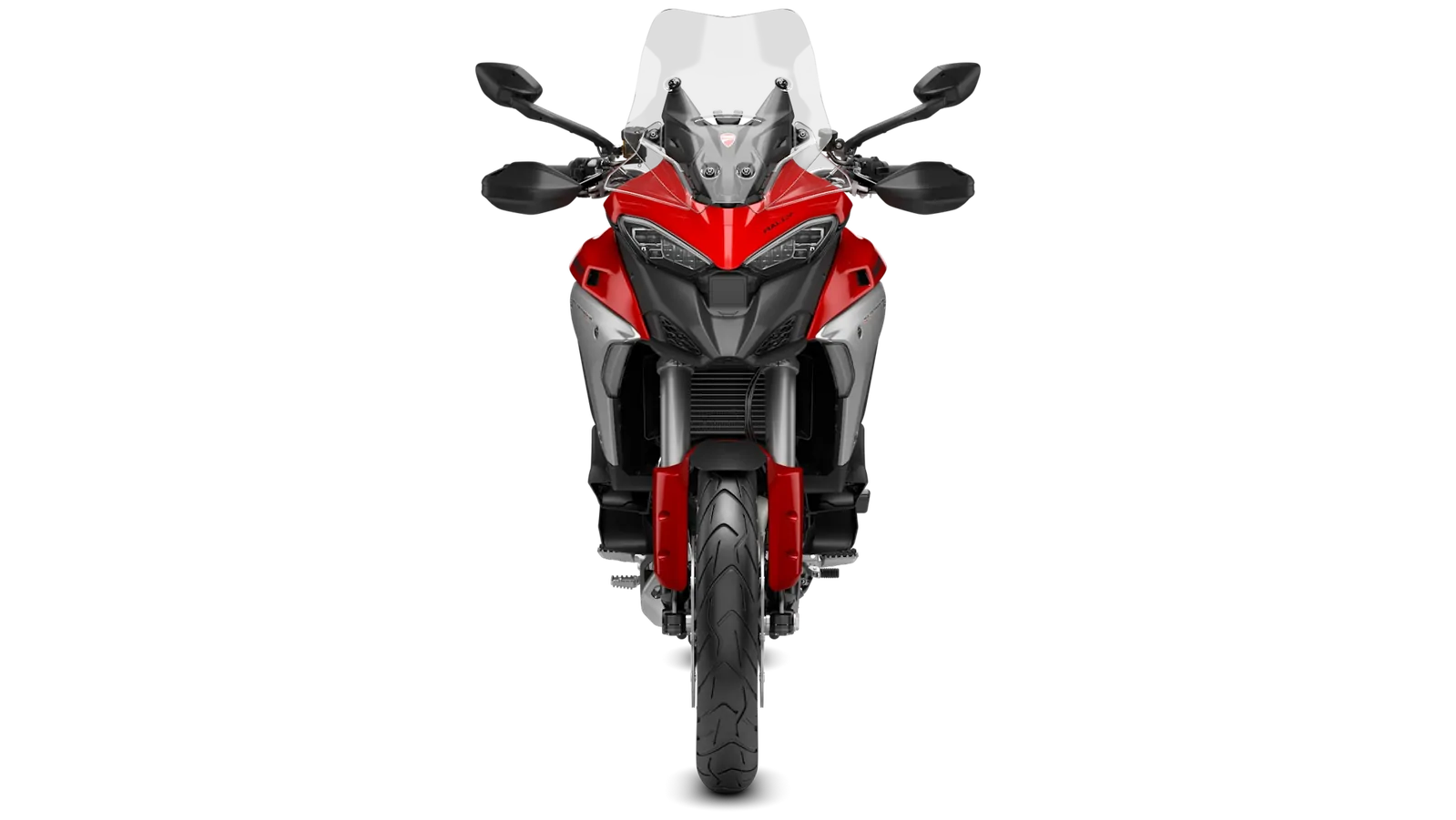

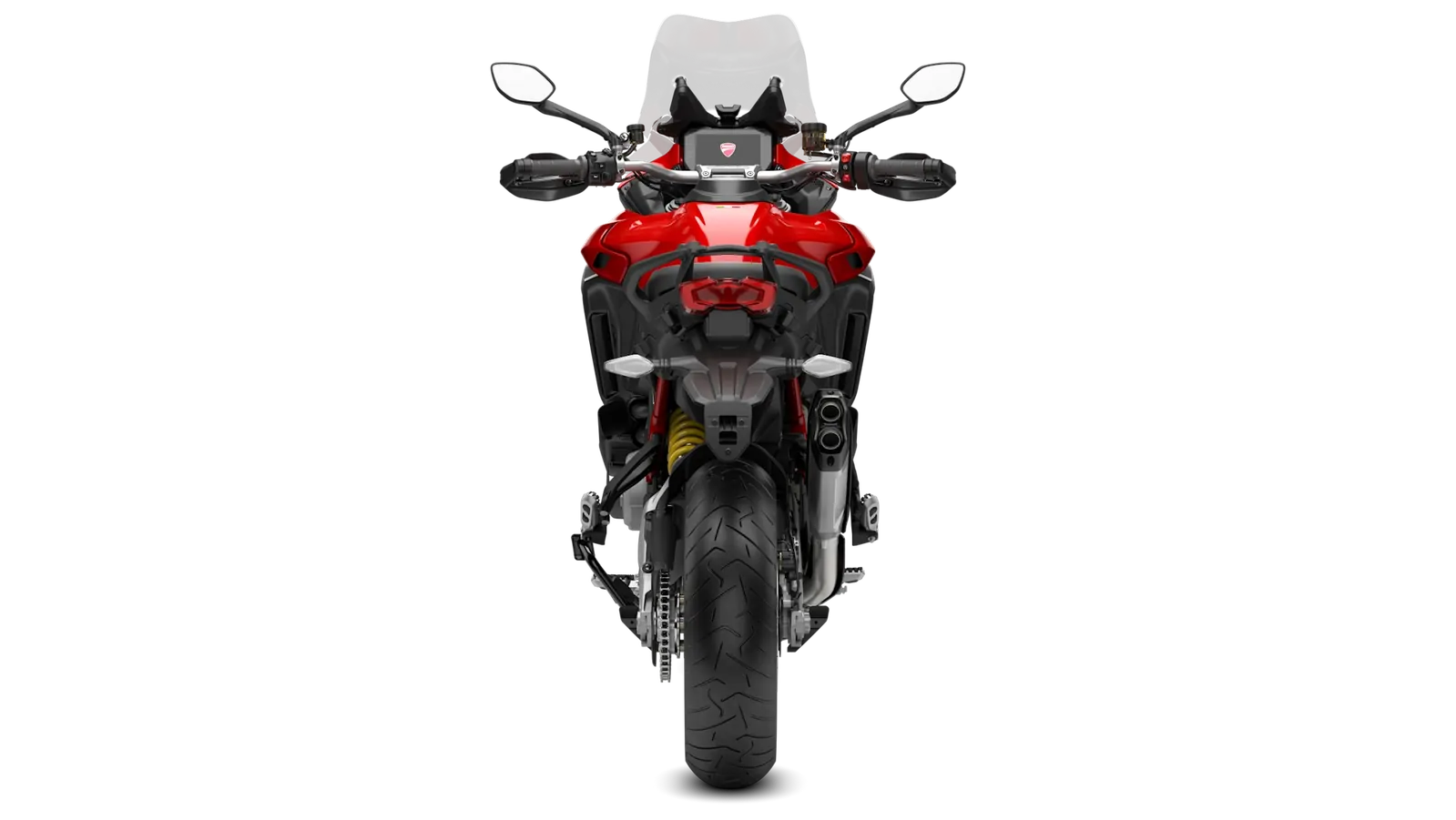

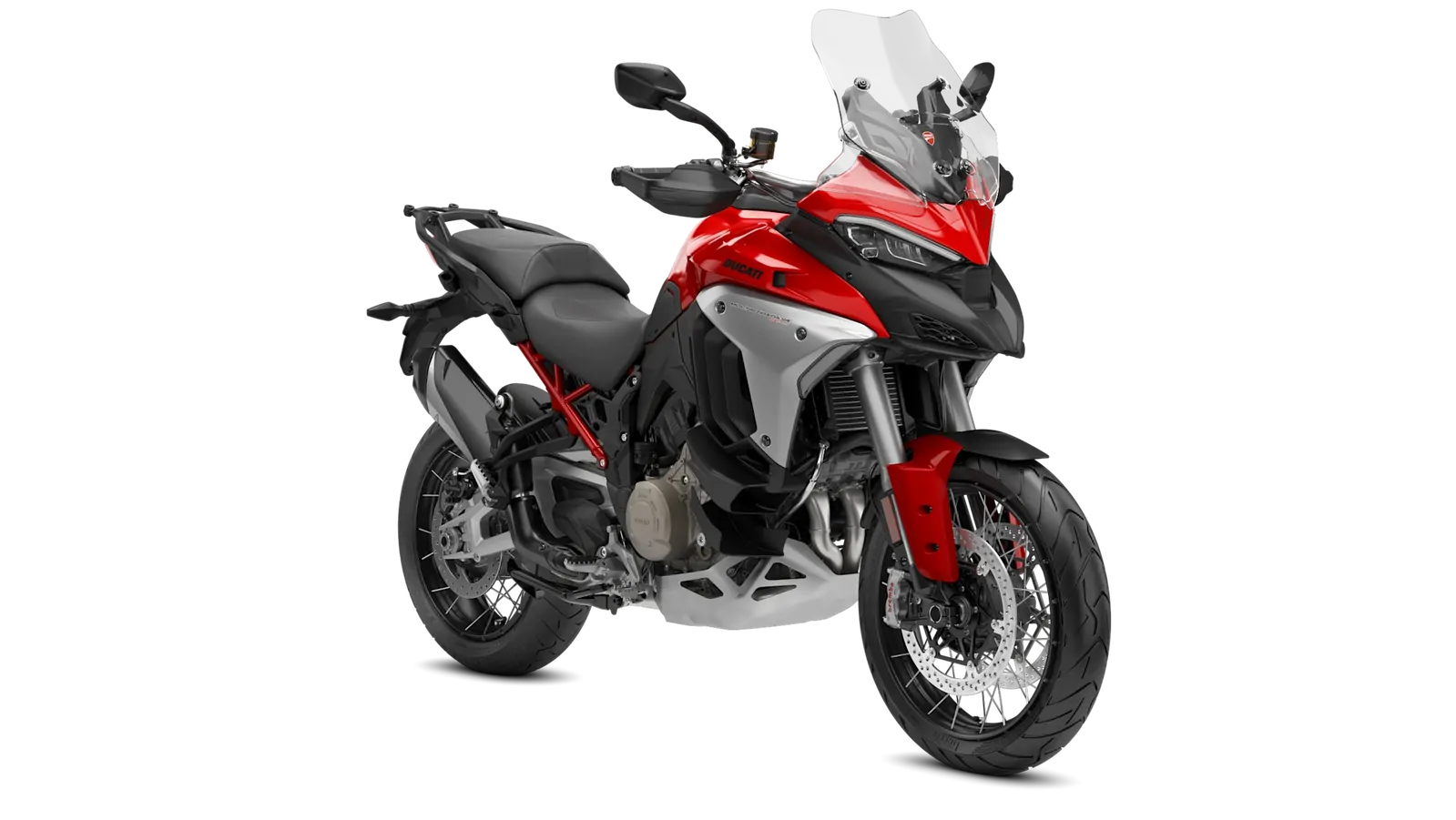

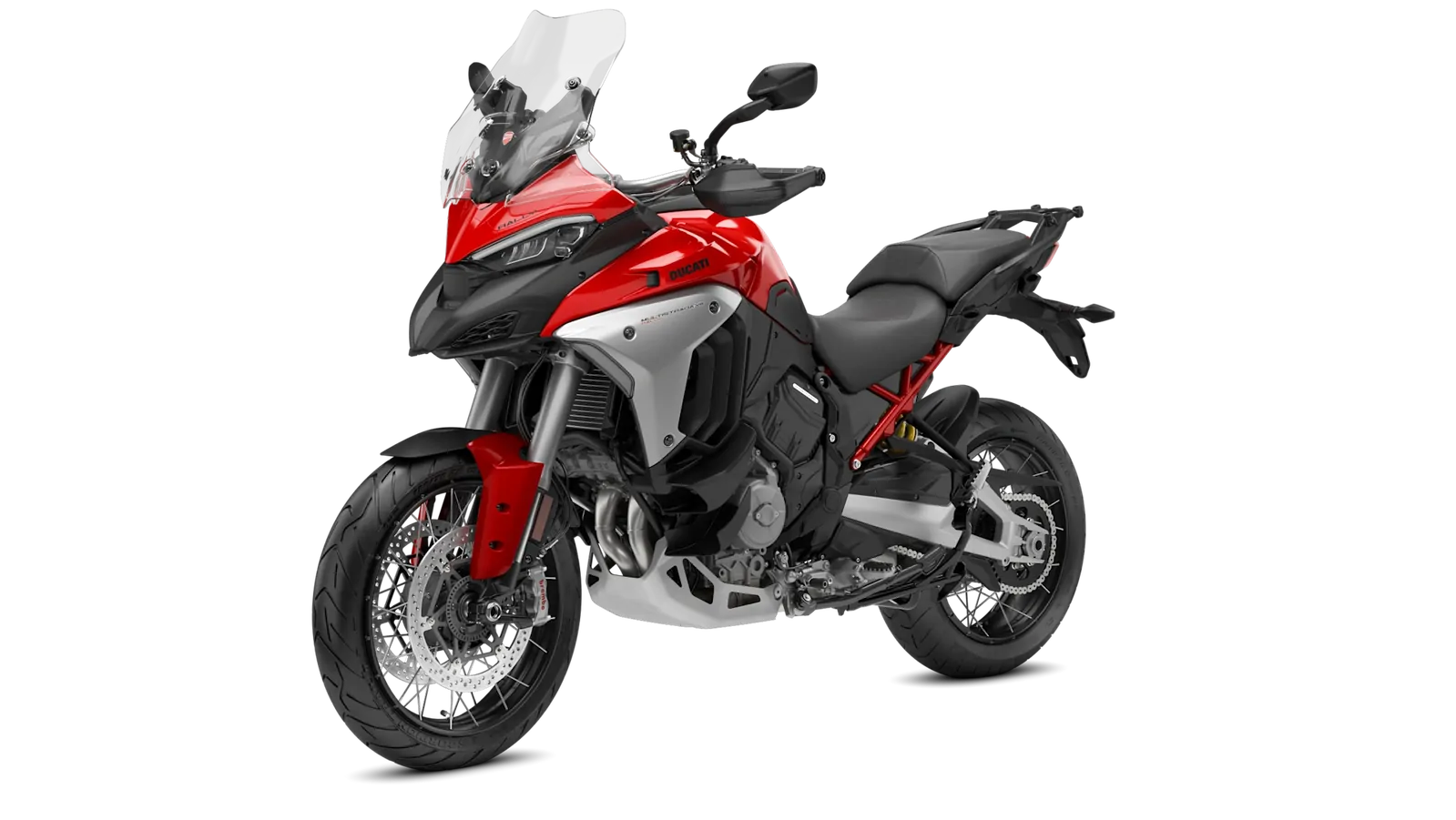

Within the Multistrada range, the Multistrada V4 Rally stands out as the model best equipped to take you anywhere your sense of adventure might lead. Ducati has come up with a series of details to ensure epic adventures, in total comfort.

Ducati V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled

Displacement

1,158 cc (71 cu in)

Bore x Stroke

83 x 53,3 mm

Compression Ratio

14:1

Power

125 kW (170 hp) @ 10,750 rpm

Torque

121 Nm (12,3 kgm) @ 8,750 rpm

Fuel Injection

Continental electronic fuel injection system, Øeq 46mm equivalent elliptical throttle bodies with Ride-by-Wire system

Exhaust

Stainless steel muffler, double catalytic converter and 4 lambda probes

Gearbox

6 speed with Ducati Quick Shift up/down

Primary drive

Straight cut gears; Ratio 1.8:1

Ratio

1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25

Final drive

Chain, Front sprocket z16; Rear sprocket Z42

Clutch

Multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run

Frame

Aluminium monocoque frame

Front suspension

Ø50 mm fully adjustable usd fork with internal stroke sensor. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension EVO (DSS)

Front Wheel

Spoked wheel 3" x 19"

Front Tyre

Pirelli Scopion Trail II 120/70 R19

Rear suspension

Cantilever suspension with fully adjustable monoshock. Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS). Aluminium double-sided swingarm

Rear Wheel

Spoked wheel 4,5" x 17"

Rear Tyre

Pirelli Scorpion Trail II 170/60 R17

Wheel Travel (Front/Rear)

200 mm - 200 mm (7,9 in - 7,9 in)

Front Brake

2 x 330 mm semi-floating discs, radially mounted Brembo Stylema 4-piston calipers, 2-pad, radial master cylinder with cornering ABS as standard equipment

Rear Brake

265 mm disc, 2-piston floating caliper, with cornering ABS as standard equipment

Instrumentation

6,5" TFT colour dislay with Ducati Connect and full-map navi system

Wet weight no fuel

238 kg (525 lb)

Seat Height

Adjustable 870 - 890 mm (34.3 - 35.0 in)
885 mm - 905 mm (34.9 in - 35.6 in) with high seat accessory
855 mm - 875 mm (33.7 in - 34.5 in) with low seat A accessory
825 mm - 845 mm (32.5 in - 33.3 in) with low seat B accessory
805 mm - 825 mm (31.7 in - 32.5 in) with low seat B + low suspension kit accessory

Wheelbase

1,572 mm (61,9 in)

Rake

24,7°

Trail

105,5 mm (4,15 in)

Fuel Tank Capacity

30 l (7,9 US gal)

Number of Seats

2

Safety Equipment

Riding Modes, Power Modes, cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Ducati Brake Light, Ducati Cornering Light, Vehicle Hold Control

Standard Equipment

Ducati Skyhook Suspension EVO, Ducati Quick Shift, Cruise control, Hands-Free, Backlit handlebar switches, 6,5" TFT colour display with Ducati Connect and full-map navigation system, Full LED headlight with DRL, Engine Brake Control (EBC), Extended Cylinder Deactivation (ECD)

Warranty

24 months, Unlimited mileage.

Maintenance Service Intervals

15,000 km (9,000 miles) / 24 months

Valve Clearance Check

60,000 km (36,000 miles)
