Dare to be Bold

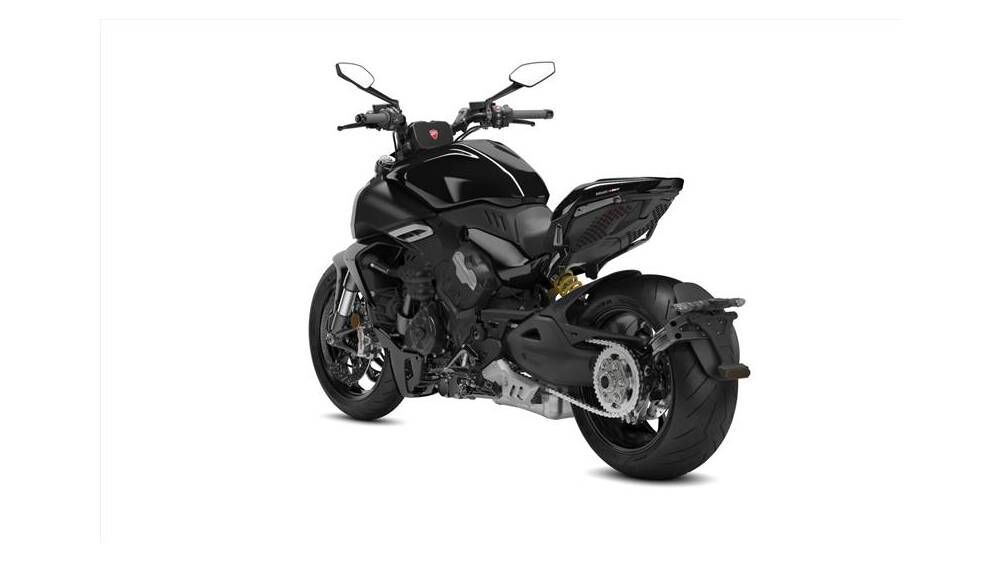

Muscular, sporty, exaggerated and elegant at the same time, able to magnetize attention in any context, Diavel V4 synthesizes seemingly distant technical, dynamic and stylistic features, such as those of sport nakeds and muscle cruisers

Engine

Engine Type V4 Granturismo, V4 - 90 deg., 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order
Displacement 1,158 cc (71 cu. in.)
Bore and Stroke 83 x 53.5 mm
Cooling Liquid
Compression Ratio 14.0 : 1
Fuel System Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system

Transmission

Transmission 6 speed with Ducati Quick Shift up/down
Final Drive Chain, front sprocket z16, rear sprocket z43

Chassis

Front Suspension Ø 50 mm fully adjustable usd fork
Rear Suspension Fully adjustable monoshock, aluminium single-sided swingarm
Front Brakes Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS
Rear Brakes Ø 265 mm disc, Brembo 2-piston floatinØ 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS
Front Tire Pirelli Diablo Rosso III, 120/70 ZR17
Rear Tire Pirelli Diablo Rosso III, 240/45 ZR17

Dimensions

Wheelbase 62.7 in. (1,593 mm)
Seat Height 31.1 in. (790 mm)
Rake 26 deg.
Trail 4.4 in. (112 mm)
Fuel Capacity 5.3 US gal. (20 L)
Dry Weight 465 lb. (211 kg)

General

Colors Thrilling Black
Warranty 24 months, unlimited mileage
