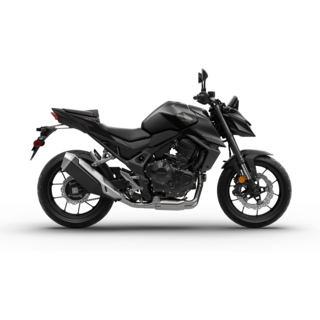

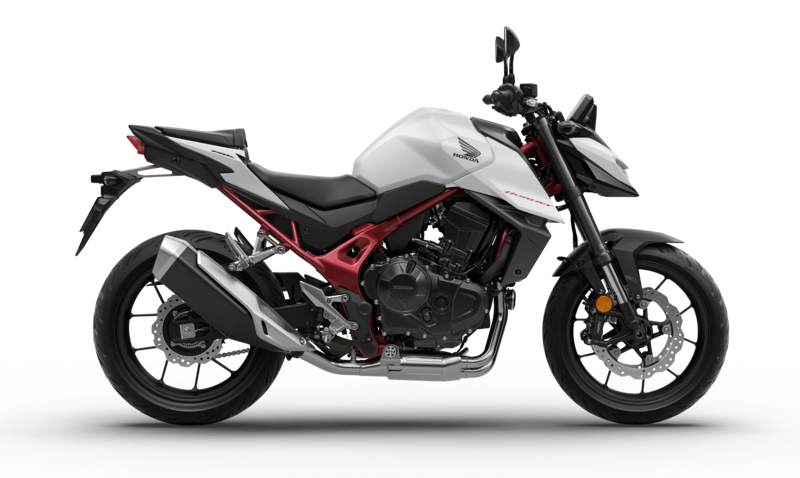

Break free from the hive with the upgraded CB750 Hornet. This new generation delivers class leading power through a lightweight chassis, perfectly tuned for sports performance. The head turning streetfighter style, combined with a redesigned, more powerful dual LED headlight, sets you apart on the road. With cutting edge looks and enhanced performance, the CB750 Hornet is ready to take flight.

Chassis
Brakes
Brakes (F) 2x 296mm discs, ABS
Brakes (R) 1x 240mm disc, ABS
Suspension
Front Adjustability n/a
Front Suspension Type 41mm inverted telescopic fork
Front Wheel Travel (mm) 130
Rear Adjustability preload
Rear Suspension Type single shock
Rear Wheel Travel (mm) 150
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 15.2
Dimensions
Wheelbase (mm) 1,420
Ground Clearance (mm) 140
Overall Height (mm) 1,085
Overall Length (mm) 2,090
Overall Width (mm) 780
Seat Height (mm) 795
Weights
Kerb Weight (kg) 192
Powertrain
Engine
Bore & Stroke (mm) 87 x 63.5
Compression Ratio 11:01
Cylinders 2
Displacement (cc) 755
Engine Type liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 8
Transmission
Transmission 6-speed
Drive Chain
Tyres And Wheels
Tyres
Tyres (F) 120/70-17
Tyres (R) 160/60-17
Warranty
Warranty 24 Months
