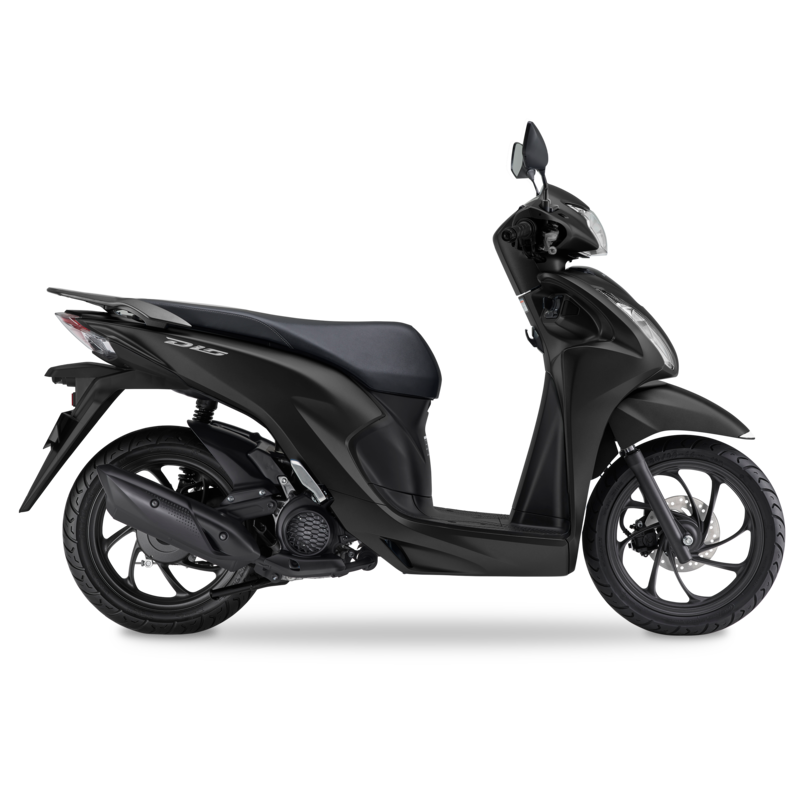

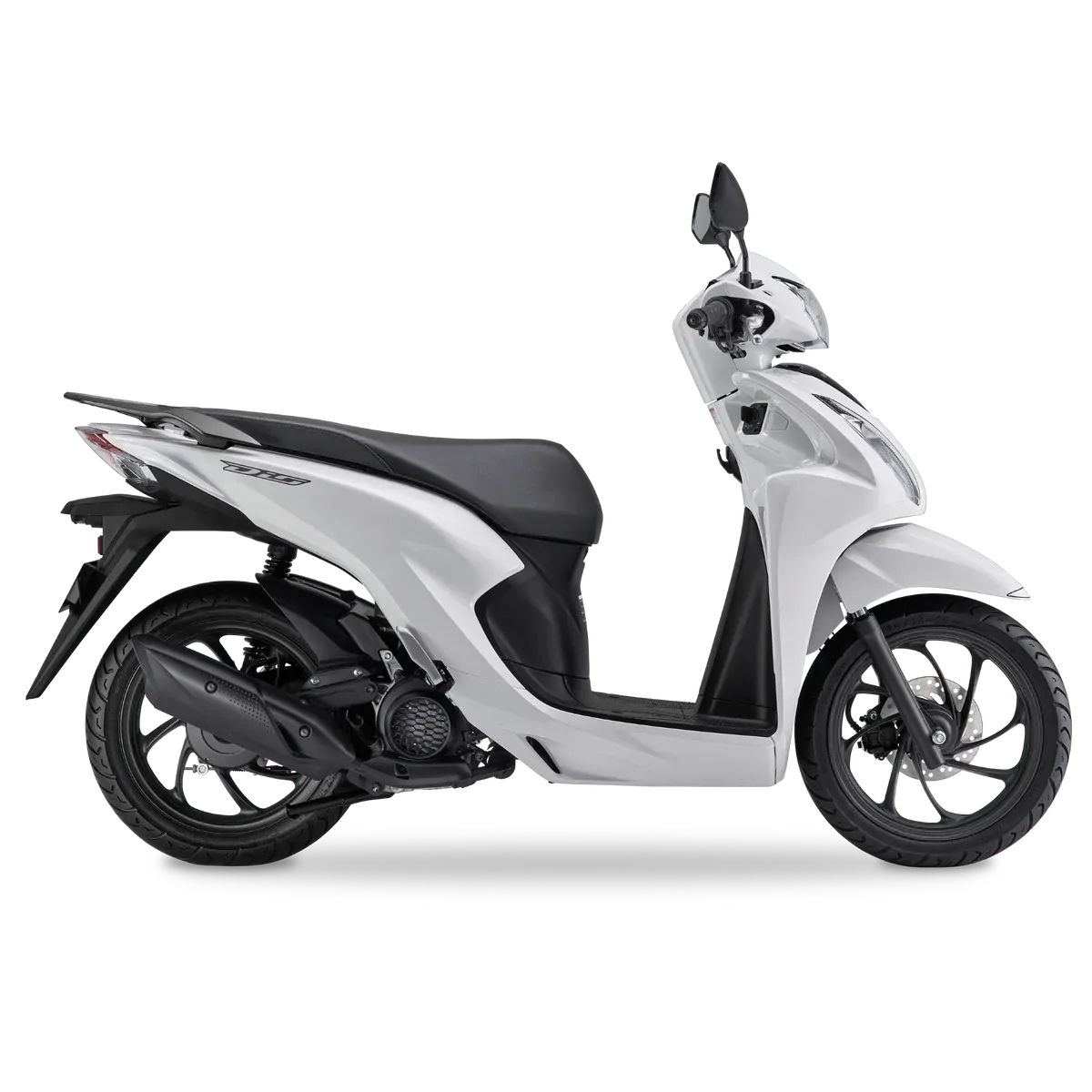

With a sleek, attractive body design and comfortable seating for two, Honda's Dio is the ideal scooter for your daily commute to work, trips to the shops or days out to the beach. Light as a feather, it has seamless acceleration that goes at the ease of a twist. Powered by a fuel efficient and reliable 109cc four-stroke engine, with PGM-FI. The Programmed Fuel-Injection engine delivers precise amounts of fuel to the engine. Idle stop also reduces the Dios fuel consumption and noise while waiting at a stop, such as an intersection. Its larger than usual wide-diameter wheels give it confident handling and with Hondas unique Combined Braking System (CBS) offer optimum stopping ability. The generous storage compartment under the seat, electric start and large 4.9 litre fuel tank add to the DIOs versatility. Night riding is no hesitation with its two-tiered headlight system.

Chassis
Brakes
Brakes (F) 1x 190mm disc
Brakes (R) Drum
Suspension
Front Adjustability -
Front Suspension Type Telescopic fork
Front Wheel Travel (mm) 81
Rear Adjustability -
Rear Suspension Type Single shock
Rear Wheel Travel (mm) 76
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 4.9
Dimensions
Wheelbase (mm) 1255
Ground Clearance (mm) 152
Overall Height (mm) 1101
Overall Length (mm) 1871
Overall Width (mm) 686
Seat Height (mm) 761
Weights
Kerb Weight (kg) 95
Powertrain
Engine
Bore & Stroke (mm) 47 x 63.1
Compression Ratio 10:1
Cylinders 1
Displacement (cc) 109
Engine Type Air-Cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 2
Transmission
Transmission CVT
Drive Belt
Tyres And Wheels
Tyres
Tyres (F) 80/90-14
Tyres (R) 90/90-14
